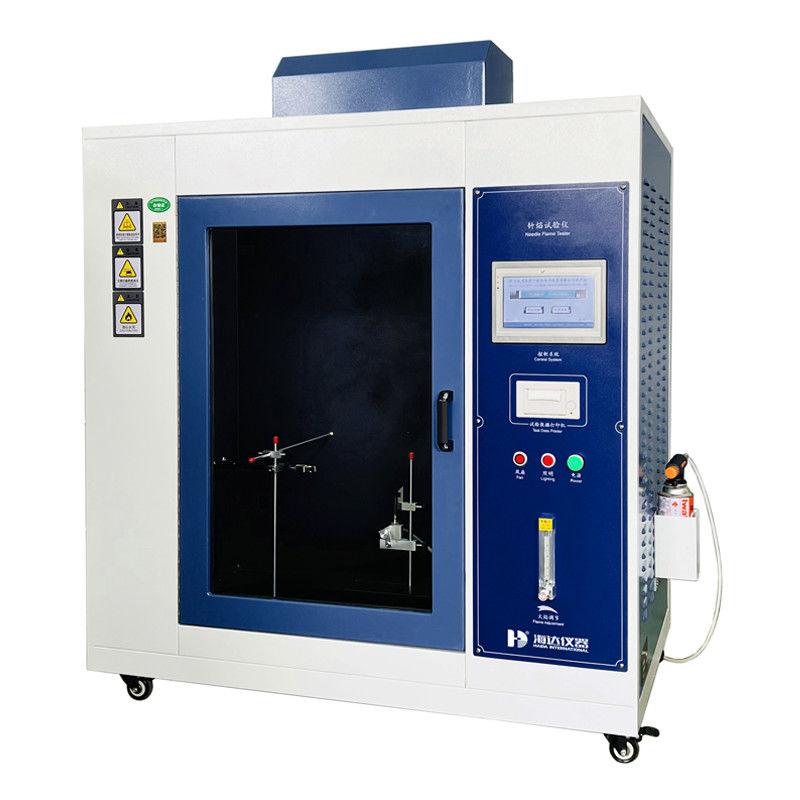

Combustion Test Equipment with Touch Screen Needle Flame Testing Machine

Large Image : Combustion Test Equipment with Touch Screen Needle Flame Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6012-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Combustion Test Equipment with Touch Screen Needle Flame Testing Machine

Description

Chamber Volume:	≥0.5 M³, With Glass Observation Door	Internal Illuminance:	<20 Lux
Fuel:	Butane Gas (≥95% Purity); No Air Ingress Into Burner Tube	Flame Height:	Adjustable: 12mm±1mm (includes Measuring Gauge)
Drive Mechanism:	Motorized	Timer:	Adjustable Range: 0-999.9 Seconds; Configurable Ignition/duration Recording
Temperature Display:	Range: 0-1000°C; Resolution: 1°C	Power Supply:	AC 220V,50Hz,1KVA
Highlight:	Combustion Test Equipment , Touch Screen Needle Flame Testing Machine , Needle Flame Testing Machine

Needle Flame Test Instrument

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards. It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).

IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065

Model	6012-HD
Chamber Volume	≥0.5 m³, with glass observation door
Internal Illuminance	<20 Lux
Fuel	Butane gas (≥95% purity); no air ingress into burner tube (user-provided)
Burner Specifications	Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height	Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature	100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included.
Temperature Display	Range: 0-1000°C; Resolution: 1°C
Timer	Adjustable: 0-99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording.
Drive Mechanism	Motorized
Key Features	Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation.
Power Supply	AC 220V, 50Hz

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
