Lab Testing Equipment High-Current Arc Resistance to Ignition Test Machine

Large Image : Lab Testing Equipment High-Current Arc Resistance to Ignition Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6009-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Lab Testing Equipment High-Current Arc Resistance to Ignition Test Machine

Description

Test Voltage:	220V-240V	Electrode Separation Speed:	254mm ±25mm Per Second
Arc Frequency:	Approximately 40 Arcs Per Minute	Power Supply:	AC 220V,50Hz,1KVA
Test Electrodes 1:	Fixed Electrode: Solid Copper Conductor (Ø3.5mm) With A 30° Beveled Tip	Test Electrodes 2:	Moving Electrode: Stainless Steel Rod (Ø3mm) With A 60° Conical Tip
Highlight:	Ignition Test Machine , Lab Testing Equipment , High Current Arc Resistance Test Machine

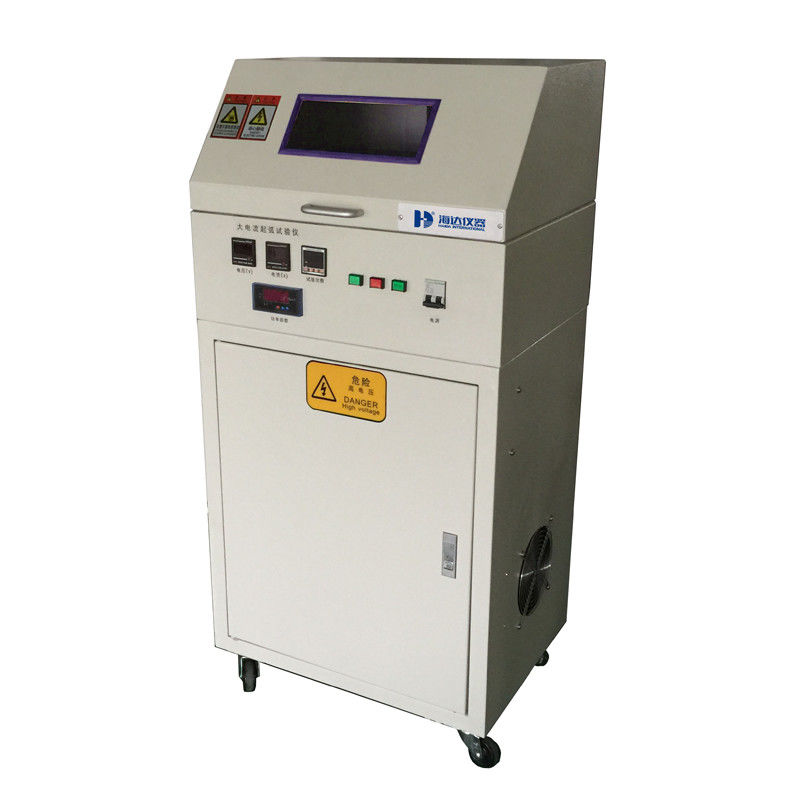

High-Current Arc Resistance to Ignition Tester

This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.

IEC 60950, GB/T 4943.

Model	6009-HD
Test Voltage	220V-240V
Electrode Separation Speed	254mm ±25mm per second
Arc Frequency	Approximately 40 arcs per minute.
Test Electrodes	Fixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
	Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
	Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm.
Short-Circuit Current	Adjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A
Key Features	Integrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion.
Power Supply	AC 220V, 50Hz
