High Voltage Tracking Resistance Test Machine Suitable for Electrical Products

Large Image : High Voltage Tracking Resistance Test Machine Suitable for Electrical Products

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6007-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

High Voltage Tracking Resistance Test Machine Suitable for Electrical Products

Description

Test Channels:	5 Independent Test Groups	Voltage Stability:	±1%
Test Voltage Range:	100V-6000V (continuously Adjustable)	Output Voltage Mode:	AC/DC (switchable)
Voltage Regulator:	Output: 0-250V Adjustable; Capacity: 5kVA	Test Duration:	6 Hours
Droplet Interval:	Adjustable: 0-99.99 Seconds/minutes/hours	Chamber Volume:	900L × 650W × 950H (mm); 0.56 M³
Power Supply:	AC 220V,50Hz,1KVA
Highlight:	High Voltage Tracking Resistance Test Machine , Electrical Products Tracking Resistance Test Machine , Electrical Products Test Machine

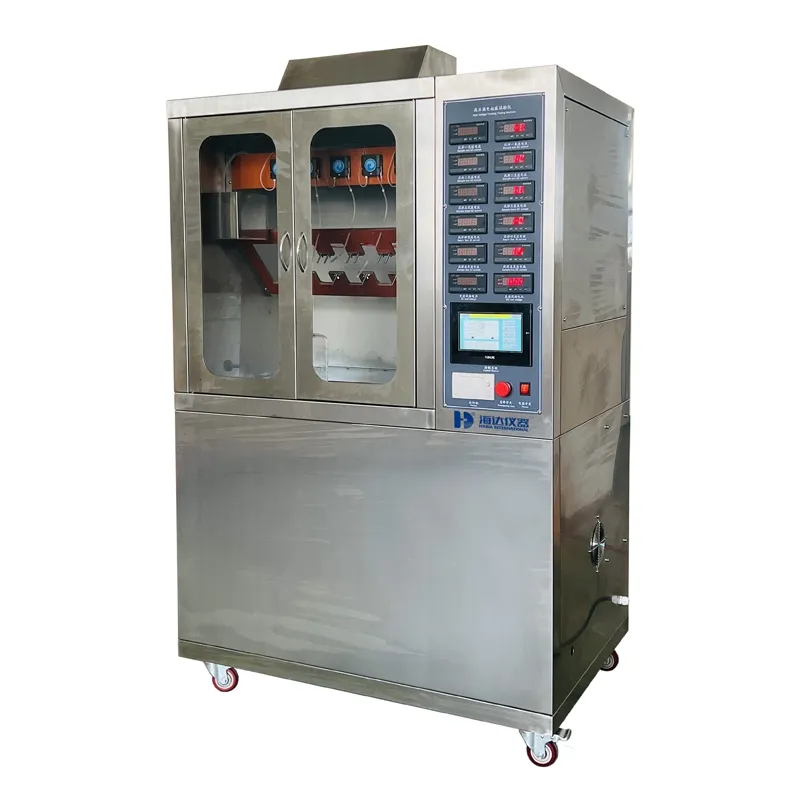

High Voltage Tracking Resistance Tester

This instrument is designed to evaluate the tracking and erosion resistance of electrical/electronic products, household appliances, and their materials. It simulates severe environmental conditions by applying liquid contaminants and inclined samples under power frequency (45Hz-65Hz) to assess the tracking and erosion resistance grades of electrical insulation materials.

The tester strictly complies with GB/T 6553-2014 and IEC 60587:2007 standards.

Model	6007-HD
Test Channels	5 independent test groups.
Voltage Stability	±1%
Test Voltage Range	100V-6000V (continuously adjustable)
Output Voltage Mode	AC/DC (switchable)
Voltage Regulator	Output: 0-250V adjustable; Capacity: 5kVA
Test Transformer	Capacity: 5kVA; Max. output voltage: AC 6000V
High-Precision Stabilizer	Output: AC 220V; Power: 6000W; Accuracy: ±1%
Electrodes	Material: 304 stainless steel, thickness: 0.5mm; Electrode spacing: 50.0mm ±0.1mm
Overcurrent Protection	Trips at ≥60mA for 2 seconds, triggering an audible alarm (reset via voltage stop).
Tracking Criteria	Per GB/T 6553-2014 Clause 4.1.2: Voltage applied (2.5kV/3.5kV/4.5kV) with contaminant flow; current must remain below 60mA for 6 hours to pass.
Test Duration	6 hours.
Droplet Interval	Adjustable: 0-99.99 seconds/minutes/hours
Droplet System	High-precision peristaltic pump (LEAF); Flow rate: 0.00185-20 mL/min; Speed: 0.1-50 rpm; Accuracy: <0.5%.
Test Solution	Mixture of ammonium chloride, isooctylphenoxy polyethoxy ethanol (nonionic wetting agent), and deionized water. Resistivity: (3.95 ±0.05) Ω·m at (23±1)°C
Filter Paper	Standard dimensions; Thickness: 0.15-0.17mm
Chassis Material	SUS304 stainless steel (brushed finish)
Contaminant Tank	316 stainless steel with sealed design.
Chamber Volume	900L × 650W × 950H (mm); 0.56 m³
Overall Dimensions	1300L × 700W × 1800H (mm)
Control System	PLC + touchscreen; Automated report generation; Built-in thermal printer for real-time results.
Design Features	Integrated structure with control panel on the right
	Glass-view door for observation
	Top-mounted exhaust fan for fume extraction post-test
