Button Operated Tracking Resistance Tester / Comparative Tracking Index Test Machine

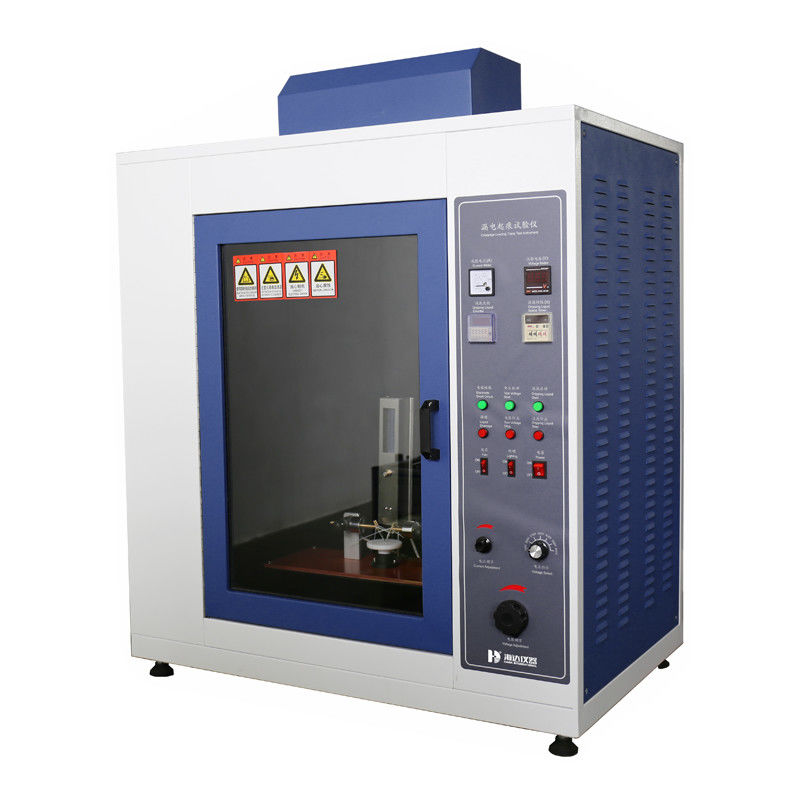

Large Image : Button Operated Tracking Resistance Tester / Comparative Tracking Index Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6006-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Button Operated Tracking Resistance Tester / Comparative Tracking Index Test Machine

Description

Chamber Volume:	≥0.5 M³, With A Glass Observation Door	Power Supply:	AC 220V,50Hz,1KVA
Test Duration:	Adjustable Range: 0.01-99.99 Seconds/minutes/hours	Test Cycles:	Pre-settable: 1-999,900 Cycles
Electrode Force:	Rectangular Platinum Electrodes, Each Applying 1.0N ±0.05N To The Sample.
Highlight:	Tracking Resistance Tester , Comparative Tracking Index Test Machine , Button Operated Tracking Resistance Tester

Comparative Tracking Index Tester

Under humid or contaminated conditions, leakage currents may occur between live parts of opposite polarity or between live parts and grounded metal components, leading to arcing, material erosion, short circuits, or even ignition.

This tester simulates such scenarios to conduct destructive testing on insulating materials, evaluating their relative resistance to tracking under specified voltages in the presence of electric fields and contaminated water. It is suitable for solid insulating materials and products in electrical/electronic equipment and household appliances, such as relay sockets, switch covers, and contactor housings.

IEC 60112:2020, GB/T 4207-2022, IEC 60335-1, GB 4706.1, IEC 60884-1, GB/T 2099.1, IEC 60950, GB 4943.1-2022

Model	6006-HD
Chamber Volume	≥0.5 m³, with a glass observation door
Electrical Load	Adjustable test voltage: 100-600V. Short-circuit current: 1A ±0.1A with ≤10% voltage drop. Overcurrent relay trips at 0.5A ±10% (2s tolerance ±10%), triggering an audible alarm for failed samples (reset via voltage stop).
Electrode Force	Rectangular platinum electrodes, each applying 1.0N ±0.05N to the sample.
Test Duration	Adjustable range: 0.01-99.99 seconds/minutes/hours.
Test Cycles	Pre-settable: 1-999,900 cycles
Droplet System	Droplet height adjustable: 30-40mm. Mass of 50 droplets: 0.997-1.147g; 20 droplets: 0.380-0.480g. Droplet interval: 30±5 seconds (configurable).
Key Features	Stainless steel/brass construction with platinum-plated electrodes (high-temperature/corrosion-resistant). Precise droplet counting, stable control system, integrated ventilation, and lighting for clear observation and fume extraction.
Power Supply	AC 220V, 50Hz.

Moel6001-
