Touch Screen Tracking Resistance Test Machine CTI / PTI Test

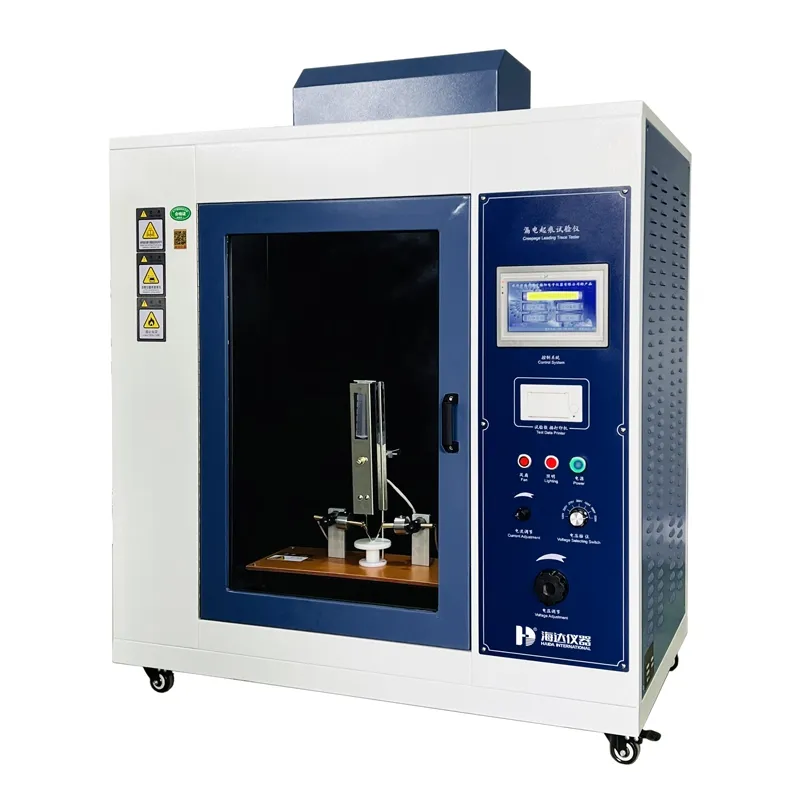

Large Image : Touch Screen Tracking Resistance Test Machine CTI / PTI Test

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6005-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Touch Screen Tracking Resistance Test Machine CTI / PTI Test

Description

Chamber Volume:	≥0.5 M³, With A Glass Observation Door	Power Supply:	AC 220V,50Hz,1KVA
Electrode Force:	Rectangular Platinum Electrodes, Each Applying 1.0N ±0.05N To The Sample	Key Features:	Stainless Steel/brass Construction With Platinum Electrodes
Control System:	7-inch Color LCD Touchscreen + PLC (Programmable Logic Controller), Equipped With A Test Data Printer
Highlight:	CTI PTI Test Machine , Tracking Resistance Test Machine , Touch Screen Tracking Resistance Test Machine

Tracking Resistance Tester

Under humid or contaminated conditions, electrical insulation between live parts of opposite polarity or between live parts and grounded metal components may degrade, leading to leakage currents. This can cause arcing, material erosion, short circuits, or even ignition. This tester simulates such conditions to evaluate the relative resistance of insulating materials to tracking under electric stress and contaminated water exposure. It applies to solid insulating materials and products in electrical/electronic equipment and household appliances, such as relay sockets, switch covers, and contactor housings.

IEC 60112:2020, GB/T 4207-2022, IEC 60335-1, GB 4706.1, IEC 60884-1, GB 2099.1, IEC 60950, GB 4943.1-2022

Model	6005-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
Display System	7-inch color LCD touchscreen for setting/displaying test voltage, current, droplet count, droplet interval, print interface, and operational status.
Chamber Volume	≥0.5 m³, with a glass observation door.
Electrical Load	Adjustable test voltage: 100-600V. Short-circuit current: 1A ±0.1A with ≤10% voltage drop. Overcurrent relay trips at 0.5A ±10% (2s tolerance ±10%), triggering an audible alarm for failed samples (reset via voltage stop).
Electrode Force	Rectangular platinum electrodes, each applying 1.0N ±0.05N to the sample.
Droplet System	Droplet height adjustable: 30-40mm. Mass of 50 droplets: 0.997-1.147g; 20 droplets: 0.380-0.480g. Droplet interval: 30±5 seconds (configurable).
Key Features	Stainless steel/brass construction with platinum electrodes (high-temperature/corrosion-resistant). Precise droplet counting and stable control system.
Power Supply	AC 220V, 50Hz.
