Battery Cycling Thermal Shock Chamber Stability Temperature Impact Testing Machine For Battery

Large Image : Battery Cycling Thermal Shock Chamber Stability Temperature Impact Testing Machine For Battery

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-H210

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Battery Cycling Thermal Shock Chamber Stability Temperature Impact Testing Machine For Battery

Description

Temperature Range:	RT~200℃	Control Method:	Touch Screen Control
Display Method:	Touch Screen Display	Temperature Display Accuracy:	0.1°C
Temperature Stability:	±1.0°C	Temperature Uniformity:	±2°C
Heating Rate:	(5±1)℃／min	Viewing Window:	250x250mm Two-layer Tempered Glass With Stainless Steel Explosion-proof Mesh
Dimension:	700x650x1330mm (WxDxH)
Highlight:	Battery Thermal Shock Chamber , Battery Cycling Thermal Shock Chamber

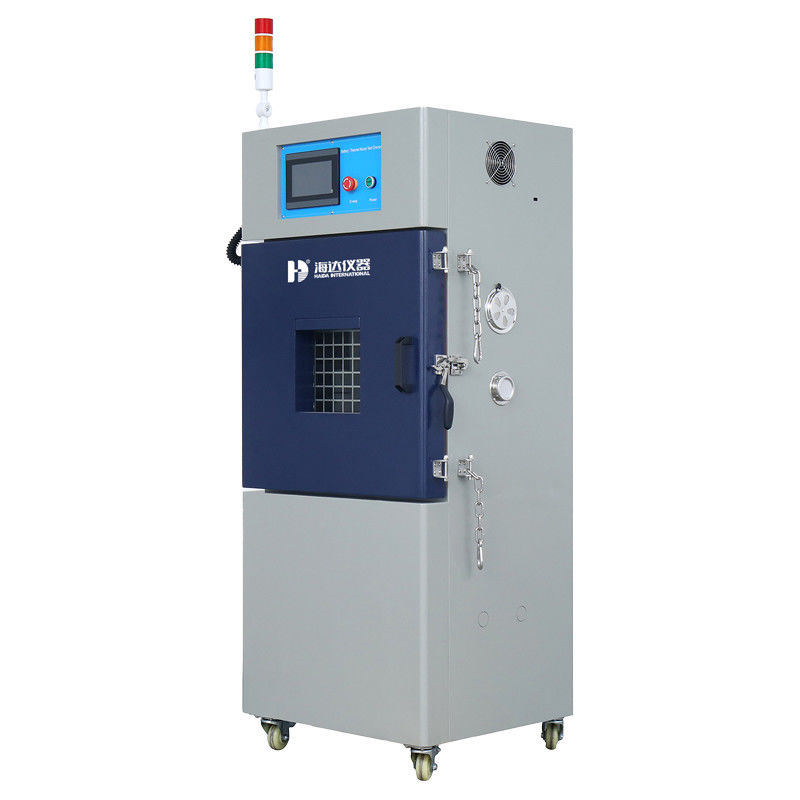

Battery Impact Battery Thermal Shock Chamber

Description:

Battery Impact Battery Thermal Shock Chamber is mainly for communication lithium iron phosphate battery pack,lithium-ion battery for mining lamp, backup lithium-ion battery pack for communication, power battery for electric vehicle and other battery products under 20±5℃ ambient temperature thermal shock test.

Battery Impact Battery Thermal Shock Chamber: The test should be conducted at an ambient temperature of 20℃±5℃, the fully charged battery is placed inside the chamber, and the temperature rises at a rate of 5℃ per minute to 130℃ and then constant temperature of 2H. During the test, the battery does not have an external short circuit, and the tested battery is qualified by not exploding and not catching fire.

Test Standard:

GB 31241-2014; UL 1642:2012; UL 2054: 2012; IEC 62281: 2004; IEC 60086: 2007

Battery Cycling Thermal Shock Chamber Stability Temperature Impact Testing Machine For Battery 0

Advantages:

1.Precision Temperature Control
Provides ultra-accurate and consistent temperature settings for dependable results in extreme conditions.
2.Tailored Solutions
Customizable chamber sizes and features to suit diverse battery testing requirements.
3.Eco-Friendly Performance
Designed with energy-saving technology, reducing operational costs and environmental impact.
4.Rapid Thermal Cycling
Engineered for fast temperature changes, replicating sudden environmental shifts efficiently.
5.Advanced Safety Systems
Equipped with multi-layered protection against overheating, ensuring safe and smooth operation.
6.Comprehensive Data Management
Integrated real-time monitoring, detailed test reports, and exportable data for seamless analysis.

Technical Parameters

Model	HD-H210
Temperature range	RT~200℃
Inner box size	400x450x400mm (WxDxH)
Dimension	700x650x1330mm (WxDxH)
Control method	Touch screen control
Display method	Touch screen display
Temperature display accuracy	0.1°C
Temperature Stability	±1.0°C
Temperature uniformity	±2°C
Heating rate	(5±1)℃／min
Inner box material	SUS201 stainless steel sheet, thickness 1.2mm;
Outer box material	1.5 mm thick cold-rolled steel plate with baking paint treatment;
Viewing Window	250x250mm two-layer tempered glass with stainless steel explosion-proof mesh
Box door	Single door with left opening and explosion-proof
