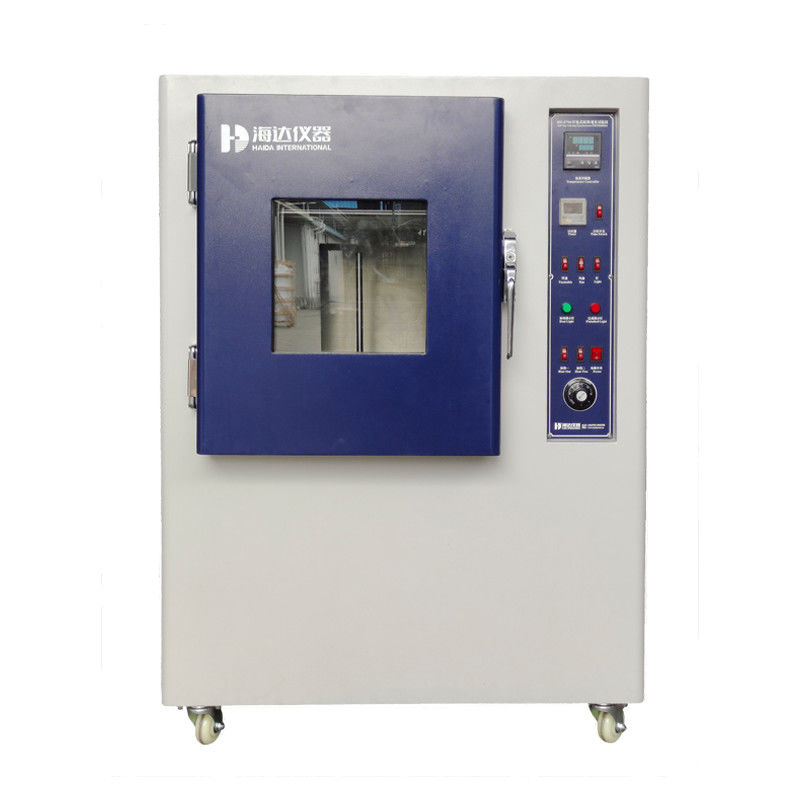

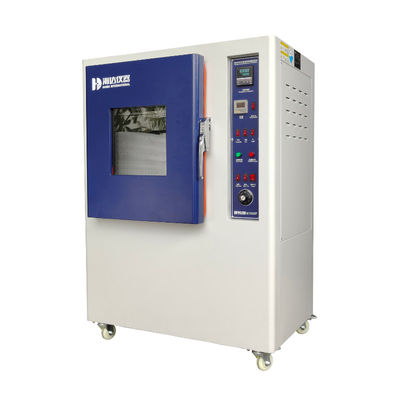

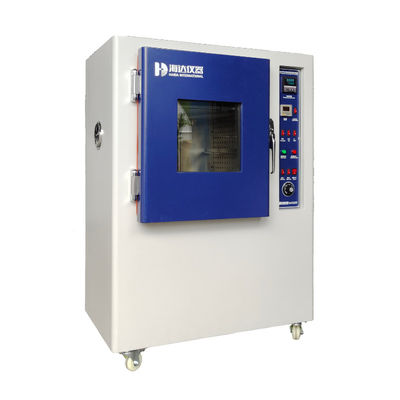

UV Anti-Yellowing Aging Test Chamber
HD-E704 Anti-yellowing Aging Test Chamber.pdf
General Specification
Packaging Dimensions: (W*D*H): 134*90*153cm
Power supply source: single-phase, 220V, 50Hz (can be appointed)
Gross Weight: 170kg
HS Code: 8479899990
Product features:
It can meet the requirements of various materials, semi-finished products and finished products to simulate the appearance changes when exposed to sunlight and ultraviolet rays in the atmospheric environment,
It is generally believed that testing at 50 ℃ for 9 hours is theoretically equivalent to 6 months of exposure to the atmosphere.
It can meet the requirements of high temperature aging test, promote the deterioration of vulcanized rubber, and calculate the change rate of tensile force and elongation before and after heating
It is 70 ℃ a day, which is equivalent to 6 months of exposure to the atmosphere.
High quality, long life, high cost performance and wide application range
Box structure:
1. Inner box material: SUS304 stainless steel plate (1.2mm thick)
2. Outer box material: SUS304 stainless steel plate (1.2mm thick)
3. Door handle: non reaction, explosion-proof door handle, easy to operate, safe and reliable.
4. Mobile and positioning device: high quality fixed Pu activity is installed at the bottom of the machine
Wheel, it is convenient to move the machine to the designated position, and then fix the caster.
5. Observation window: double layer vacuum strengthened glass is used to observe the test process clearly.

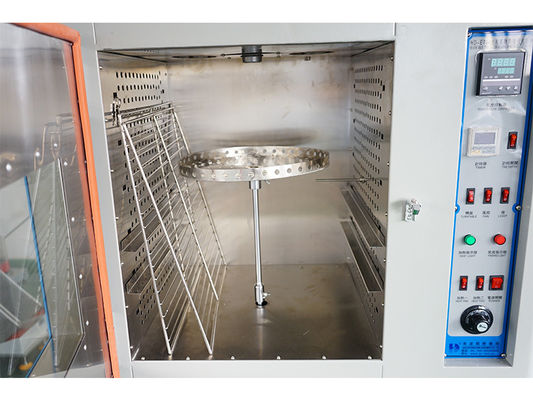

6. Sample holder: SUS304 stainless steel is used for punching and bending into a mesh
The space between material racks can be adjusted.
Standard Features
| Item |
Specification |
| Internal chamber size(W*D*H) |
50*50*60cm |
| External chamber size(W*D*H) |
114*74*130cm |
| Temperature Range |
Ambient Temperature~200℃ |
| Control Mode |
Automatic Calculation Controller |
| Temperature display accuracy |
0.1℃ |
| Control accuracy |
±3℃ |
| Distribution accuracy |
±1℃ (ambient ~ 100℃) |
| Time memory |
0-999 hours, Power Failure Memory Type, with Buzzer |
| Sample holder rotation speed |
Diameter 45cm, 10±2 roll/min |
| UV light source |
300W UV lamp |
| Standard Accessories |
Sample shelf x 2pcs |
| Heating method |
Hot air circulation |
| Security devices |
Over-temperature power-off indicator light;
Safety overload switch ammeter |
| Chamber material |
Internal: Stainless Steel SUS304;
External: Steel plate with baking varnish |
| Accessory |
1 x English operation manual, 1 x Operation video CD |
Application
- The machine can do two tests: anti-yellowing and aging.
- Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50’C for 9 hours, in theory as exposed to atmosphere for 6 months.
- Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.
Warranty:
One-year warranty on all parts, labor is not covered. Warranty coverage includes shipment.
