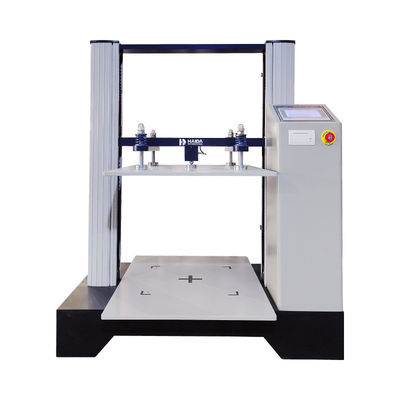

Computer Control Package Box Compression Testing Machine / Box Compression Tester

Large Image : Computer Control Package Box Compression Testing Machine / Box Compression Tester

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008
Model Number:	HD-A502S-900

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

Computer Control Package Box Compression Testing Machine / Box Compression Tester

Description

Power:

Electronic

Use:

Packaging Containers

Gross Weight:

120kg

Packaging Dimensions:

(WxDxH) 900*700*1250 MM

Highlight:

Box Compression Testing Machine

Package Box Compression Testing Machine

Computer Servo Packing Carton Compression Test Machine Safety Features

A502 Box Compression Tester.pdf

MACHINE PRODUCTION

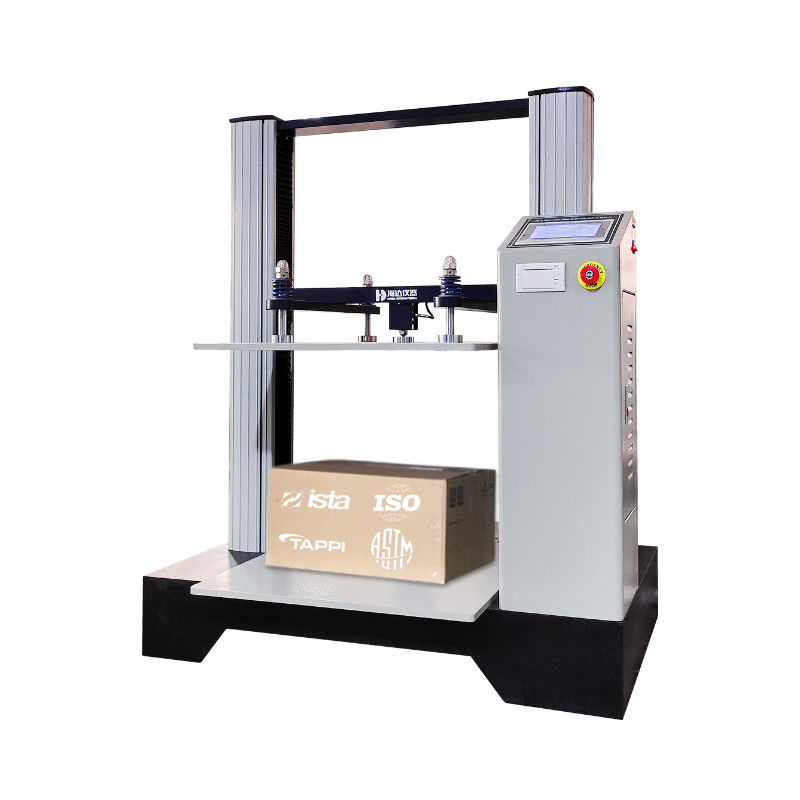

Box Compression Test Machine is specialized for testing the compression performance of cartons. Generally, suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.

carton box compression test machine

STANDARD FEATURES

Item	Description
Max. Force	1000KG(10KN)
Load cell	1 load cell for highest accuracy
Control system	Windows 7, RS-232 interface
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Load cell Resolution	1/250,000
Load Precision	within ±0.25%
Parallelism of Platens	Parallel within ±2.5mm
Effective test area	700900900mm
Test speed	10 ±3mm/min (0.01~200mm/min adjustable)
Software	TM 2101
Data display	Load, displacement, speed, loading rate and elapsed time
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

carton box compression test machine

HAIDA INTRODUCTION

Founded in 2004, Haida® is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
