Product Details:
|
| Load Capacity: | 600kg | Impact Surface Dimension(L*H)mm: | 1630 X 2400 Mm |
|---|---|---|---|
| Rolling Carriage Table Dimension(L*W)mm: | 1600 X 1100 Mm | Max. Slide Length (mm): | 1800mm |
| Plane Inclined To The Vertical Angle: | 10° | Velocity Range (m/s): | 1.1~2.3m/s |
| Impact Surface Material: | Rubber Wood With Two-rail Steel Track | Power Supply: | 220V, 50/ 60HZ |
| Clamping Force Rate: | 0.25-2.5mm/sec (according ISTA 6- SAMS CLUB) | Work Environmental: | Temperature 0~40°, Humidity ≤80% (no Condensation) |
| Control System: | PLC Type | Floor Area (L*W) Mm: | 5500 X 1630 Mm |
| Highlight: | ista package testing,packaging testing equipments |
||

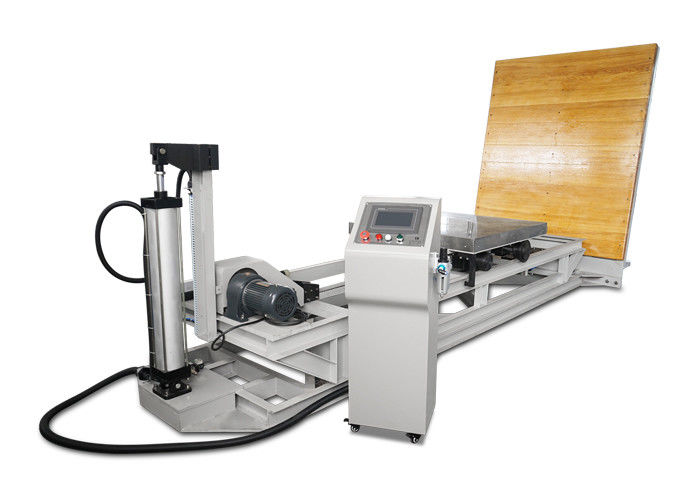

ISTA Simulated Incline Impact Strength Package Testing Equipment OEM ODM
GENERL SPECIFICATIONS
Packaging Dimensions: 25CBM
Power supply source: three-phase, 220V±10%, 50/60Hz
Gross Weight: approx. 2800kg
STANDARD SPECIFICATIONS
| Item | Description |
| Load capacity | 600kg(can be customized) |
| Impact surface dimension | 1600 x 2200mm(can be customized) |
| Rolling carriage table dimension | 1600x1600mm(can be customized) |
| Control system | Touch screen controller |
| Max. slide length | 2900mm(can be customized) |
| Plane inclined to the vertical angle | Horizontal |
| Velocity range | 1.1~2.3m/s(can be customized) |
| Impact surface material | Rubber wood with two-rail steel track |
| Working condition | Temperature 0~40°, humidity ≤80% (no condensation) |
| Floor area | 7220*1800mm(can be customized) |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
DESIGN STANDARDS
ISTA 3E, 3J & ISTA 6 (inclined impact test)
FEATURES:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
