Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell

Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell

  • Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell
  • Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell
  • Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell
Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell
Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-B616
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 Piece / Pieces Per Month
Contact Now
Detailed Product Description
Usage: Tension Material Tension Strength Tester Load Range: 6KN-600KN
Max. Ram Stroke: 250mm Max. Tensile Space: 800mm(including Piston Stroke)
Max. Compression Space: 700mm(including Piston Stroke) Display: Computer Control And Display
Clamping Mode: Hydraulically Transducer: Load Cell
Deformation Measuring: YYU–10/50 Dimensions Of Load Frame: 990×600×2435mm
Dimension Of Controller: 1140×700×930mm All Weight: 2800kg
High Light:

hydraulic universal testing machine

,

digital universal testing machine

Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell





Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell 0HD-B611-S Universal Test Machine.pdf

Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell 1HD-B616-1 30T Hydraulic Universal Test Machine.pdf...

Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell 2HD-B616-2 60T Hydraulic Universal Test Machine.pdf...

Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell 3HD-B616-3 100T Hydraulic Universal Test Machine.pd...

Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell 4HD-B616-4 200T Hydraulic Universal Test Machine.pd...





1. instroduction
Universal Material Hydraulic Tensile Testing Machine With High Accurate Load Cell is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.


2. structure

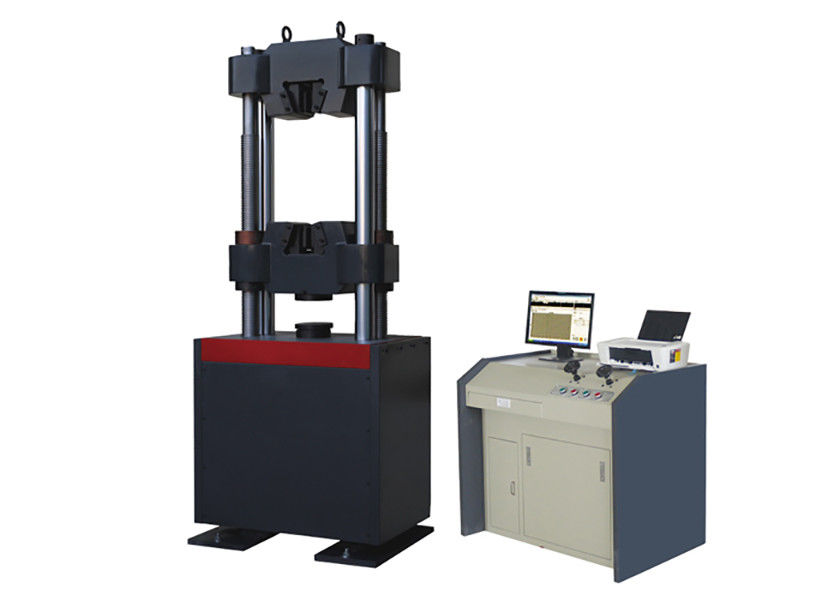

The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.


3. characteristics
Universal Material Hydraulic Tensile Testing Machine With High Accurate Load Cell  has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.





Main specifications

Model:

HD-B616

Max. Test load:

60T

Relative error of indicate value of load :

 ±1%

Max. Ram stroke:

250mm

Max. Tensile space:

800mm(including piston stroke)

Max. Compression space:

700mm(including piston stroke)

Display:

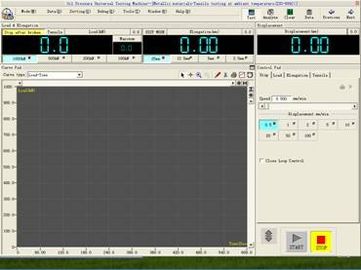

Computer control and display

Tensile grips for round specimen :

φ6-φ26mm

Tensile grips for flat specimen:

0-15mm

Distance for two columns:

500mm

Upper and lower platen size:

200x200mm

The span of bending:

450mm

Width of bending roller:

140mm

Dia. of bending roller:

30mm

Clamping mode:

Hydraulically

Transducer:

load cell

Deformation measuring:

YYU–10/50

Dimensions of load frame :

990×600×2435mm

Dimension of controller :

1140×700×930mm

All weight:

2800kg





Main standard accessories

Upper and lower platen for compression(200x200mm)

1 set

Extensometer

1 set

Round specimen grip for tensile ( φ6-φ26mm  )

1 set

Flat specimen grip for tensile ( 0-15mm )

1 set

Bending accessories

1 set

High accurate load cell

1 set

High precision photoelectric encoder Measuring the displacement

1 set

High pressure pump

1 set

Proportion Valve

1 set

Electro-hydraulic servo valve

1 set

Shearing accessories ( Optional accessories)

1 set





Specifications

1. it is digtial type
2. it is hydraulic
3. it can do the test of tensile, compression, bending, and so on

1. instroduction
Model WES-300B hydraulic universal testing machine UTM is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
2. structure
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
3. characteristics
Computer Control And Display Hydraulic Metal Tensile Testing Machine has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.





Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell 5Digital Display Hydraulic Universal Testing Machine High Accurate Load Cell 6
