Product Details:
|
Usage: | Tension Material Tension Strength Tester | Warranty Period: | 1 Year |
---|---|---|---|
Max. Test Load: | 300KN | Load Range: | 6KN-300KN |
Max. Ram Stroke: | 250mm | Max. Tensile Space: | 800mm(including Piston Stroke) |
Max. Compression Space: | 700mm(including Piston Stroke) | Display: | Computer Control And Display |
Clamping Mode: | Hydraulically | Transducer: | Load Cell |
Deformation Measuring: | YYU–10/50 | Dimensions Of Load Frame: | 990×600×2435mm |
Dimension Of Controller: | 1140×700×930mm | All Weight: | 2800kg |
Highlight: | hydraulic universal testing machine,digital universal testing machine |

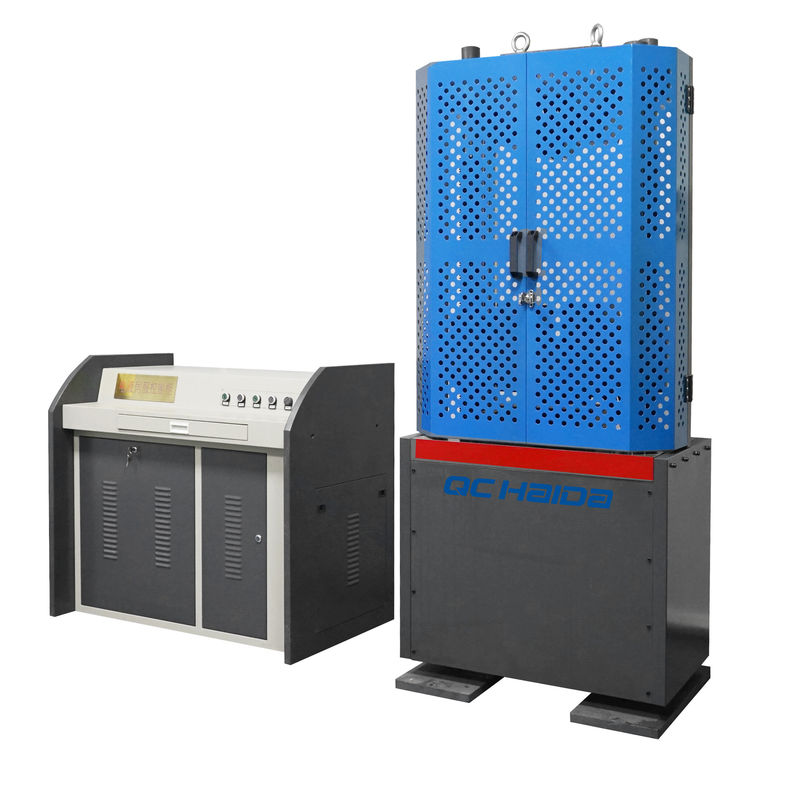

300KN Universal Hydraulic Tensile Testing Machine with Computer Control
HD-B616-1 30T Hydraulic Universal Test Machine.pdf...
Structure introduction:
300KN Load Cell Computer Control Hydraulic Tensile Testing Machine is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.
The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
300KN Load Cell Computer Control Hydraulic Tensile Testing Machine adopts oil pressure transducer to measure load, use computer control & display load.
Main specifications:
Model: |
HD-B616-1 |
Max. Test load: |
300KN |
Load range: |
6KN-300KN |
Relative error of indicate value of load : |
±1% |
Max. Ram stroke: |
250mm |
Max. Tensile space: |
800mm(including piston stroke) |
Max. Compression space: |
700mm(including piston stroke) |
Display: |
Computer control and display |
Tensile grips for round specimen : |
φ6-φ26mm |
Tensile grips for flat specimen: |
0-15mm |
Distance for two columns: |
500mm |
Upper and lower platen size: |
200x200mm |
The span of bending: |
450mm |
Width of bending roller: |
140mm |
Dia. of bending roller: |
30mm |
Clamping mode: |
Hydraulically |
Transducer: |
load cell |
Deformation measuring: |
YYU–10/50 |
Dimensions of load frame : |
990×600×2435mm |
Dimension of controller : |
1140×700×930mm |
All weight: |
2800kg |
