Compression Test Machine Tensile Tester With Temperature Chamber For Hardware Leather

    • Compression Test Machine  Tensile Tester With Temperature Chamber For Hardware Leather
    • Compression Test Machine  Tensile Tester With Temperature Chamber For Hardware Leather
    • Compression Test Machine  Tensile Tester With Temperature Chamber For Hardware Leather
  • Compression Test Machine  Tensile Tester With Temperature Chamber For Hardware Leather

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-B607

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Strong Wooden Case
    Delivery Time: 15 Days After Order
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 75 Piece / Pieces Per Month
    Contact Now
    Detailed Product Description
    Unit Switchover: G, KG, N, LB Display Device: LCD Or PC
    Resolution: 1/100,000 Accuracy: ±0.5%
    Max. Stroke: 1000mm (excluding Fixture) Test Speed: 20-300mm/min (adjusted By The Knob )
    Screw: High Precise Ball Screw Test Area Material: SUS304 Stainless Steel
    Elongation Accuracy: 0.001mm Power: 1∮, AC220V, 50HZ
    Weight: Approx.150kg Motor: Servo Motor
    Control System: Computer Control


    Compression Test Machine Tensile Tester With Temperature Chamber For Hardware Leather


    HD-B607-Swen.pdf

    Introduce:

    High-precision electronic digital display electronic universal Tensile Test Equipment  is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.



    Theory:
    High-precision electronic digital display electronic universal Tensile Test Equipment adopts the material tensile meter,use the motor to make displacement of the fixture. Place the fixture with sample between the upper and lower fixture,and the upper load cell with sensor the tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



    Design Standards:
    ASTM D903; GB/T16491; GB/T1040; GB/T8808; GB13022; GB/T 2790/2791/2792; CNS-11888; JIS-K6854; PSTC-7



    Main Technical Parameter:

    Items

    Specification

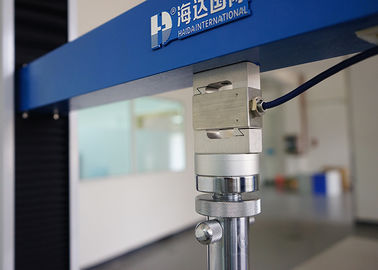

    Sensor

    Celtron load cell

    Capacity

    1000,2000,3000,5000kg

    Unit Switchover

    G, KG, N, LB

    Display Device

    PC

    Resolution

    1/250,000

    Accuracy

    ±0.5%

    Max. Stroke

    1000mm (including fixture)

    Test Speed

    0.1-300mm/min (adjustable )

    Motor

    Panasonic Servo Motor

    Screw

    High Precise Ball Screw

    Elongation Accuracy

    0.001mm

    Power

    AC220V, 50HZ

    Weight

    Approx.250kg

    Accessories

    One set tensile clamp,one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual




    Product Features:
    1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
    2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
    3. User can set parameters of product material such as length, width, thickness, radius, area and so on.
    4. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.


    Applications

    1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
    2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
    3. Deformation under defined load: Test deformation under defined load of tested sample
    4. Load under defined deformation: Test load under defined deformation of tested sample
    5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.


    Images:

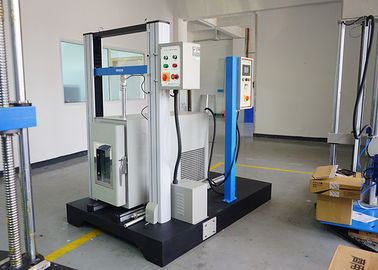

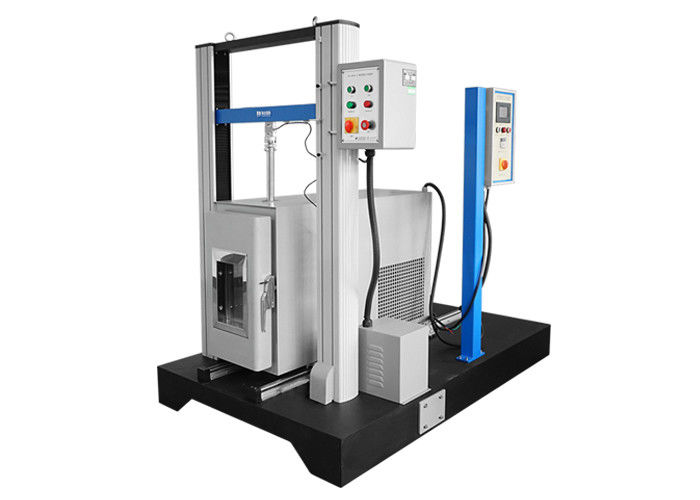

    Compression Test Machine  Tensile Tester With Temperature Chamber For Hardware Leather
