Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine

Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine
Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine
Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine

Large Image :  Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-B617
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 Piece / Pieces Per Month

Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine

Description
Usage: Electronic Universal Material Tensile Strength Tester Warranty Period: 1 Year
Grip: Tensile Grip, Tear Force Grip Sensor: Celtron Load Cell
Weight: Approx.85kg Power: 1phase,AC220V, 50HZ
Elongation Accuracy: 0.001mm Display Device: LCD Or PC
Resolution: 1/250,000 Accuracy: ±0.5%
Test Speed: 0-500mm/min (adjustable ) Max. Stroke: 1200mm (excluding Fixture)
Motor: Taiwan 400w Servo Motor Screw: High Precise Ball Screw
High Light:

universal test equipment

,

tensile strength tester

Microcomputer Control Electronic Tensile Tester , Rubber Tensile Testing Machine

HD-B617 Universal Test Machine.pdf


Product Description
Microcomputer Control Electronic Rubber Tensile Strength Tester adopts DC speed regulating servomotor and reduction gears as the power source. It real-time displays test data and test status with LCD module. Professional designed servo control system realizes the PWM pulse-width modulation control mode. It really comes up with test speed closed-loop control mode. It is controlled by single chip automatically control.

The machine is calibrated as ASTM E4, ISO 75001 international standard. By adding different grips it can do the test of ISO 527, ISO 8295, ISO 37, ISO 178, ISO 6892, ASTM D412, ASTM C1161, ASTM D882, ASTM D885ASTM D918, ASTM D1876, ASTM D4632 and all the force and extension JIS, DIN, BSEN testing standards.


Main Technical Parameters of Electronic Rubber Tensile Strength Tester:

Items

Specification

Sensor

Celtron load cell

Capacity

5, 10, 20, 25, 50, 100, 200kg

Unit Switchover

G, KG, N, LB

Display Device

LCD or PC

Resolution

1/250,000

Accuracy

±0.5%

Max. Stroke

1200mm (excluding fixture)

Test Speed

0-500mm/min (adjustable )

Motor

Taiwan 400w servo motor

Screw

High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

1phase,AC220V, 50HZ

Weight

Approx.85kg

Accessories

One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



Features of Microcomputer Control Electronic Rubber Tensile Strength Tester:

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
2. Displacement resolution: 0.001mm.
3. User can set parameters of product material such as length, width, thickness, radius, area and so on.
4. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
5. Data transmission: RS232.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. Graph scale automatic optimization can make graph to display with best measurement and can implem- ent graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.


Optional Note:

How to buy electronic universal testing machine:

First, the different materials testing machine needs:

  1. Metallic materials testing machine requirements
  2. Plastic material (polymer) of the test machine requires
  3. Plastic pipe requirements for testing machines
  4. Rubber material testing machine requirements
  5. Textile fiber materials required for the testing machine
  6. Required spring bearing on the testing machine
  7. Film, foil material testing machine of claim
  8. Products (or product) of the test machine requires


Second, there are different needs in different sectors of the test machine.


Application of Industry:

Microcomputer Control Electronic Rubber Tensile Strength Tester widely used measure quality; rubber and plastics; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civilian nuclear energy; civil aviation; universities; research laboratory; inspection arbitration, technical supervision departments; building ceramics; petrochemicals; other industries.

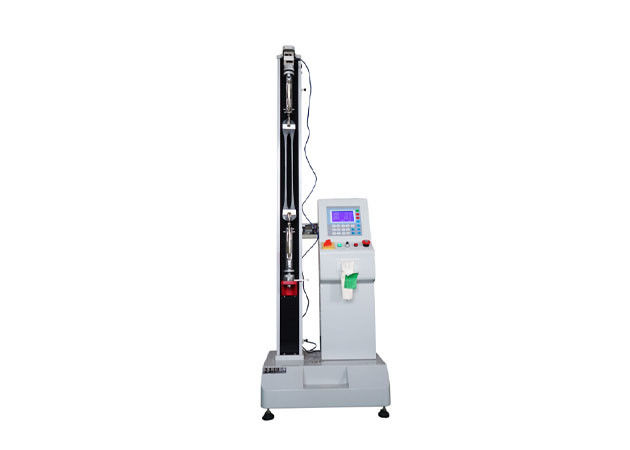

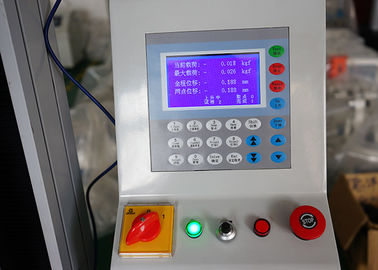

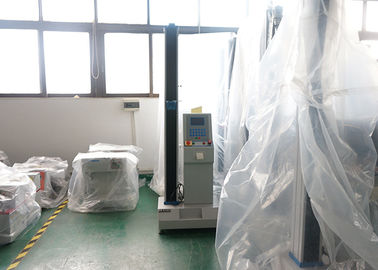

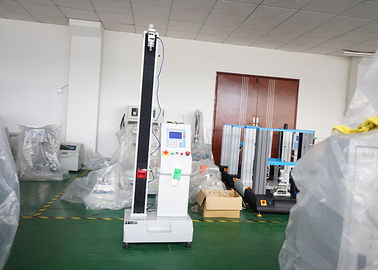

Microcomputer Control Electronic Rubber Tensile Strength Tester view:

tensile test machine
