Adhesive Strength Test Compression Testing Equipment for Petrochemistry

Adhesive Strength Test Compression Testing Equipment for Petrochemistry
Adhesive Strength Test Compression Testing Equipment for Petrochemistry Adhesive Strength Test Compression Testing Equipment for Petrochemistry Adhesive Strength Test Compression Testing Equipment for Petrochemistry Adhesive Strength Test Compression Testing Equipment for Petrochemistry Adhesive Strength Test Compression Testing Equipment for Petrochemistry Adhesive Strength Test Compression Testing Equipment for Petrochemistry

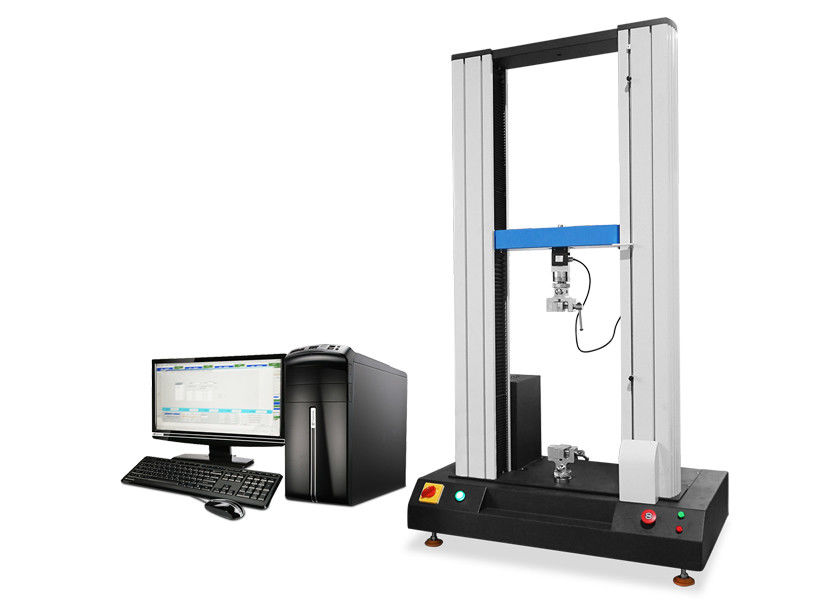

Large Image :  Adhesive Strength Test Compression Testing Equipment for Petrochemistry

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-B603
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 75 Piece / Pieces Per Month

Adhesive Strength Test Compression Testing Equipment for Petrochemistry

Description
Unit Switchover: G, KG, N, LB Display Device: PC
Resolution: 1/100,000 Accuracy: ±0.5%
Max. Stroke: 1000mm (excluding Fixture) Test Speed: 20-300mm/min (adjusted By The Knob )
Motor: AC Motor Screw: High Precise Ball Screw
Test Area Material: SUS304 Stainless Steel Elongation Accuracy: 0.001mm
Power: 1∮, AC220V, 50HZ Weight: Approx.150kg
Sensor: Celtron Load Cell Capacity: 500, 1000, 2000KG
High Light:

universal test equipment

,

tensile strength tester



Adhesive Strength Test Compression Testing Equipment for Petrochemistry





Application:

Panasonic servo motor adhesive tensile peel tensile strength tester is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,etc.of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing,architecture,petrochemistry,electric appliance,automobile,...etc. ,which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.








Theory of tensile strength testing machine:
Place the sample between the upper and lower fixture,use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the computer.









Features of universal tensile Tester:



1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it

operates easily;



2. Using a single-screen operation; do not need to switch the screen;



3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can

be switched easily



4. The pattern of Test reports can be selfdesignated; test data can be displayed directly in the main screen;



5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;



6. With a variety of measurement units, Measure In Imperial & Metric are switchable;



7. With self-return & auto-correction function;



8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;



9. With the user-defined Test methods; with experimental data analysis function;



10. High quality, accurate and reliable models with reasonable price.







Standard:

ASTMD903,GB/T16491,GB/T1040,

GB/T8808,GB13022,GB/T 2790/2791/2792,

CNS-11888,JIS K6854, PSTC-7.







Technical parameters of tensile tester :

Capacity (optional)

5,10,20,25,50,100,200kg(optional)

Unit (Switchable)

G, KG,  N,  LB

Load Resolution

1/250,000

Load Accuracy

< ± 0.5%

Stroke (include the grips)

1000mm

Test speed

0.1~500mm/min selectable

Weight (exclude the grips)

190 Kg

Operation Mode

PC  or LCD

Display

PC  or LCD

Motor

Servo  Motor

Dimension(W×D×H)-Main Unit

570×510×1240mm

 Driver

 High precise ball screw

Power

single phase, 220V/ 10A or designated

Accessories

Tensile grips 1 set, one computer









Software:

The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for the test of tension, compress, bend, shear, tearing and peel. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force, maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.







Specification of main engine:



a, Motor system: Panasonic servo motor +Panasonic servo driver +ball screw (Taiwan)     +Leeming reduction gears +synchronous belt drive

b,Control system: a, TM2101 computer servo system,b, Back to origin automatically after the test;

c, store data automatica  lly or by manual operation

d, Data transmission:RS232

e, Computer servo system :Desktop computer servo control tensile tester dedicated system

f, Display modes: Windows Interface display

g, Using windows interface to test software it can achieve to set speed, load, power time, Breakpoint

proportion ,much ord   er control mode and meet different test requirement.

h, Whole displacement: encoder (2500P/R), ascending 4 times precision

i, Displacement resolution: 0.001mm

j, Safety device: overload emergency stop device, fluctuation travel limit device, leakage automatic broken

electricity syste m, automatic breakpoint stop function
