Product Details:
|
| Usage: | Multifunctional Optical Measuring Machine | Using Area: | Machinery, Electronics, Instrumentation, Plastics |
|---|---|---|---|
| Warranty: | 1 Year Free | Image: | Clear |
| Feature: | Easy To Operate | Price: | Reasonable |
| Camera: | Color 1/3``CCD Camera | Optical Magnification: | 0.7~4.5X |
| Object View-field: | 8.1~1.3mm | Resolution: | 0.0005mm |
| Highlight: | Coordinate Measurement Machine,Optical Measuring Instruments |
||
Multifunctional 2D Optical Measuring Instruments for Length Measurement / PCB
Introduction:
2D Multifunctional Optical Machine for Length Measurement / PCB is used to measuring different types of precision finishing industries,such as gears, electronic parts,precision mold, watch, plastic , precision tool, spring, screw processing, plastic, rubber, camera parts, motor part and conductive rubber. It is well popular in machinery, electronics, gauging instrument and light industries as well as academies, research institutions and measurement-inspecting department.
Features of 2D Multifunctional Optical Machine for Length Measurement / PCB:
1 > Creative modern-shape-design;
2 > Fashionable auto-painting-craftwork ;
3 > Steady granite base;
4 > Stable imported V-shape guide;
5 > Precise metal and glass worktable;
6 > High-speed 3-axis CNC driven motor;
7 > Adjustable USB 40-division ring LED illumination;
8 > Advanced Pomeas 0.7~4.5X Zoom lens;
9 > Wonderful SONY 1/2`` Color CCD camera;
10> Powerful 2.5D measuring software QuickMeasuring 4.1 version.
Functions of 2D Multifunctional Optical Machine for Length Measurement / PCB:
1> It can measure point, line, circle, arc, oval and rectangular to improve measurement accuracy with multi-point .
2> It has many features, such as combination of measurements, center structure, the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
3> Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.
4> Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.
5> Measurement data directly input into AutoAD and become a full work circle .
6> Measurement data can be entered in EXCEL to conduct statistical analysis, can draw a simple Xbar-S Control Yuan, find Ca and other parameters.
7> Switching language interfaces.
8> Record user program, editing and execute command.
The Main Technical Parameters:
| Model | TT-U801 Optical Machine for Length Measurement / PCB | |
| Glass table size | 320×280mm | |
| Travel: X,Y | 400×300mm | |
| Net Weight | 240 kg | |
| Dimension | 750×600×920mm | |
| Travel: Z : 150mm | Work distance: 95mm | |
| Video system | Camera: Color 1/3``CCD camera | |
| Optical Magnification:0.7~4.5X | ||
| Digital magnification:30~230X | ||
| Object view-field:8.1~1.3mm | ||
| Contour and surface illumination: Ring LED and brightness can be setup | ||
| Power | 180V(AC)-260V(AC) 50Hz | |
| Software | Quick Measuring 2.0 | |

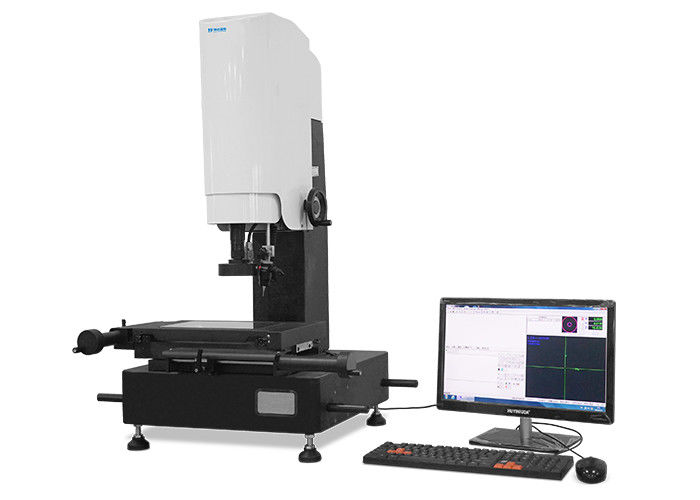

2D Multifunctional Optical Machine for Length Measurement / PCB View:
