Product Details:
|
| Certificate: | ISO 9001: 2008; | Warranty Year: | 12 Months |
|---|---|---|---|
| Temperature Range: | Pt 5-65℃ | Factory: | OEM,ODM |
| Temperature Fluctuation: | ±1℃ | Model: | HD-714 |
| Power Consumption: | 150W/180W/350W/500W | Power: | 220v 50Hz |
| Capacity: | To Be Customize | ||
| Highlight: | electronic lab equipment,lab testing equipment |
||

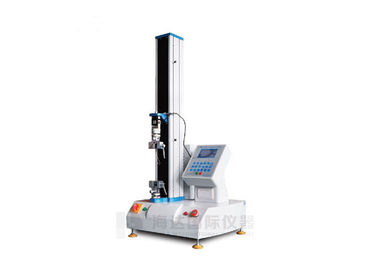

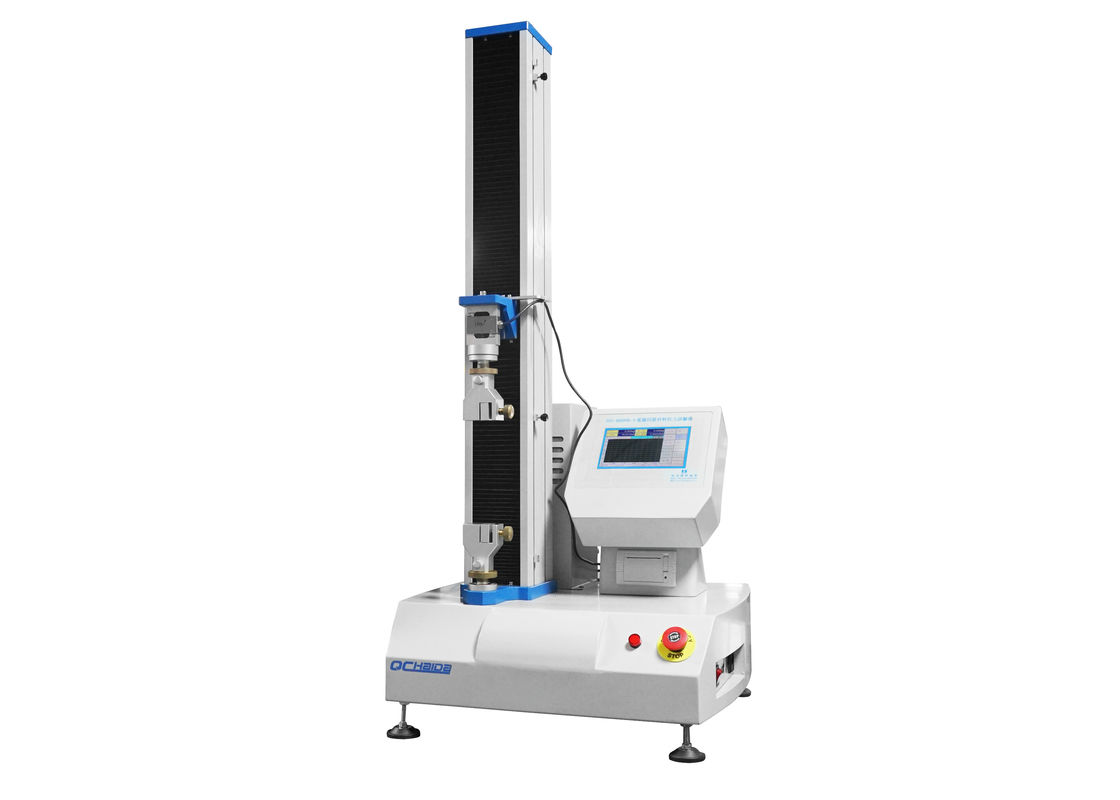

Tensile Strength Machine Universal Pressure Test Machine (Include Test Fixture)
STANDARD FEATURES
| Item | Description |
| Max. Force | 100 kg (1KN) |
| Force range/precision | 0.2%~100% |
| Load Precision | ≤1% |
| Load cell Resolution | 1/250,000 |
| Load cell | Germany brand load cell for high accuracy |
| Control system | LCD / PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T, etc. |
| Stoke | 900mm including fixture |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
APPLICATIONS
OUR SERVICES:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service:
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service :
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
