Product Details:
|
| Usage: | Rubber Ozone Aging Test | Warranty Year: | 1 Year |
|---|---|---|---|
| Interior Size (WxDxH): | 250x250x250mm | Certificate: | ISO,, CE Etc |
| Accuracy: | ± 1% | Temp. (optional): | Room Temp.~200°C Or 300°C |
| Motor: | 1/4 HP | Electrothermal Tube: | 3 KW |
| Weight: | 250kg | Power: | 1#, AC 220V/14.5A |
| High Light: | ozone test chamber,xenon test chamber |
||

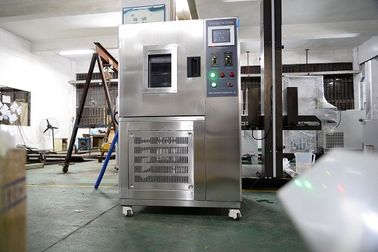

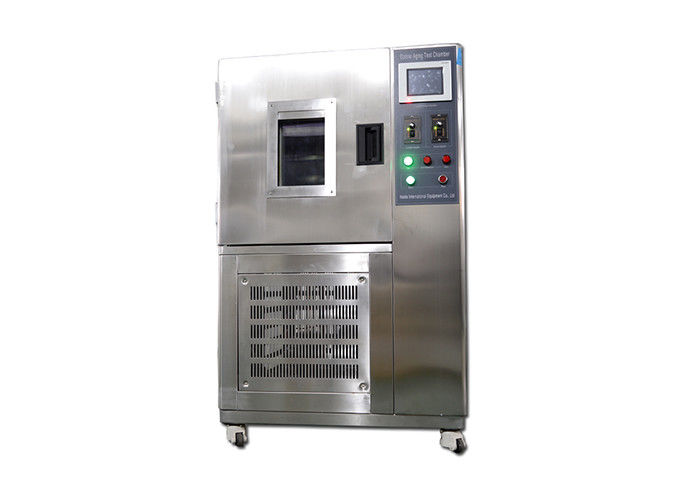

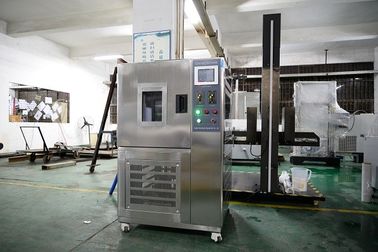

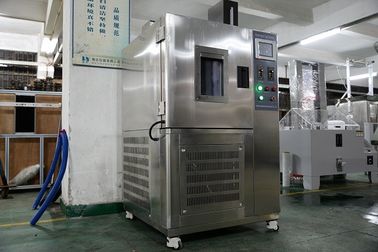

ISO Ozone Resistance Test For Rubber Environmental Test Chamber
Introduce:
Aging chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.Rubber ozone aging Chamber is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Main feature:
Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
Main function:
Aging Chamber can be used to test rubber products with static tensile deformation, such as vulcanized rubber, thermoplastic rubber, cable insulating bush; expose the test specimens to the sealed air in the test chamber without light and with constant ozone concentration and constant temperature according to predetermined time, and then observe the cracks on test specimens’ surface and the degree of change of other properties to evaluate the rubber’s ozone aging resistance properties.
Technical parameter:
|
Model |
HD-E801 ozone aging test chamber |
|
Ozone concentration |
5~200pphm (adjustable) 200~1000pphm(adjustable) |
|
Relative humidity |
No humidity, but can produce according to your requirement |
|
Temperature |
RT+10~+70°C |
|
Ozone produced mode |
Ozone generator or UV absorption method |
|
Inside air velocity |
over 2 feet/sec |
|
Degree of ozone concentration fluctuation |
10% |
|
Inside size |
500×500×600mm |
|
air flow |
A.0-6 cfm;B. 10-20 cfh |
|
weight |
250kg |
|
power |
1# ,AC220V,15A |
|
accessories |
tensile fixture 6 groups |
Corresponding standard:
JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003
GB 2951
Image:
