Product Details:
|
| Humiture Range: | 30-98%RH | Rainfall Cycle: | 1-240min |
|---|---|---|---|
| Certificate: | ISO9001: 2008 | Warranty Period: | 12 Months |
| Studio Size: | 95Dx95Wx90Hcm | Box Material: | Stainless Steel SUS304# |
| Insulation Materials: | Superfine Glass Fabric | Control System: | Germany KLOCKNER-MOELLER Progammable Controler |
| Gas Processing: | Dischager For Fector And Harmful Gas | Use Environment: | 5°C~+30°C, ≤85%R.H |
| High Light: | ozone test chamber,xenon test chamber |
||

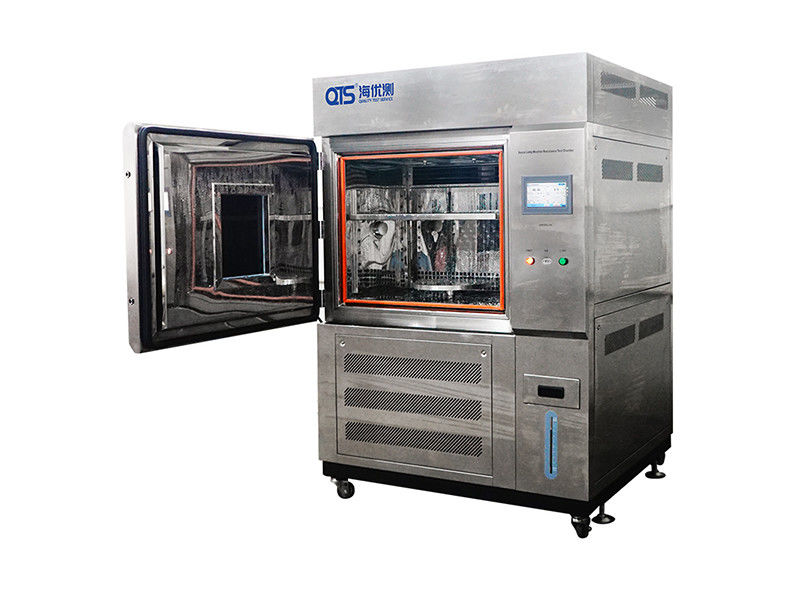

SUS304 Xenon Tester Accelerated Aging Chamber with ISO Certificated
Product Introduction:
Xenon Lamp Aging Chamber is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes.
This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials.
Xenon Lamp Aging Chamber can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Features:
1. Advanced design technology and concept.
2. Excellent technology of producing and outstanding system of quality management.
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet.
visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather resistance, etc.
Specifications:
| Model | HD-711L Xenon Lamp Aging Chamber |
| Inner Box Size (D×W×H) | 950×950×900mm |
| Outside Dimension (D×W×H) | 1300×1500×1900mm |
| Humiture Range | (RT+10)~70°C; 30~98%RH |
| Humiture uniformity | ± 2°C; ± 3%RH |
| Rainfall time | 1~9999min, adjustable |
| Rainfall cycle | 1~240min, interval is adjustable |
| Xenon lamp light | xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200 |
| Heating/humidifying power | 2.0KW/2.0KW |
| Sample spinning machine speed | 1~5r/ min (adjustable) |
| Sample and xenon lamp distance | 300~375mm |
| Box material | Stainless Steel SUS304# |
| Insulation materials | Superfine heat insulation cotton |
| Insulation body | Superfine glass fabric |
| Circulation system | Single cycle, centrifugal fan |
| Control system | Germany KLOCKNER-MOELLER progammable controler |
| Gas processing | dischager for fector and harmful gas |
| Power | AC380V, three phase five wire, 10KW |
| Use environment | 5°C~+30°C, ≤85%R.H |
| Standard features | 1. Filtering screen viewing window; 2.Moistureproof lamp |
| Security Protection | Security device for circuit break, |
| high pressure of the compressure, high temperature alarm |
