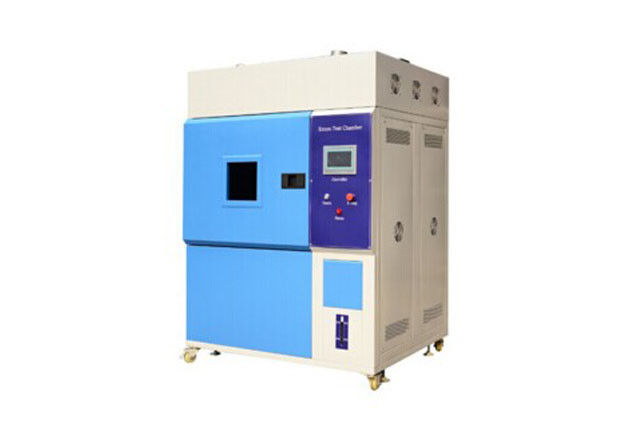

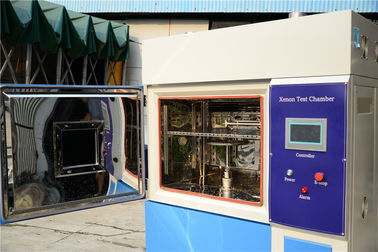

Stainless Steel Xenon Ageing Test Chamber Accelerated Stability Testing Chamber

Stainless Steel Xenon Ageing Test Chamber Accelerated Stability Testing Chamber

Stainless Steel Xenon Ageing Test Chamber Accelerated Stability Testing Chamber
Stainless Steel Xenon Ageing Test Chamber Accelerated Stability Testing Chamber
Product Details:
Place of Origin: china
Brand Name: Haida
Certification: ISO9001: 2008, CE, ...
Model Number: HD-E711
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Humiture Range: 30-98%RH Rainfall Cycle: 1-240min
Certificate: ISO9001: 2008 Warranty Period: 12 Months
Studio Size: 95Dx95Wx90Hcm Box Material: Stainless Steel SUS304#
Insulation Materials: Superfine Glass Fabric Control System: Germany KLOCKNER-MOELLER Progammable Controler
Gas Processing: Dischager For Fector And Harmful Gas Use Environment: 5°C~+30°C, ≤85%R.H
Use: Xenon Ageing Test Chamber
High Light:

xenon test chamber


accelerated aging calculator

Stainless Steel Xenon Testing Accelerated Stability Testing Chamber

Product introduction:

1. Xenon arc test camera adopt the xenon arc lamp that can simulate full sunlight spectrum to reproduce destructive light waves existing in different environments so as to provide the corresponding environment simulation and acceleration test for scientific research, product development and quality control.
2.It is approved by many OEMs in the automotive, paints and coatings, and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results for predicting service life.

ModelHD-711L Xenon Lamp Aging Chamber
Inner Box Size (D×W×H)950×950×900mm
Outside Dimension (D×W×H)1300×1500×1900mm
Humiture Range (RT+10)~70°C; 30~98%RH
Humiture uniformity± 2°C; ± 3%RH
Rainfall time1~9999min, adjustable
Rainfall cycle1~240min, interval is adjustable
Xenon lamp light xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200
Heating/humidifying power2.0KW/2.0KW

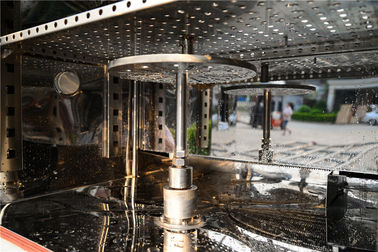

Sample spinning machine speed1~5r/ min (adjustable)
Sample and xenon lamp distance300~375mm
Box materialStainless Steel SUS304#
Insulation materialsSuperfine heat insulation cotton
Insulation bodySuperfine glass fabric
Circulation systemSingle cycle, centrifugal fan
Control systemGermany KLOCKNER-MOELLER progammable controler
Gas processingdischager for fector and harmful gas
Power AC380V, three phase five wire, 10KW
Use environment5°C~+30°C, ≤85%R.H

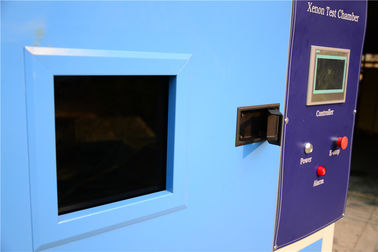

Standard features1. Filtering screen viewing window; 2.Moistureproof lamp
Security ProtectionSecurity device for circuit break,
high pressure of the compressure, high temperature alarm

xenon ageing test chamber

  1. Box shape using CNC machining and elegant, imported high grade stainless steel cabinet liner (SUS304) mirror panel,  box outside the gallbladder with A3 steel spray
  2. Equipment is divided into the main part, heating, humidification, cooling dehumidification section , display control section, air conditioning parts, part of security measures and other accessories section;
  3. Temperature and humidity control devices with high precision the number of total imports of integrated micro computer controller;
  4.  Accuracy:  0.1 (display range); Resolution: ± 0.1 ; temperature sensor: PT100 platinum resistance temperature body;
  5. Control:  heat balance humidity thermostat method;
  6. Temperature and humidity control with P. I. D + S. SR system coordination control with the channel;
  7. It has automatic calculation of the function, temperature and humidity conditions can be amended immediately so that more precise control of temperature and humidity stable.
  8. Refrigerator with the French original, Tecumseh closed compressor.
