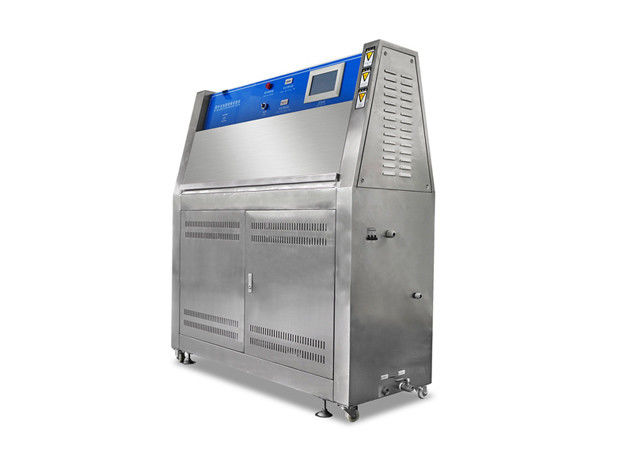

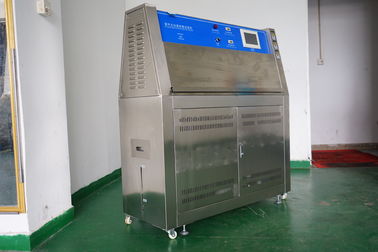

CE Programmable Accelerated Aging Chamber Accelerated Weathering Tester

CE Programmable Accelerated Aging Chamber Accelerated Weathering Tester

CE Programmable Accelerated Aging Chamber Accelerated Weathering Tester
video
CE Programmable Accelerated Aging Chamber Accelerated Weathering Tester
Product Details:
Place of Origin: china
Brand Name: Haida
Certification: ISO9001: 2008, CE, ...
Model Number: HD-E802-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Temperature Control: PID SSR Control Certificate: ISO9001: 2008, CE, ...
Lamp Power: 40W/Piece Materials: Inside And Outside SUS#304 Stainless Steel
Temperature Uniformity: ±2°C Distance From Sample To Lamp: 50±2mm (adjustable)
Testing Time: 0~999H, Adjustable Control Mode: Balance Temperature Humidity Control (BTHC)
Controller: Korean TEMI 880 Programmable Controller Use: Uv Aging Test Chamber
High Light:

ozone test chamber

,

accelerated aging calculator

 CE Certificated Programmable Aging Accelerated Weather Test Instrument





CE Programmable Accelerated Aging Chamber Accelerated Weathering Tester 0UV Accelerated Weathering Tester.pdf



Function:



Meet Specifications

* Meet customer requirements

* Stay ahead of government regulations



Prevent Field Failures

* Improve quality and durability

* Enhance reputation

* Assure product performance



Gain a Competitive Edge

* Save on material costs

* Expand product lines

* Enter new markets

* Outrun the competition



How it Works:

CE Programmable Accelerated Aging Chamber Accelerated Weathering Tester 1





About Product:



UV Weathering Test Chamber can simulate the sun, rain spray and condensation resulting damage to testthe materials by exposure to sunlight with moisture and temperature.



This test machine can get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur,brittle,strength decreases and oxidation. It provides the reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.





Designing Standard:

IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;prEN 1062-4,  BS 2782;JIS D0205;SAE J2020,ect.





Brief Introduction:
UV Accelerated Aging Chamber can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.





Product specification:

Inner chamber Size

40W×114D×38Hcm

Customized

Outside dimension

50W×130D×146Hcm

Materials

SUS#304 stainless steel ( Internal and external)

Temperature range

RT+10~70℃

Temperature uniformity

±1℃

Temperature fluctuation

±0.5℃

Temperature control

PID SSR control

Humidity range:

≥90%RH

Controller

Korean TEMI 880 programmable controller

Control mode

Balance temperature humidity control (BTHC)

Test cycle setting

Illumination, condensation and water spray test cycle is programmable

Lamp power

40W/Piece

Distance from sample to lamp

50±3mm (adjustable)

Centre distance between the lamp

70mm

Irradiance

1.0W/cm2

Wavelength ultraviolet light

UV-A: 315-400nm

UV-B: 280-315nm

Lamp lifetime

1600hrs

Effective irradiation areas

640×1140mm

Illumination temperature range

50℃~70℃

Condensation temperature range

40℃~60℃

Black panel temperature

30℃~80℃

Standard Specimen Size

75×290mm (24pcs) or 75x150mm (48pcs), or can be customized

Testing time

0~999H, adjustable

Power

AC220V±10%, 50/60Hz, single phase, 5KW

Protection system

Overload short circuit protection, over temperature protection, water

lacking protection





Methods for maintenance:


1, UV accelerated aging test equipment during operation, please remember to be sure to keep plenty of water.
2, in the pilot phase should be to minimize the time to open the door.
3, the working indoor sensing means, do not suffer from a strong hitting.
4, after a long time to stop using, for re-use shall be carefully examined water, power and the parts, and then determine the correct boot device.
5, due to ultraviolet radiation on the staff (especially the eyes) have a strong hazards, so the operator should minimize exposure to ultraviolet light time (contact time should be less than 1min). The proposed operating personnel equipped with anti-goggles and jacket.
6, the device in non-working condition, should keep it dry, the water will run out after discharge, dry and studio housing.
7, after use, the plastic housing cover, to avoid dust intrusion. If dust, it should be removed.



TEMI 880 Controller

uv aging test chamber

Programmable LCD controller, can do cyclic test with temp, humid, water spray and condensation.

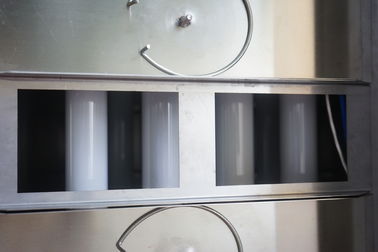

UV lamps

uv aging test chamber

UV-A and UV-B lamps for option





Sample Holder

uv aging test chamber

Test specimens are mounted on both the front and back side of the UV Tester, providing a large sample

capacity.

Sample holder can be customized.



Experimental method


Method 1: 8 hours of ultraviolet light, a test temperature of 60 degrees, 4 hours condensation, the test temperature of 50 degrees
Method 2: 4 hours of ultraviolet light, a test temperature of 60 degrees, 4 hours condensation, the test temperature of 50 degrees
Method 3: 8 hours of ultraviolet light, a test temperature of 50 degrees, 4 hours condensation, the test temperature of 45 degrees
Method 4: four hours of ultraviolet light, the test temperature is 50 degrees, condensing 4 hours, the test temperature of 45 degrees
Method 5: 1000 hours of ultraviolet light, the test temperature of 60 degrees
Method 6: UV light 300 hours, the test temperature of 80 degrees
