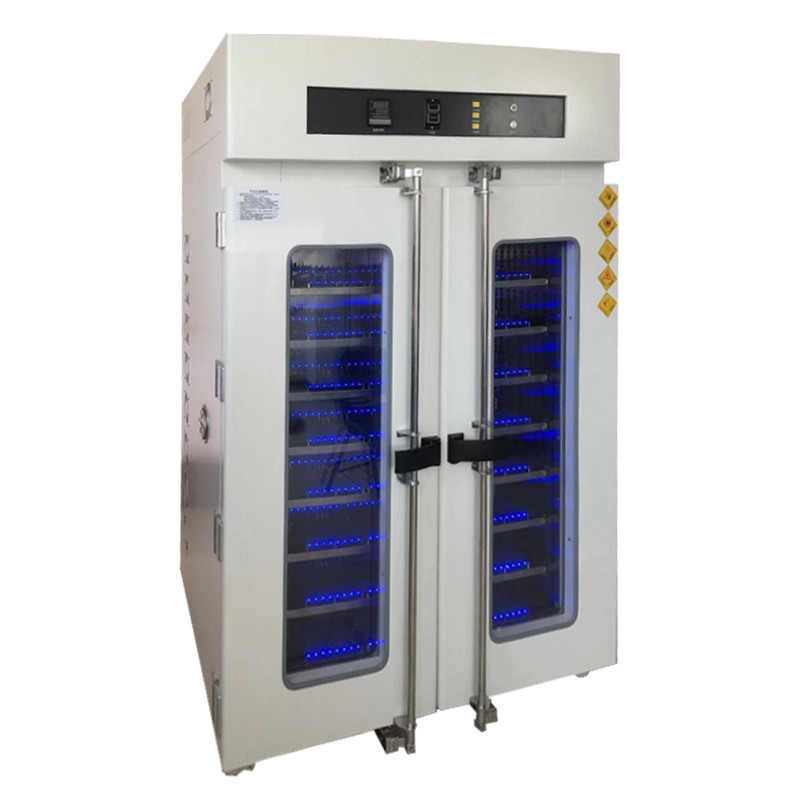

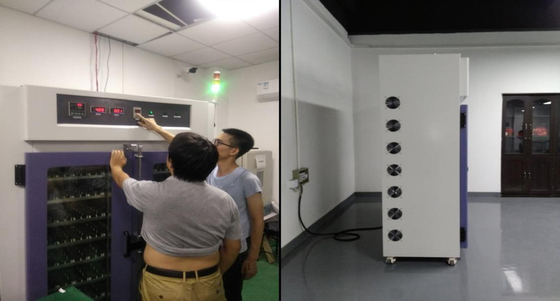

Overview of Equipment Functions:

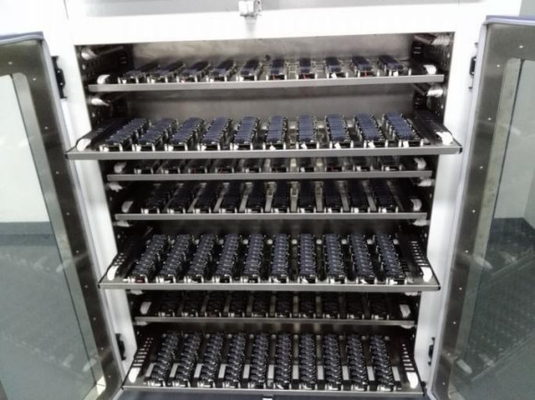

1, BGA aging board 26 sets, each set p ut 64 BGA132 particles, full load test that is 1664 pcs;

2,Power supply AC/DC12V 650W, 64pcs, can meet the power of each product: 5V, 2A test;

3,Each aging board can be switched by pushing and pulling independently, which can realize the disassembly and installation of pellets outside the oven box;

4, internal temperature hot air circulation, from the left and right sides into, the middle of the top return air;

5,The left and right sides have fully automatic fresh air inlets, when the temperature of the inner box products exceeds the temperature, the middle extractor fan forcibly

When the temperature of the product in the inner box exceeds the temperature, the middle extractor fan will be forced to extract air;

6,The temperature monitoring point of the inner box is 4 ways, the upper, middle, and lower part of the display, the main control temperature point is 1 way;

Aging Cabinet Control Methods and Features:

1,Performance: Balanced temperature control system (BTC), PID mode control SSR, so that the heating of the system is equal to the heat loss, so it can be used stably for a long time.

2,Temperature range: RT+15℃～100℃

3,Temperature fluctuation:±1℃

4,Temperature uniformity: no load ±2℃, with load ±5℃

5,Rate of temperature rise: 5℃/min (room temperature +5℃ and 100℃±2℃)

6,Time setting: 0~9999H can be set arbitrarily

Machine Sheet Metal Structure:

1,Material of the inner box: SUS # 304 foot 1.2 thick stainless steel plate

2,Outer box material: cold-rolled steel plate, galvanized anti-rust treatment, with high-grade resin baking paint coating

3,Insulation material: hard imported rock wool (Cecil 120K rock wool)

4. Heater: finned heat sink tubular stainless steel heater (Taiwan Taizhan nickel-chromium alloy wire)

Air Supply Circulation System:

1,Circulation motor 2 sets (Taiwan high-temperature motor)

2, diameter Ø19 extended stainless steel shaft length 180mm

3, 10.5-inch multi-wing type high-temperature resistant wind wheel (special customized by the famous factory)

4,Adjustable side blowing air outlet and return air outlet with the protection net

5,Cold air input in the duct, automatic pneumatic valve control

6,Over-temperature forced exhaust air blower forced exhaust device

Circuit Control System:

1,Temperature controller: original Taiwan Willing LCD programmable temperature controller, with a PC communication function

2,Screen display function: temperature setting (SV) and actual (PV) value directly displayed

3,Sensor: high precision Taiwan Songqi PT100 type temperature sensor

4,Temperature control: output power is calculated by a microcomputer to achieve a high precision control effect

5,Timing function: 0-9999H/M/S. With long time timing, constant temperature timing, untimed selection switch and time to automatic stop function

Safety Protection Devices:

1,Temperature over-temperature protection function

2,Motor over-current protection

3,Electricity leakage protection

4, Phase loss protection

5, Power overload protection

6, Sound and light alarm

Air Conditioning System:

• air conditioning method: forced ventilation internal balance of temperature regulation method (BTC). This method means that the heating system is working continuously, and the control system is according to the set temperature point through the PID automatic operation The output results to control of the output of the heater, and finally achieve a dynamic equilibrium state.
• Air circulation device: inside and outside fresh air adjustable air inlet and outlet, circulation duct, and long shaft centrifugal extract fan, using efficient energy regulation system, through the efficient ventilation fan for effective exchange, to achieve the purpose of temperature change. By improving the air flow and the ability to exchange heat with the heater and air table cooler, the temperature uniformity of the chamber is greatly improved.

Electricity Supply System:

List of Main Configurations:

Environment & Facilities:

1,Operating ambient temperature ≤35℃

2,Water pressure for supply and drainage: None

3,Air supply air pressure: No 13
