Product Details:
|
| Temperature Range: | RT To 70℃ | Temperature Fluctuation: | ≤±1.0℃ |
|---|---|---|---|
| Water Usage: | 8L/day | Chamber Dimension (W*D*H): | 1300*500*1460mm |
| High Light: | Humidity Control UV Aging Test Chamber,Balance Temperature UV Aging Test Chamber |
||

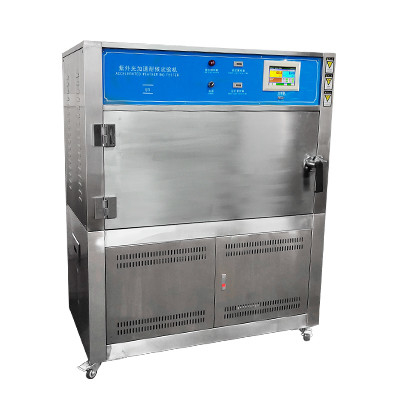

Balance Temperature Humidity Control UV Aging Test Chamber
Include 8pcs UVB Lamps
HD-E802-4 UV Aging Chamber.pdf
PRODUCT PROFILE
UV Accelerated Aging Test Chamber can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
STANDARD FEATURES
| Item | Specification |
| Internal dimension (W*D*H) | 1140*650*500mm |
| External dimension (W*D*H) | 1340*700*1800mm |
| Chamber material | SUS#304 stainless steel |
| Temperature range | RT to 70℃ |
| Temperature fluctuation | ≤±1.0℃ |
| Temperature uniformity | 3℃ |
| Humidity range: | ≥75%RH |
| Controller | Programmable controller, LCD touch screen |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
| Water spray cycle | Spray 18mins in every 120mins / spray 12mins in every 60mins |
| Water usage | 8L/day |
| Distance from sample to lamp | 55±2mm |
| Centre distance between lamps | 65~70mm |
| Irradiance range | 0.45~0.95W/m2 |
| UV lamps | Imported Atlas UV-B: 280-315nm (8pcs, 1600h lifetime) |
| Lamp power | 40W/Piece |
| Specimen Size | Irregular sample |
| Testing time | 0~999H, adjustable |
| Protection system |
Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection |
APPLICATIONS
1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
TEST CRITERIA
ISO 4892-3
ASTM G154
THE INTRODUCTION OF HAIDA
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
