Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control

Large Image : Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	CE,,ISO
Model Number:	HD-B617S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 Days After Order
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	75 Piece / Pieces Per Month

Contact Now

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control

Description

Frame Capacity:	500kg	Load Cell Brand:	Load Cell Brand Germany Brand Load Cell For High Accuracy 500kg (5,10,50,100,200kg Are Optional)
Control System:	LCD With Build-in Printer /PC With Windows 7 System	Motor:	Panasonic Servo Motor W/AC Variable Speed Drive System, High-precision Mechanical Ball Screw Rod
Force Reading:	Kgf, Ibf, N, KN, T Etc	Vertical Test Space:	1400mm Including Fixture
Test Speed:	0.1~500mm/min (adjustable)	Software:	TM 2101
Highlight:	Computer Control Pull Test Machine , Automatic Anti Stretch Pull Test Machine , Single Column Tensile Test Machine

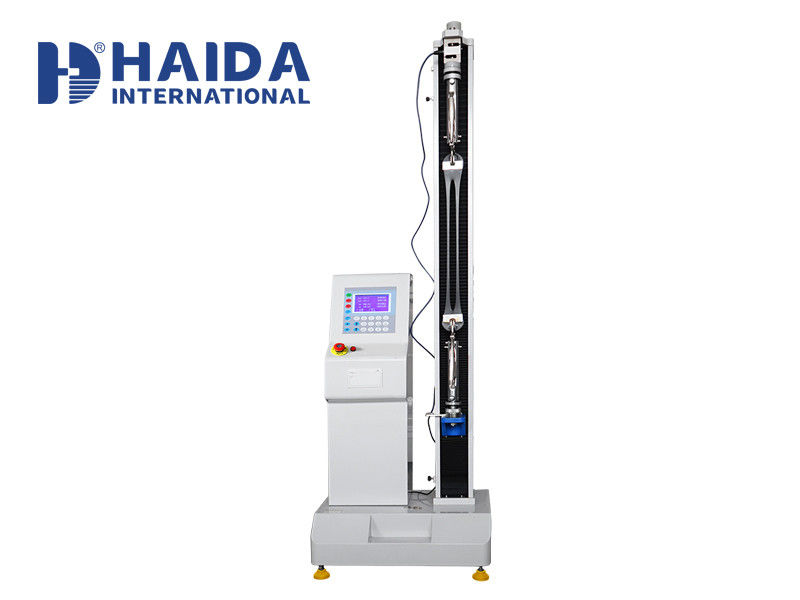

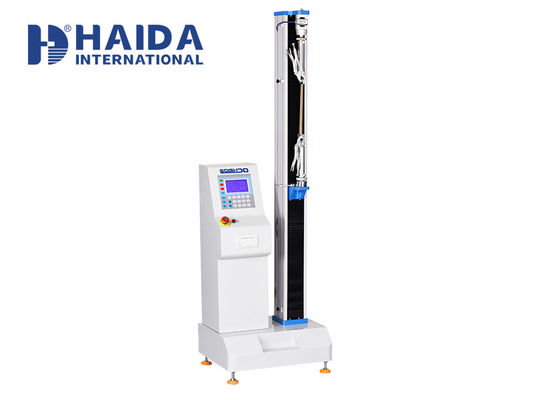

Single Column Automatic High-Precision Computer Control Anti-Stretch Pull Test Machine

APPLICATIONS

1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

3. Deformation under defined load: Test deformation under defined load of tested sample

4. Load under defined deformation: Test load under defined deformation of tested sample

5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 0

STANDARD FEATURES

Item	Description
Frame capacity	500kg

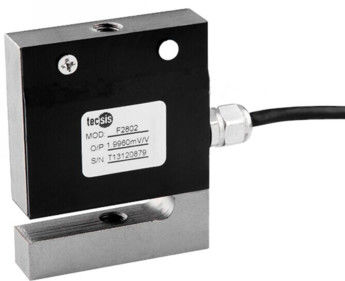

Load cell brand	Germany brand load cell for high accuracy 500kg (5,10,50,100,200kg are optional)
Load accuracy	0.5% F.S
Control system	LCD with build-in printer /PC with windows 7 system

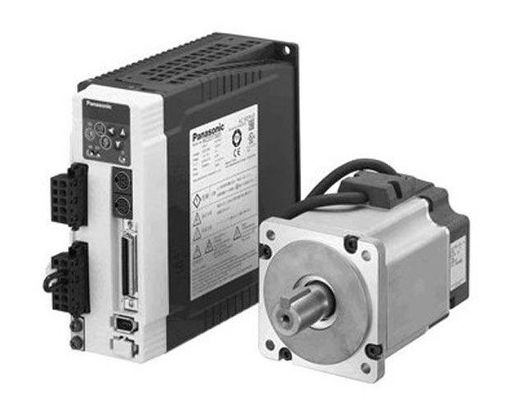

Motor	Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	1400mm including fixture
Test speed	0.1~500mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm²) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 1

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 2

User setting page

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 3

Curves display picture

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 4

Test result picture

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 5

Test curve page

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 6

Single Column Automatic Anti Stretch Pull Test Machine High Precision Computer Control 7
