Product Details:
|
| Frame Capacity: | 200kg | Load Cell Brand: | Germany Brand Load Cell For High Accuracy 2000kg (500,1000kg Are Optional) |
|---|---|---|---|
| Test Speed: | 0.1~500mm/min (adjustable) | Software: | TM 2101 |
| Curves Display: | Load- Elongation, Elongation-time, Time-elongation, Stress-strain | Data Display: | Max. Force, Speed, Sample Information, Strength(Kpa, Mpa, N/mm, N/mm2) Etc… |
| Safety Features: | Upper And Lower Limit Switches Load Sensor With Automatic Retreat | ||
| High Light: | 2KN Stretch Force Testing Machine,Double Column Stretch Force Testing Machine |
||
Made In China 50N-2KN Double Column Computer Control Stretch Force Testing Machine
Applications
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Deformation under defined load: Test deformation under defined load of tested sample
3. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force
5. Load under defined deformation: Test load under defined deformation of tested sample
STANDARD FEATURES
| Item | Description |
| Frame capacity | 2000kg |
| Load cell brand |
Germany brand load cell for high accuracy 2000kg (500,1000kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1200mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |

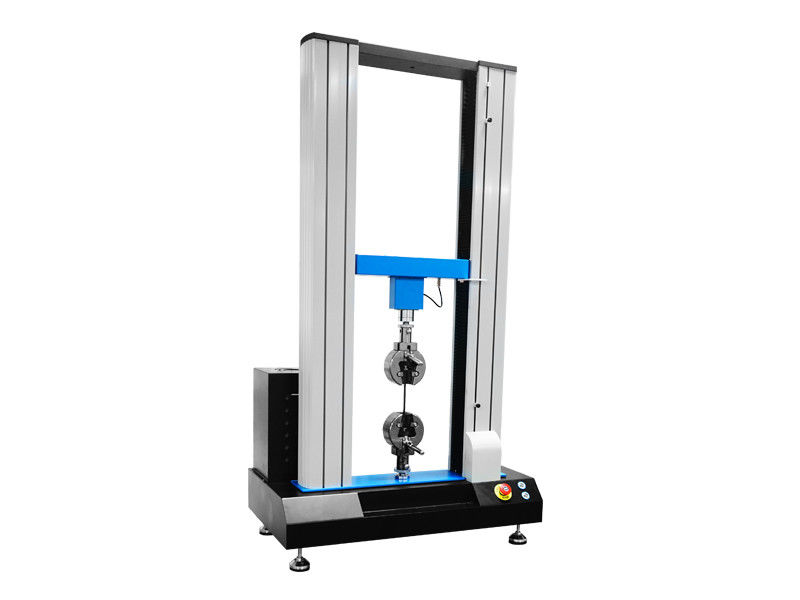

Product Image:
Product Features:
1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
2. Control system: Microcomputer
3. Displacement resolution: 0.001mm
4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.
HAIDA TEST EQUIPMENT TEST STANDARDS FOR SHARING
Rubber
ASTM D412, ISO 37-2005, JIS K6251, DIN 53504-2009: Tensile Strength & Elongation Test
ASTM D1149-07, ASTM D1171-99, ISO 7326, ISO1431-1, DIN 53509-1: Ozone Aging Test
ASTM D624-00, ISO 34-1: Tearing strength Test
ASTM D395-03, ISO 815-1: Compression Set Test
ASTM D2240-05, ISO 7619-1, JIS K6253, ISO 868: Shore Hardness Type A/D
ASTM D573, ASTM D865, ISO188 Method B, DIN 53508 High/ Low Temperature Test
ISO 2781(Method A): Density Test
ASTM D5289-95/ ISO6502: No-Rotor Rheometer/Curemeter
ASTM D1646: Mooney Viscometer
Foam
ASTM D3574 Test E, ASTM D1623, ISO 1798: Tensile Test
ASTM D3574 Test F, ISO 8067: Tear Test
ASTM D3574 Test A: Density Test
ASTM D3574 Test B1, ISO 2439: IFD Test
ASTM D3574 Test H: Resilience (Ball Rebound) Test
ASTM D3574 Test I3: Dynamic Fatigue Test by Constant Force
Metal
ASTM E8, EN 10002-1,ASTM A370: Tensile Test
ASTM A370: Bend Test
ASTM B-117, ISO 3768: Salt Spray Test
ISO 6508: Rockwell Hardness Test
ISO 6507: Vickers Hardness Test
ISO 6506, ASTM E10-14: Brinell Hardness
ASTM E23, ISO 148: Impact Test
