Product Details:
|
| Packaging Dimensions: | (L*W*H) 1650*1400*2500mm | Power: | Hydraulic, Electronic |
|---|---|---|---|
| Gross Weight: | 1400kg | Motor: | Servo Motor |
| High Light: | Hydraulic Servo Universal Test Machine,200MM/Min Universal Test Machine,300KN Hydraulic Tensile Testing Machine |
||

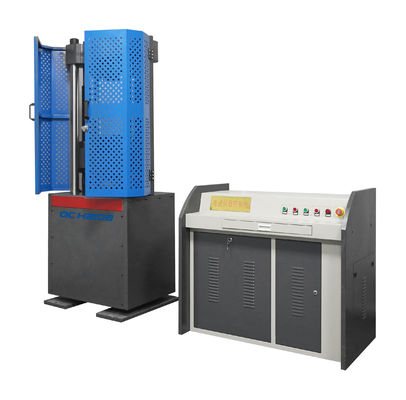

Hydraulic Servo Universal Test Machine
STANDARD FEATURES
| Max. capacity | 300KN |
| Measure range | 2%-100%FS |
| Sensor | Transcell load cell |
| Load Accuracy | ±1% |
| Elongation resolution | 0.01mm |
| Elongation accuracy | ±1% |
| Available tensile stroke | 600mm |
| Available compression stroke | 600mm |
| Test width | 500mm |
| Test Speed | 0.01-200mm/min |
| Round sample diameter | φ9-φ26mm |
| Flat sample thickness | 0-20 mm |
| Compression diameter | φ120mm |
| Clamp control | Hydraulic |
| Operation control & display | PC |
| Screw | High precise ball screw |
| Motor | Servo Motor |
| Software | MaxTest |
| Host Machine dimension | (L×W×H) 350*670*1800mm |
| Weight | Approx.1400KG |
| Power | 3∮, AC380V±10%, 50Hz |
APPLICATIONS
This machine with underneath type oil cylinder and four columns structure is mainly used to do tension, compression, bending, shearing test for metal materials, non-metal material. It is applied for fields of metallurgy, construction, light industry, aviation, aerospace, materials, universities, scientific research units, etc.
