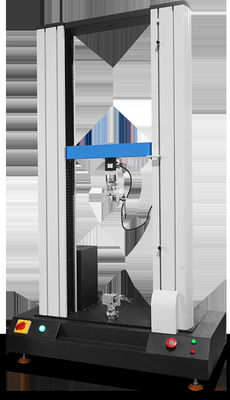

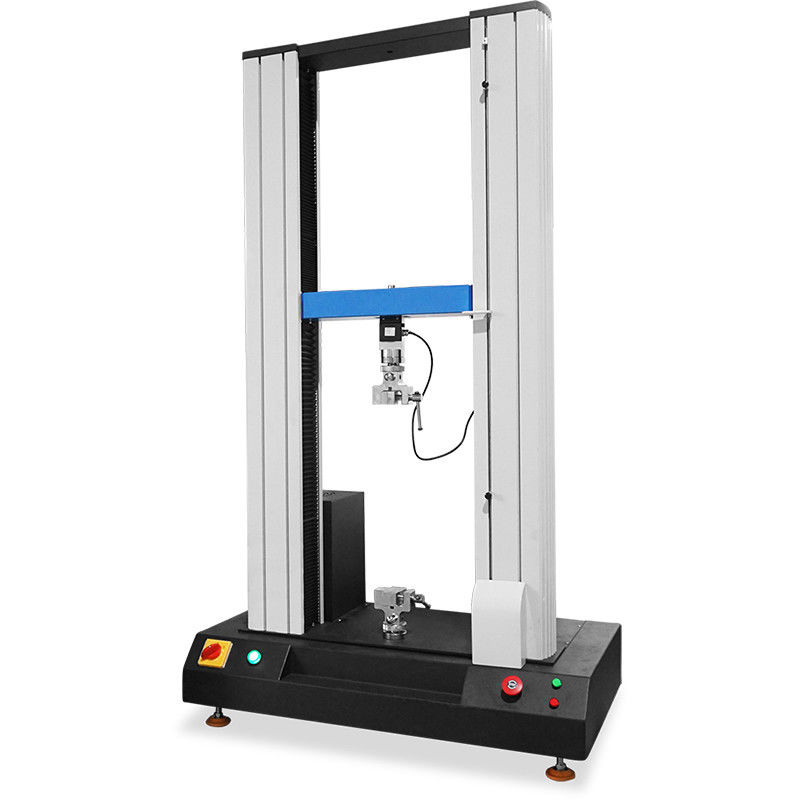

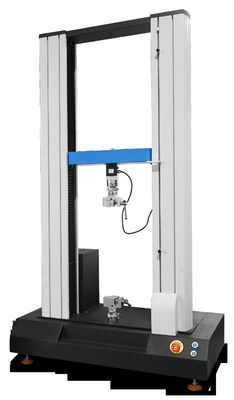

Double Column 1200mm 0.5% F.S Tensile Test Machine

Double Column 1200mm 0.5% F.S Tensile Test Machine

Double Column 1200mm 0.5% F.S Tensile Test Machine
video
Double Column 1200mm 0.5% F.S Tensile Test Machine
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Model Number: HD-B604-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per Month Haida
Contact Now
Detailed Product Description
Frame Capacity: 2000kg Load Cell Brand: Germany Brand Load Cell For High Accuracy 2000kg (500,1000kg Are Optional)
Load Accuracy: 0.5% F.S Control System: PC With Windows 7 System
High Light:

1200mm Tensile Test Machine

,

0.5% F.S Tensile Test Machine

,

1200mm tensile test apparatus

Computer Servo Double Column Universal Test Machine



GENERL SPECIFICATIONS

Estimated Packaging Dimensions: (W*D*H) 690*1080*1790mm

Power supply source: single-phase, 220V, 50/60Hz (can be appointed)

Estimated Gross Weight: 250kg

HS Code: 9024800000







STANDARD FEATURES



Item Description
Frame capacity 2000kg
Load cell brand

Germany brand load cell for high accuracy

2000kg (500,1000kg are optional)

Load accuracy 0.5% F.S
Control system PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 1200mm including fixture
Horizontal test space ≤400mm
Test speed 0.1~500mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat





APPLICATIONS

  1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

QUALITY ASSURANCE

1. The guarantee period with FOC within 1 year (not including expendable parts cost and transport & travel fees)

1.1 During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part (just for non-expendable part) caused by non-human reasons;

1.2 If any quality problems occur within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by buyer;

1.3 If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by buyer, also charge for a favorable price for new parts;

1.4 Haida will provide a lifetime favorable price to the buyer for expendable & non-expendable parts used in system operation, equipment maintenance;



2. The following conditions need to be paid reasonably even in the guarantee period:

2.1 Natural disaster

2.2 Operating mistakes

2.3 Voltage is not fit for our manual

2.4 Uninstall without our guides

2.5 Damaged for borrowing to others

2.6 Damaged for without authorized machine modification

2.7 Damaged for without authorized calibration

2.8 Without authorized transshipment mistake



3. Attentions: the machine cannot be used following situations:

3.1 Vibration, rocking place.

3.2 Direct sunlight.

3.3 Hot, dusty, damp places.

3.4 To ensure safe, AC supply of the machine should be well grounded.

3.5 Do not use strong solvents (such as: benzene, nitro oil) washing machine.

3.6 Do not inject water and debris into the machine to prevent damage to electrical components and electrical shock.

3.7 Machine’s disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
