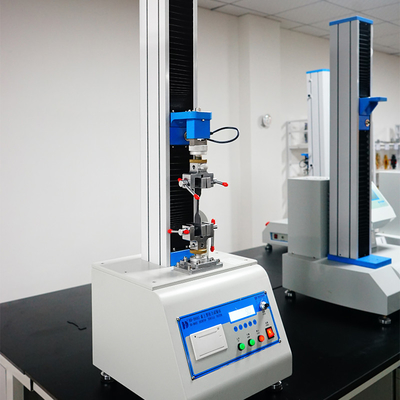

Economic Single Column Desktop Electrical Universal Test Machine

Economic Single Column Desktop Electrical Universal Test Machine
Economic Single Column Desktop Electrical Universal Test Machine
Economic Single Column Desktop Electrical Universal Test Machine Economic Single Column Desktop Electrical Universal Test Machine Economic Single Column Desktop Electrical Universal Test Machine

Large Image :  Economic Single Column Desktop Electrical Universal Test Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Model Number: HD-B602
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per Month Haida

Economic Single Column Desktop Electrical Universal Test Machine

Description
Frame Capacity: 200kg Load Cell Brand: China Brand, 200kg (5,10,50,100kg Are Optional)
Load Accuracy: 1% F.S Control System: Controller With LED
High Light:

200kg universal test machine

,

50mm/Min universal test machine

,

50mm/Min uv aging test chamber

Economic Single Column Desktop Electrical Universal Test Machine



Standard Features

Item Description
Frame capacity 200kg
Load cell brand China brand, 200kg (5,10,50,100kg are optional)
Load accuracy 1% F.S

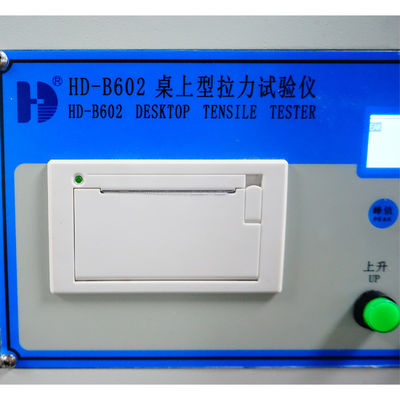

Printing Built-in Printer

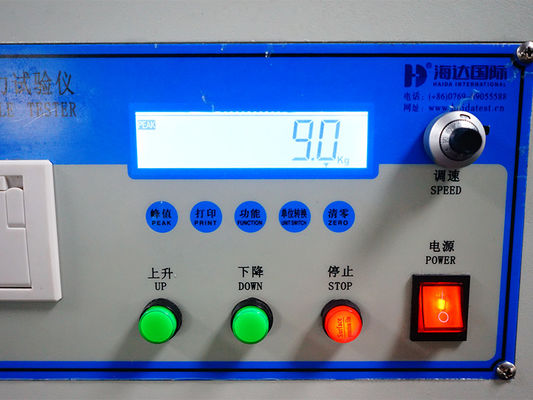

Control system Controller with LED
Motor Adjustable-speed motor, ball screw rod
Force reading KG/N/LB
Vertical test space 900mm including fixture
Test speed 50~300mm/min (adjustable by rotary knob)
Software TM 2101
Data display Max. break force
Safety features

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat

Economic Single Column Desktop Electrical Universal Test Machine 0

Applications

Yarn Tensile Testing Machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps for paper, tape, film, etc.



HAIDA TEST EQUIPMENT TEST STANDARDS FOR SHARING

Adhesives Tape/Pressure Sensitive Tape

  • EN 1719: Loop Tack Test
  • ASTM D3654: Shear Adhesion Test
  • ASTM D3759: Tensile &Elongation Test
  • FTM: 180&90 Degree Peel Test, Loop Tack
  • EN 1939, ASTM D3330: 180&90 Degree Peel Test
  • ISO 11339, ASTM D1876,ASTM F2256: T-type Peel Test

Adhesive

  • ASTM D903: Peel & Stripping Test
  • ASTM D1002:Shear Strength (Adhesive for metal to metal)
  • ISO 4587: Tensile lap-shear strength (Rigid-to-rigid bonded assemblies)

Film/ Plastic Film

  • ASTM D882: Tensile Test
  • ASTM F1306: Puncture Test
  • ASTM D1938:Trouser Tear Test
  • ASTM D2732: Thermal Shrinkage Test
  • ASTM D1709, ISO 7765-1: Free-Falling Dart Method
  • ASTMD1894:Static and Kinetic Coefficients of Friction
  • ASTM D1424, ASTM D1922,ISO 1974:Elmendorf Tearing Strength Test

Plastic& Plastic Pipe

  • ISO 180: Izod Impact Test
  • ISO 9966: Ring Stiffness Test
  • ISO 179: Charpy Impact Test
  • ISO 4892: Weathering Aging Test
  • ASTM D3163: Plastic Lap-Shear Test
  • ISO 4422, ISO 3127: Pipe Impact Test
  • ASTM D4565, ISO 11357, EN 728: DSC/OIT
  • ISO 75: Heat Deflection Temperature (HDT)
  • ASTM D1598:Hydrostatic Pressure and Burst Test
  • ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
  • ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
  • ISO 306,ASTM D1525: Vicat Softening Temperature (VST)
  • ASTM D882, ASTM D 638, ISO 527,ASTM D1708: Tensile Test

Quality Assurance

1. The guarantee period with FOC within 1 year (not including expendable partscost and transport&travel fees)

1.1 During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for non-expendable part) caused by non-human reasons;

1.2 If any quality problems occur within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by buyer;

1.3 If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by buyer, also charge for a favorable price for new parts;

1.4 Haida will provide a lifetime favorable price to the buyer for expendable & non-expendableparts used in system operation, equipment maintenance;



2. The following conditions need to be paid reasonably even in the guarantee period:

2.1 Natural disaster

2.2 Operating mistakes

2.3 Voltage is not fit for our manual

2.4 Uninstall without our guides

2.5 Damaged for borrowing to others

2.6 Damaged for without authorized machine modification

2.7 Damaged for without authorized calibration

2.8 Withoutauthorized transshipment mistake
