|Design Standards:||EN1888||Control Modes:||Manual Control|
|Test Surface Material:||P-60 Sandpaper||Angle:||0 ° - 20|
laboratory testing equipment,
lab testing equipment

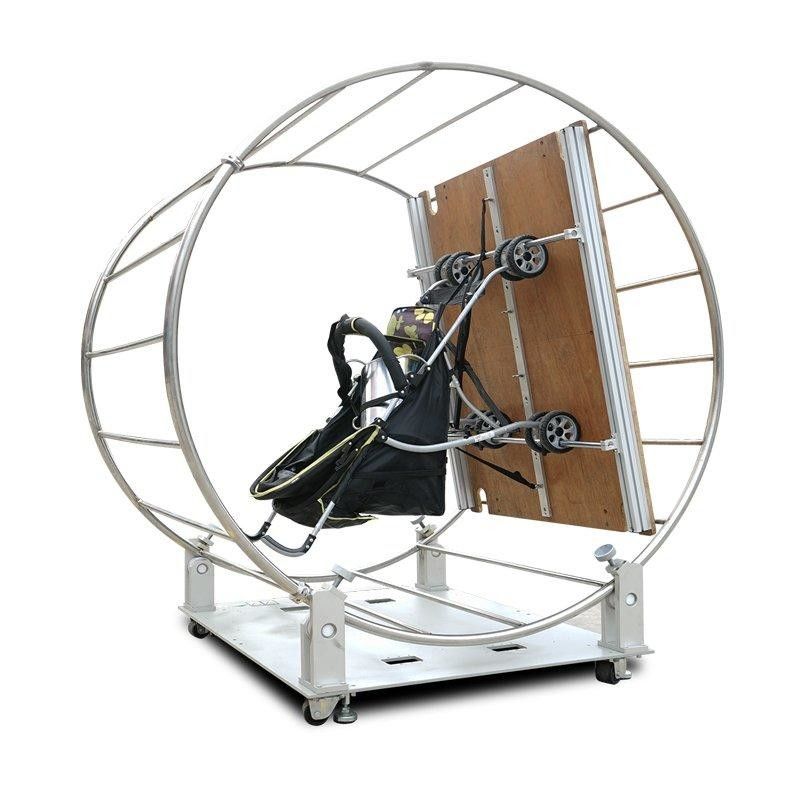

100 Degree Baby Carries Rotation Test Table Stroller test
the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.
|Control modes||manual control|
|Test surface material||P-60 sandpaper|
|Angle Accuracy Tolerance||<1 degree|
|Angle||0 ° - 20|
Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures.
Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center.
If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional.
Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground.
Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame. Test steps:
1, the test weight is placed on the baby inside the car, the four wheels of the stroller on the table;
2, manually wheel turn in the same direction 100 °, back in situ, and then reverse direction to turn 100 °;
3. Observe the testing process, withthechangesofpositionbyforce, strollers parts of the forcetotearcause damage;
