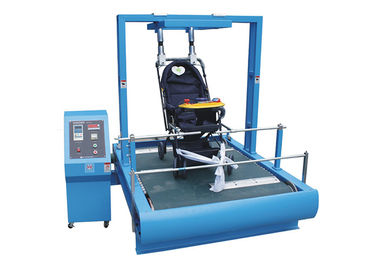

EN 1888 Stroller Handle Strength Tester Laboratory Testing Machines With Touch Screen

EN 1888 Stroller Handle Strength Tester Laboratory Testing Machines With Touch Screen

    • EN 1888 Stroller Handle Strength Tester Laboratory Testing Machines With Touch Screen
    • EN 1888 Stroller Handle Strength Tester Laboratory Testing Machines With Touch Screen
    • EN 1888 Stroller Handle Strength Tester Laboratory Testing Machines With Touch Screen
  • EN 1888 Stroller Handle Strength Tester Laboratory Testing Machines With Touch Screen

    Product Details:

    Place of Origin: China
    Brand Name: haida
    Certification: ISO
    Model Number: HD-J214

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
    Delivery Time: 20 days after order confirmed
    Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability: 300 Sets per Month
    Contact Now
    Detailed Product Description
    Product Name: Stroller Handle Strength Tester Test Displacement: Move Up And Down 120~150mm
    Effective Width: Max.800mm Test Count: 0-999,999
    High Light:

    laboratory testing equipment

    ,

    lab testing equipment

    EN 1888 Stroller Handle Strength Tester Lab Test Machine With Touch Screen





    Application:

    Every day children are hurt when interacting with products in their daily environments, even with products made especially for children, such as the baby strollers, baby carrie, baby toys, baby bed etc…



    HD-J214 Stroller Handle Strength Tester is designed based on EN 1888 Cluase 8.10.6 requirments, which can help the manufacturer and the testing orginzation to finished the handle strength test.





    Standard Features:



    Test displacement: Move up and down 120~150mm
    Adjust the distance of handle: Max 200 mm
    Effective width: Max.800mm
    Test count: 0-999,999
    Air pressure requirement: ≤7kgf/cm
    Display LED display (LCD touch screen for option)
    USB Readout Optional
    EN 1888 clause 8.10.6 requirements
    Test Cycle 10 000 cycles
    Frequency (15 ± 2) cycles/min
    Height raised rear w& front wheels in turn are raised (120 ± 10) mm

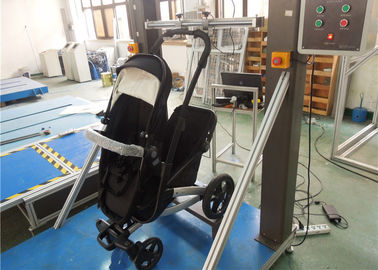

    Stroller Movement Based On EN 1888 clasue 8.10.6

    Stroller Handle Strength Tester







    Test Special Requirments On Handle Strength Test:

    Where the downwards force necessary to lift the front wheels exceeds 450 N, carry out the test by applying alternately a downwards 450 N force and an upwards force necessary to raise the rear wheels for 3 000 cycles at a frequency of (15±2) cycles/min, then continue the test by only raising the rear wheels (120±10) mm for additional 7 000 cycles at a frequency of (15 ± 2) cycles/min.



    Above is special requirements for the handle strength test, please kindly contact manufacturer to upgrade this function in the machine.
