Product Details:
|
| Product Name: | Sponge Foam Compression Testing Machine | Head Speed: | 100MM/MIN |
|---|---|---|---|
| Indentation Hardness Measurement Range: | 0-2000.0 N | Force Minimum Resolution: | 0.25 N |
| High Light: | compression testing machine,fatigue testing machine |
||

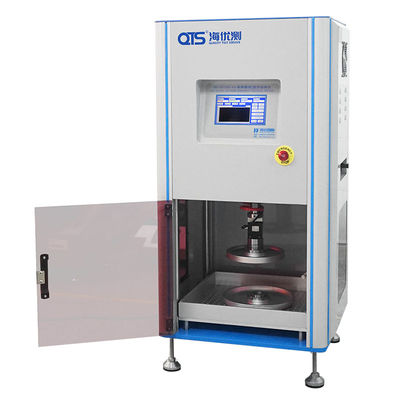

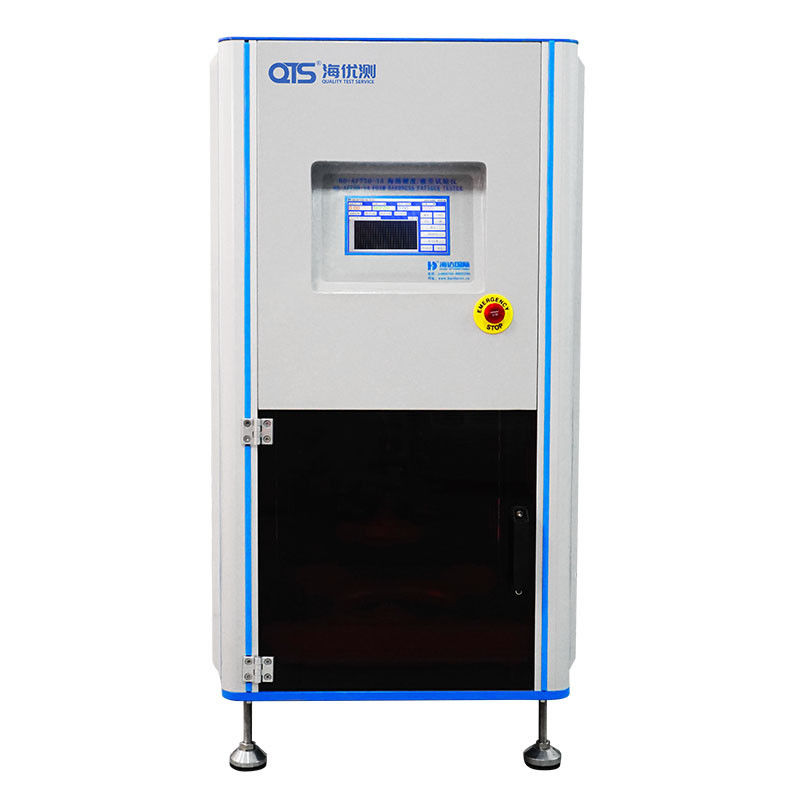

Sponge Foam Compression Fatigue Testing Machine Head Speed 100MM/MIN
Product Introduction:
Foam testing machine is mainly used for fatigue reciprocating foam polymeric material compression test, determination of resilience formation rate. Then we can know the dynamic fatigue properties of materials.
The Main Technical Parameters:
| head speed: 100MM/MIN; | indentation hardness measurement range: 0-2000.0 N |
| force minimum resolution: 0.25 N | the measurement accuracy: <1% |
| indentation deformation precision < ± 0.25% | loading capacity values: 0-2000N adjustable |
| the table size: length 600mm width *600mm* high 300mm (support plate size is larger than the table size) | head size: 0.0314 square meters (the effective stroke head from a to 200mm) |
| stop automatically after the test, print the test report. | host size: 750*750*900mm |
| the power supply specification: 220V, 500W | ambient temperature: room temperature |
| environmental humidity: ≤ 80% |
Sponge Indentation Hardness and Fatigue Tester Main Parts:
PLC Huichuan
Touch screen KunLun on state
Electric Taiwan Auban and Japan Panasonic servo motor
Electrical accessories OMRON
The sensor made in China
Reducer Taiwan brand
