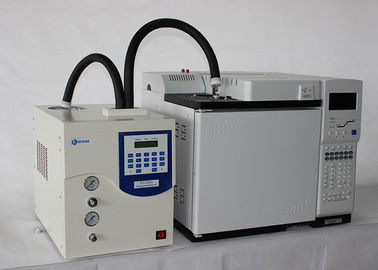

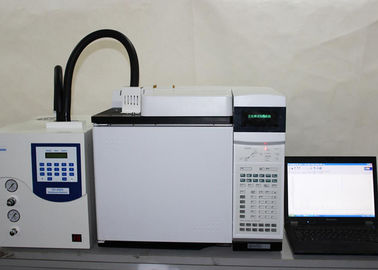

Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector

Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector

  • Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector
  • Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector
  • Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector
  • Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector
Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector
Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Contact Now
Detailed Product Description
Product Name: Gas Chromatograph Minimum Detectable Limit: <400pg C3H8/ml(He)
Dynamic Linear Range: ≥107(±10%) Data Acquisition Frequency: The Highest: 100Hz
High Light:

laboratory testing equipment


lab testing equipment

Automatic Sampling Gas Chromatograph Lab Test Machines With PID Detector


Product Description:

Automatic sampling gas chromatograph is used for quantitative and qualitative analysis to determine the physical and chemical constants such as the distribution coefficient, activity coefficient, molecular weight and surface area of the sample in the fixed phase. An instrument for analyzing the components of a mixed gas.


Application industry

1. Analysis of dissolved gas in transformer oil;

2. Analysis of ethylene oxide in medical devices.

3. Analysis of coke oven gas;

4. Pesticide residue analysis;

Alcohol analysis in blood; 5.

6. Analysis of natural gas and liquefied gas;

7. Indoor environment TVOC analysis;

8. Analysis of liquor components;

9. High purity gas analysis;

10. Detection of solvent residue of packaging materials.



Column temperature Box
Furnace Size 28×30×18cm
Temperature control Range Above room temperature5℃~450℃;Using liquid nitrogen cold traps:-80℃~400℃;Using dry ice traps:-55℃~400℃
Temperature setting accuracy 0.1℃
Maximum program heating rate 120℃/min
Maximum once method run time 999.99min
Program temperature maximum order 7 stages
Program heating rate 0.1~120℃/min(Incremental 0.1℃)
Operation Column loss compensation (dual channel)
Heating Zone
6 independent control Heating zone control (excluding furnace temperature, two inlet, two detectors, two auxiliary heating area auxiliary heating zone maximum operating temperature )
Hydrogen Flame Ionization detector FID
Maximum operating temperature 450℃
Minimum detectable limit ≤2.5pgC/s [n-C16]
Dynamic linear range ≥107(±10%)
Data acquisition frequency The highest: 100Hz
Thermal conductivity cell detector TCD
Maximum operating temperature 400℃
Minimum detectable limit <400pg C3H8/ml(He)
Dynamic linear range 105(±5%)
data acquisition frequency The highest: 100Hz
Flame photometric detector FPD
Maximum operating temperature 250℃
Minimum detectable limit <4pgC/sec,<1pg P/sec
Selective 105gS/gC,106gP/gC
Dynamic linear Range >103S,>104P
Electronic Capture Detector ECD
Maximum operating temperature 400℃
Detector compensation Gas Type 5% Methane/Argon or nitrogen
Minimum detectable limit <0.01Ppg/s lindane
Dynamic linear range >5×1055
data acquisition frequency Max 100Hz
Radioactive sources <12mCi 63Ni
Nitrogen and phosphorus detectors NPD
Maximum operating temperature 450℃
Minimum check out limit <0.2 pg N/sec,<0.2 pg P/sec
Dynamic linear Range 105N,105P
Minimum detection limit <0.3pg C/Sec
The above detectors are suitable for filling column and capillary column
Optional configuration
Anti-control software Automatic Feed b6891n


The table parameters is for the company Standard Model parameters, we support customer customization parameters


Accurate furnace temperature tracking design


Independent Heating small column box In the multi-column chromatographic system, the temperature of different columns can be set respectively, so as to achieve the best separation effect of each column.


Fully imported Valve configuration system Up to 8 valves (four-pass valve, six-pass valve, ten-pass valve and liquid injection valve optional); Automatic control, sequence operation;


Pneumatic cutting technology for the convenience of implementation

Multi-dimensional chromatographic function to complete the separation and analysis of complex samples It can realize the inverse blowing function of chromatographic column to save the analysis time and cycle greatly.

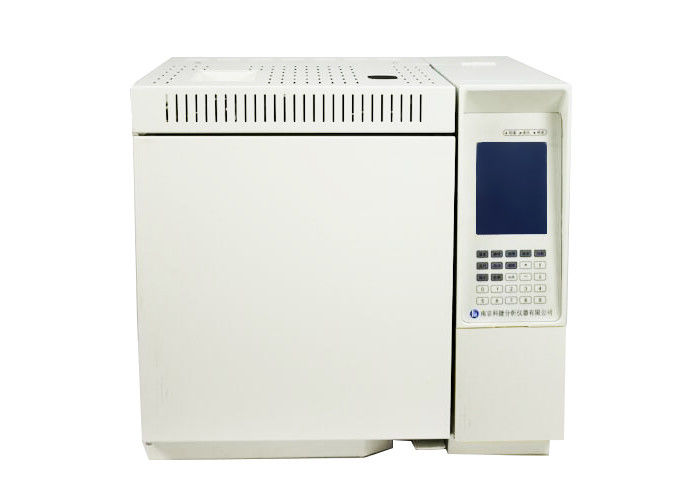

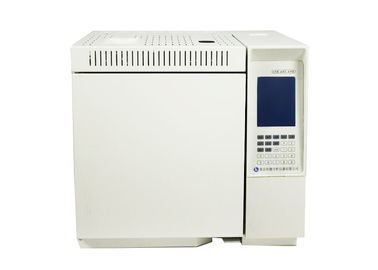

gas chromatograph


gas chromatograph




Q:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair

your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?

A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
