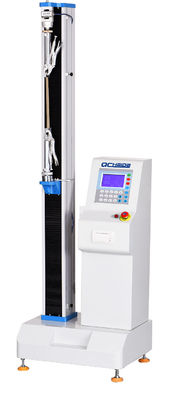

High Precision Computerized Single Column Stretch Resistance Utm Testing Machine

High Precision Computerized Single Column Stretch Resistance Utm Testing Machine
High Precision Computerized Single Column Stretch Resistance Utm Testing Machine
High Precision Computerized Single Column Stretch Resistance Utm Testing Machine High Precision Computerized Single Column Stretch Resistance Utm Testing Machine High Precision Computerized Single Column Stretch Resistance Utm Testing Machine High Precision Computerized Single Column Stretch Resistance Utm Testing Machine High Precision Computerized Single Column Stretch Resistance Utm Testing Machine High Precision Computerized Single Column Stretch Resistance Utm Testing Machine

Large Image :  High Precision Computerized Single Column Stretch Resistance Utm Testing Machine

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: HD-B617S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida

High Precision Computerized Single Column Stretch Resistance Utm Testing Machine

Description
Frame Capacity: 500kg Load Accuracy: 0.5% F.S
Control System: 0.001mm Force Reading: LCD With Build-in Printer /PC With Windows 7 System
Vertical Test Space: 1400mm Including Fixture Test Speed: 0.1~500mm/min (adjustable)
Software: TM 2101 Load Cell Brand: Germany Brand Load Cell For High Accuracy 500kg (5,10,50,100,200kg Are Optional)
High Light:

electronic lab equipment

,

lab testing equipment

High Precision Computerized Single Column Stretch Resistance Utm Testing Machine

Product Description
It also known as a materials testing machine , is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.

Application:
Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

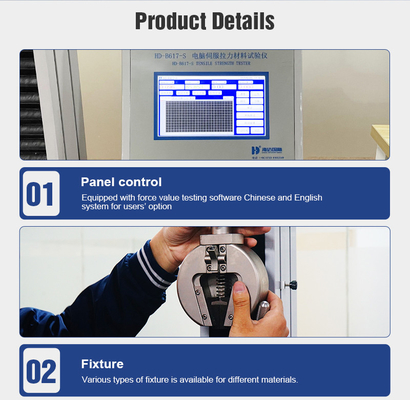

High Precision Computerized Single Column Stretch Resistance Utm Testing Machine 0


Test Standard:
The machine is calibrated as ASTM E4, ISO 75001 international standard. By adding different grips it can do the test of ISO 527, ISO 8295, ISO 37, ISO 178, ISO 6892, ASTM D412, ASTM C1161, ASTM D882, ASTM D885ASTM D918, ASTM D1876, ASTM D4632 and all the force and extension JIS, DIN, BSEN testing standards.




Standard Feature

ItemDescription
Frame capacity500kg
Load cell brand

Germany brand load cell for high accuracy
500kg (5,10,50,100,200kg are optional)

Load accuracy0.5% F.S
Control systemLCD with build-in printer /PC with windows 7 system
MotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force readingkgf, Ibf, N, KN, T etc
Vertical test space1400mm including fixture
Test Speed0.1~500mm/min (adjustable)
SoftwareTM 2101
Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strain
Data displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat




Options
1. Special versions can be supplied with wider throats and extended straining frames to suit special purposes
2. In addition to standard fixtures, special grips and fixtures can be made for custom applications.

Features
1. For use with your own laptop
2. Fully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.
3. Ease of testing with digital sample break detection, autoranging, auto-calibration, quick tare and auto return facilities.
4. 800% overload protection capability of load cells in tension and compression.
5. Grips and fixtures for tension, compression, flexure, shear and product testing.
6. Small footprint design, giving economy of bench and floor space.
7. High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.
8. Crosshead guidance system providing precise alignment and smooth running.
9. Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 4,000,000 steps per revolution positional control.
10. High speed data collection systems for up to 4 synchronous channels.
11. 6 I/O channels for additional devices such as extensometers, micrometers, callipers, balances etc.
12. High stiffness loading frames with solid specialised steel crossheads and rigid extruded support columns with T-slots for accessory mounting.
13. Overload, overtravel and impact protection.



Product Image

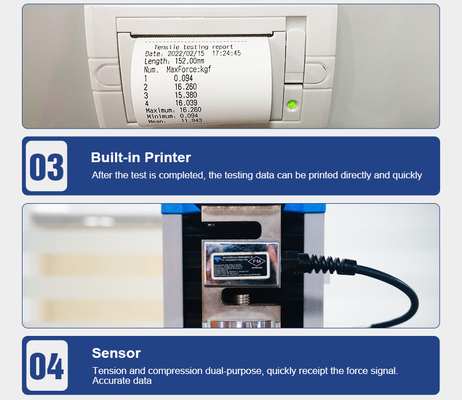

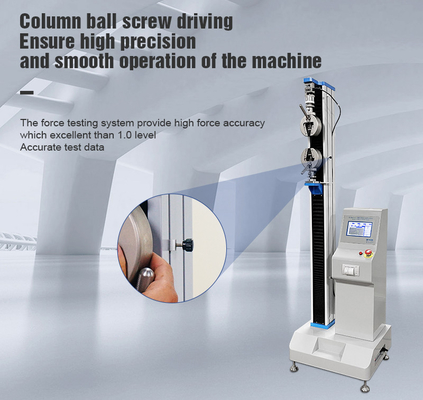

High Precision Computerized Single Column Stretch Resistance Utm Testing Machine 1

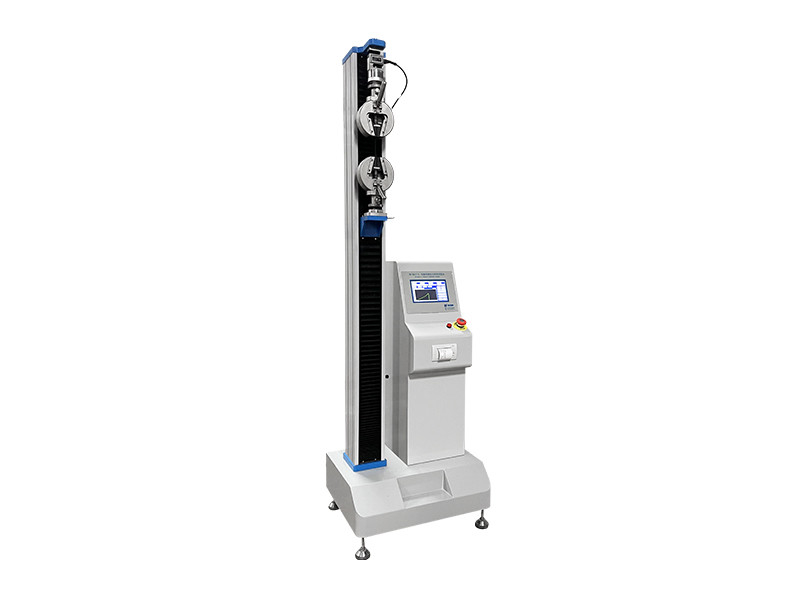

High Precision Computerized Single Column Stretch Resistance Utm Testing Machine 2
