Product Details:
|
| Product Name: | Anti-yellowing Test Chamber | Control Mode: | Automatic Calculation Controller |
|---|---|---|---|
| Temperature Range: | Ambient Temperature~200℃ | Temperature Display Accuracy: | 0.1℃ |
| Time Memory: | 0-999 Hours, Power Failure Memory Type, With Buzzer | UV Light Source: | 300W UV Lamp |
| High Light: | ozone test chamber,xenon test chamber |
||

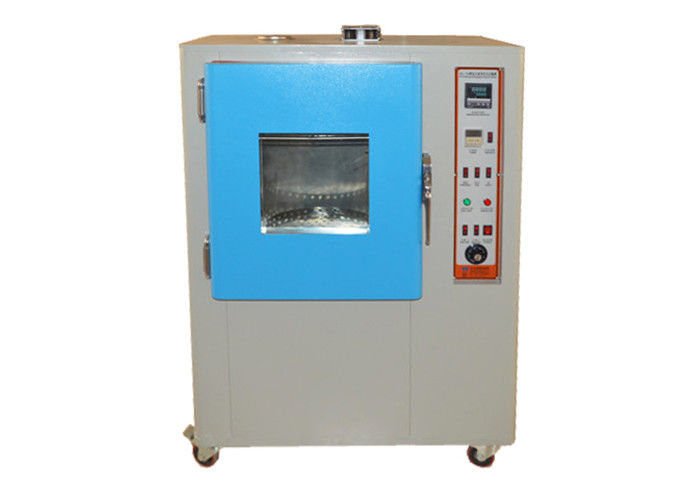

Accelerated Anti-yellowing Aging Test Chamber with Auto Controller
HD-E704 Anti-yellowing Aging Test Chamber.pdf
Product Description:
Anti-yellowing Aging Testing Chamber is made in accordance with ASTM D1148,it can provide the simulative heat of the sun and ultraviolet radiation environment of space.It is used for observing the anti-yellowing degree of the sample after a period of time effected by the ultraviolet ray and the temperature. Grey stain can be used for reference standard, to judge it’s yellowing degree.Products will change their color when radiated by the sun or influenced by the environment of the container.
Standard Features
| Item | Specification |
| Internal chamber size(W*D*H) | 50*50*60cm |
| External chamber size(W*D*H) | 114*74*130cm |
| Temperature Range | Ambient Temperature~200℃ |
| Control Mode | Automatic Calculation Controller |
| Temperature display accuracy | 0.1℃ |
| Control accuracy | ±3℃ |
| Distribution accuracy | ±1℃ (ambient ~ 100℃) |
| Time memory | 0-999 hours, Power Failure Memory Type, with Buzzer |
| Sample holder rotation speed | Diameter 45cm, 10±2 roll/min |
| UV light source | 300W UV lamp |
| Standard Accessories | Sample shelf x 2pcs |
| Heating method | Hot air circulation |
| Security devices | Over-temperature power-off indicator light; Safety overload switch ammeter |
| Chamber material | Internal: Stainless Steel SUS304; External: Steel plate with baking varnish |
| Accessory | 1 x English operation manual, 1 x Operation video CD |
Applications
The machine can do two tests: anti-yellowing and aging.
1.Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50’C for 9 hours, in theory as exposed to atmosphere for 6 months.
2.Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.
