Product Details:
|
| Use: | Xenon Accelerated Weathering Tester | Humiture Range: | 30-98%RH |
|---|---|---|---|
| Rainfall Cycle: | 1-240min | Certificate: | ISO9001: 2008 |
| Studio Size: | 95Dx95Wx90Hcm | Box Material: | Stainless Steel SUS304# |
| Insulation Materials: | Superfine Glass Fabric | Use Environment: | 5°C~+30°C, ≤85%R.H |
| High Light: | ozone test chamber,xenon test chamber |
||

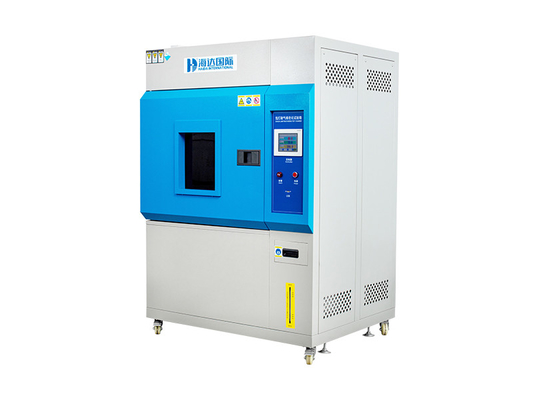

Xenon Test Chamber Accelerated Aging Chamber Environmental Test Equipment
Product Description:
Xenon Lamp Aging Chamber is to test the product undergoneillumination/rain/condensation/temperature/humidity/wind and any other climatic changes.This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials.
Xenon Lamp Aging Chamber can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Features:
Box shape using CNC machining and elegant, imported high grade stainless steel cabinet liner (SUS304) mirror panel, box outside the gallbladder with A3 steel spray
Equipment is divided into the main part, heating, humidification, cooling dehumidification section , display control section, air conditioning parts, part of security measures and other accessories section;
Temperature and humidity control devices with high precision the number of total imports of integrated micro computer controller;
Accuracy: 0.1 (display range); Resolution: ± 0.1 ; temperature sensor: PT100 platinum resistance temperature body;
Control: heat balance humidity thermostat method;
Temperature and humidity control with P. I. D + S. SR system coordination control with the channel;
It has automatic calculation of the function, temperature and humidity conditions can be amended immediately so that more precise control of temperature and humidity stable.
Refrigerator with the French original, Tecumseh closed compressor.
Principle and Function:
1. UV ultraviolet aging test machine using fluorescent UV lamp as the light source, by simulating natural sunlight's ultraviolet radiation and condensation, the material accelerated weathering test, in order to obtain material weathering results.
2. UV resistant climate chamber can simulate natural climate ultraviolet rays, rain, high temperature, high humidity, condensation, darkness and other environmental conditions, by reproducing these conditions, combined into a loop, and it automatically performs complete cycle number of times, this is the UV aging chamber works
Structural Characteristics:
A variety of alternative filtration system.
Water spray function.
Relative humidity control.
Chamber air temperature control system.
Irregularly shaped sample holder.
Cheap xenon arc lamps.
Xenon lamp aging test instrument easy to install and easy to use and basically no routine maintenance.
Xenon arc lamp life depends on the level of irradiance used, general lamp life of 1600 hours. Lamp replacement convenient, long-lasting xenon lamp aging tester filter to maintain the required spectrum to provide protection.
Specifications:
| Model | HD-711L Xenon Lamp Aging Chamber |
| Inner Box Size (D×W×H) | 950×950×900mm |
| Outside Dimension (D×W×H) | 1300×1500×1900mm |
| Humiture Range | (RT+10)~70°C; 30~98%RH |
| Humiture uniformity | ± 2°C; ± 3%RH |
| Rainfall time | 1~9999min, adjustable |
| Rainfall cycle | 1~240min, interval is adjustable |
| Xenon lamp light | xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200 |
| Heating/humidifying power | 2.0KW/2.0KW |
| Sample spinning machine speed | 1~5r/ min (adjustable) |
| Sample and xenon lamp distance | 300~375mm |
| Box material | Stainless Steel SUS304# |
| Insulation materials | Superfine heat insulation cotton |
| Insulation body | Superfine glass fabric |
| Circulation system | Single cycle, centrifugal fan |
| Control system | Germany KLOCKNER-MOELLER progammable controler |
| Gas processing | dischager for fector and harmful gas |
| Power | AC380V, three phase five wire, 10KW |
| Use environment | 5°C~+30°C, ≤85%R.H |
| Standard features | 1. Filtering screen viewing window; 2.Moistureproof lamp |
| Security Protection | Security device for circuit break, |
| high pressure of the compressure, high temperature alarm |
Pictures:
