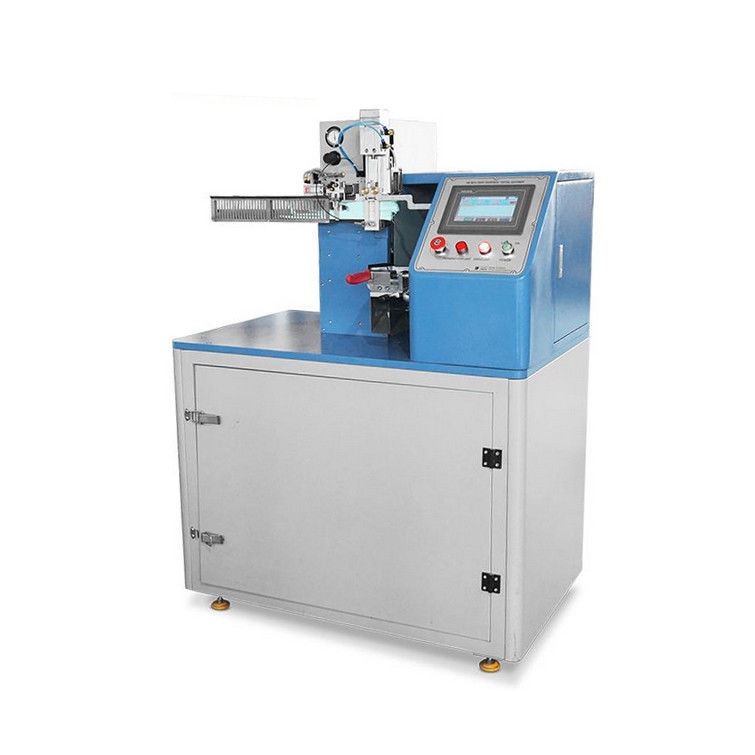

Large Image :  EN Furniture Testing Machine , Digital Display Cutlery Cutting Performance Testing Equipment

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: EN
Model Number: HD-M013
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

EN Furniture Testing Machine , Digital Display Cutlery Cutting Performance Testing Equipment

Description
Test Stroke: 20~66mm Clamp Strength: 130 + 2.5N
High Light:

universal testing machines

,

universal material tester

Digital Display Cutlery Cutting Performance Testing Equipment

1.Description
The blade is mounted in a position with the edge vertical and a pack of specially developed synthetic paper (Not included) is lowered on to it. The clamping fixture with the blade move back and forth the blade cuts into the paper, the depth of the cut being the measurement of sharpness.

2.Design Standard
ISO 8442-1

3.Main thchnical paraments

cutting stroke 40 mm plus the width of 10mm test medium.
speed 50 mm per second.(adjustable)
control method PLC control
load weight applied to the blade 50N, which is composed of sliders, fixtures, paper CARDS and weights and all other related accessories.
clamp strength 130 + 2.5N
stack height of strip no more than 50mm
the cutting position of the blade starts from the edge of the paper clip 3mm + / -0.2mm
weekly test of "A" blade 60
weekly test of "B" blade 200


4.More Details
EN Furniture Testing Machine , Digital Display Cutlery Cutting Performance Testing Equipment 0
