Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE、ISO
Model Number: 5079-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

Maximize Your Packaging Efficiency with Professional Paper Packaging Testing Instruments

Description
Function: Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument Name: Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display: LCD,Digital Display Units Switch: Kgf,N.( Optional),Lbf
Testing Speed: 10 ~ 200 Mm/min Dimension: 360*264*400mm,70 *34 * 60 Cm,85*65*80cm
Measuring Range: 250-5600 Kpa,10 ~ 1000mN Display Mode: LCD Display,digital Mode
Design Criteria: ISO 2248,ASTM-D2210,TAPPI T403,GB/T4857-92,JIS Z0202-87
Highlight:

professional paper packaging tester

,

packaging efficiency testing instruments

,

paper packaging durability tester

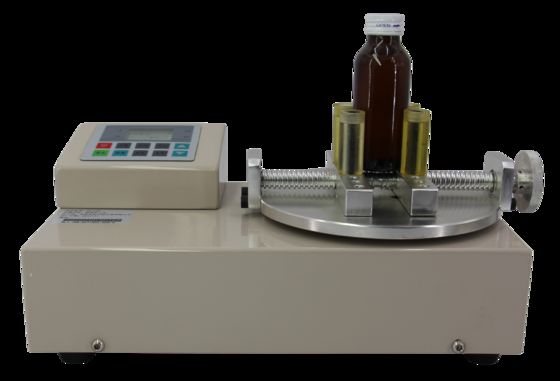

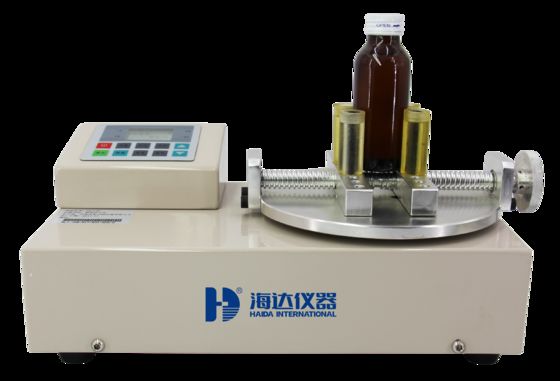

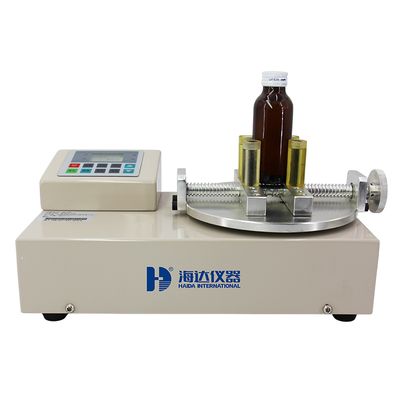

EQUIPMENT DETAILS OF 5079-HD BOTTLE CAPPING TORQUE TESTER

 Maximize Your Packaging Efficiency with Professional Paper Packaging Testing Instruments 0
***Picture for reference
PRODUCT DESCRIPTION

Bottle Capping Torque Tester is suitable for the pharmaceutical, food and beverage, filling industry, etc., such as bottle packaging products, hose packaging products, cap closure of the nozzle packaging products, accurate torque testing of opening.

MAIN FEATURE

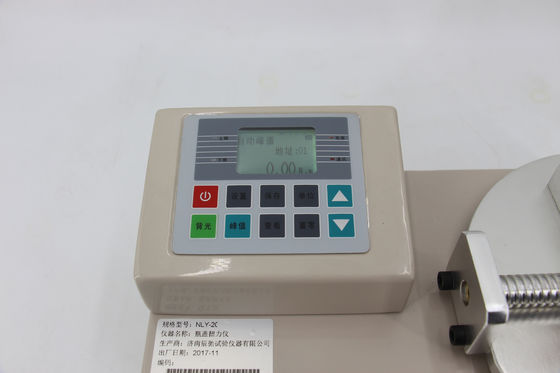

  1. Microcomputer control, LCD liquid crystal display;
  2. The test data is continuously collected, and the peak value is automatically maintained;
  3. Dual mode design of locking force and opening force;
  4. The standard unit of test results does not require manual conversion;
  5. Test times can be set, data deletion, statistics function;
  6. Power-down memory of test parameters;
  7. Automatic reset, intelligent fault prompt, overload protection;
  8. Small size, convenient operation, reliable performance, fast test;
  9. N.m, kg.cm, lb.in are converted mutually;
TECHNICAL PARAMETERS
Item Description
Measuring range 0~99ib.in
Resolution 0.001 Nm
Accuracy ±0.5%
Display mode Touch screen ; LCD display
Unit N.m; kg.cm; ib.in; N.cm

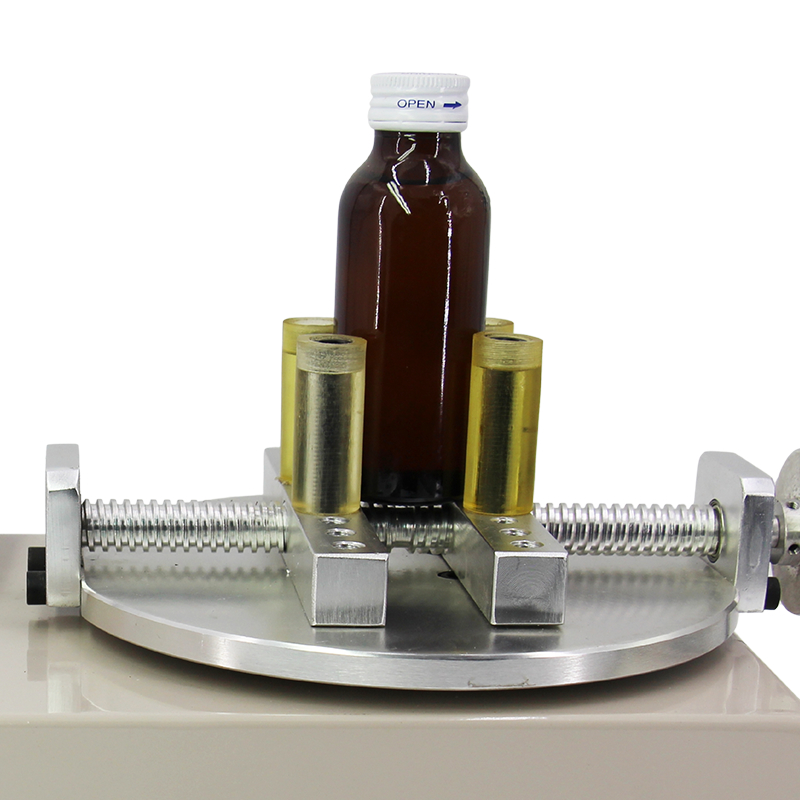

Clamping range Ф25mm~Ф170mm(Diameter)
Power supply 5V rechargeable battery
AC220V 50HZ power adapter
Data output method Micro printer, optional PC output
Save quantity 1~99
Machine size 330*200*200mm
Weight 15 KG
Design standard GB/T 17876,ASTM D 2063, ASTM D 3198, ASTM D 3474
The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
