Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis

Large Image : Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	922-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Versatile Charge / Discharge Battery Testing System for Comprehensive Battery Performance Analysis

Description

Application:	Battery Testing	Wiring Method:	AC Three-phase Four-wire
Display:	LCD	Current Range:	0-10A
Resolution:	0.001V/0.001A	Wiring Method:	AC 220V
Accuracy:	±0.1%	Power Supply:	AC
Highlight:	versatile battery testing system , charge discharge battery analyzer , battery performance testing system

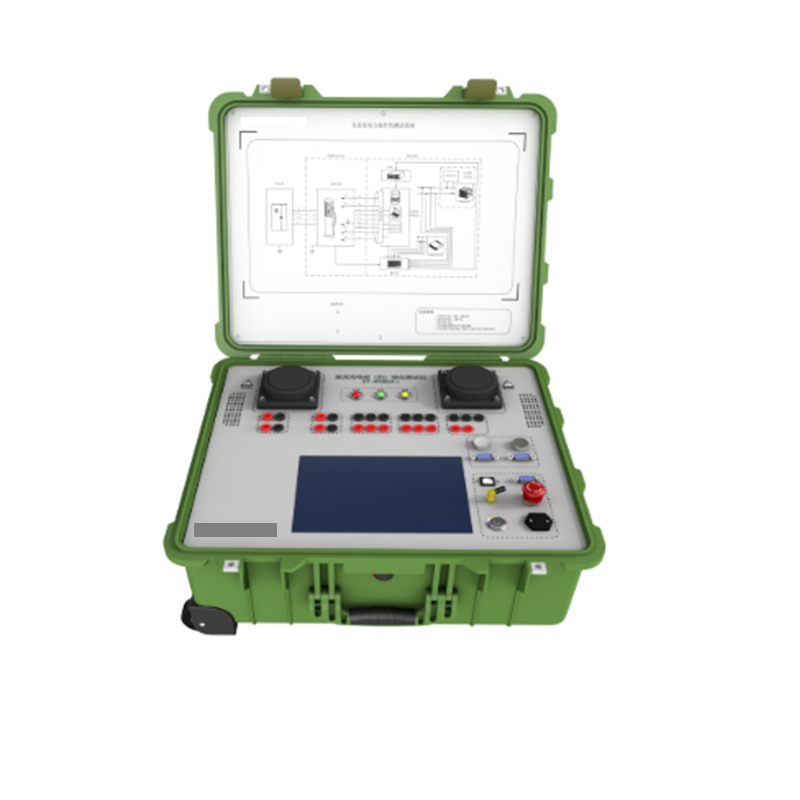

ST-9980A DC Charging Pile Comprehensive Tester, developed by Saiter, is a professional instrument designed to perform interoperability testing and communication protocol conformance verification in accordance with Chinese national standards. It is specifically used for third-party on-site testing and product acceptance inspection of off-board conductive chargers for electric vehicles. The tester is suitable for R&D activities by charger manufacturers and acceptance checks by third-party testing organizations. It is also widely used by charging facility producers for preliminary development, debugging, factory testing, and on-site acceptance of off-board conductive chargers.

Key Features

Supports interoperability testing, communication protocol conformance validation, BMS simulation, and optional metrological verification.
Offers multiple communication interfaces including LAN, RS232, and WIFI. Equipped with a built-in WIFI hotspot for remote wireless operation, facilitating convenient on-site usage.
Integrates a high-precision Hall sensor (standard accuracy of 0.1%; optional 0.05%) with a current range of 10–300A. Supports multiple verification methods through voltage/current test interfaces. Features a high-power output load gun holder for quick and efficient connection to external load equipment.
Accurately simulates the charging process and various fault conditions. Includes an auxiliary power supply system to ensure comprehensive testing, eliminating issues such as incomplete test coverage, operational inconvenience, time-consuming battery charging-discharging cycles, and reduced battery lifespan.

Specifications

Item	Description
Product Name	DC Charging Pile Comprehensive Tester
Model	ST-9980A
Gun Holder Quantity	2 (DC 1000V/250A)
Test Target	DC Charging Pile
R4 Equivalent Resistance	200–11000Ω (1Ω step)
Voltage/Current Sampling Accuracy	±0.5% RD (200V–1000V) / ±0.5% RD (10A–300A)
Auxiliary Power Voltage/Current Accuracy	±0.5% RD (30V) / ±1% RD (20A)
Operating Power Supply	100–240V AC, 50Hz; 35W
Communication Interfaces	LAN, RS232, WIFI
Load Capacity	No built-in load (external load device ≤250A)
Product Dimensions	561 * 455 * 265 mm (L * W * H)
Display	10.1-inch touch screen
PC Software Support	Yes
Operating Environment	Temperature: -20°C to 50°C; Storage: -30°C to 70°C; Humidity: ≤90% RH (10–30°C), ≤75% RH (30–40°C), ≤45% RH (40–50°C)
Compliant Standards	GB/T 18487.1-2015, GB/T 20234.1-2015, GB/T 20234.3-2015, GB/T 27930-2015, GB/T 34658-2017, GB/T 34657.1-2017

Technical Specifications

Interface	Parameter	Range	Tolerance
CVBS	Brightness level	0–700 mV	±(2%X + 6 mV)
	Chromaticity level	0–885.1 mV	±3%
	Chroma phase	0–360°	±1°
YPbPr	Luminance (Y)	0–700 mV	±(2%X + 6 mV)
	Color difference (Pb/Pr)	-350–350 mV	±(2%X + 6 mV)
RF-ATV	Level	70–120 dBμV	±3 dB
	Frequency	47–862 MHz	0.001%
RF-DTV	Level	-60–0 dBm	±2 dB
	Frequency	32–2196 MHz	0.0001%
	Modulation error ratio	—	>36 dB

Testing Applications

TV energy efficiency testing
Set-top box testing
Monitor testing

Included Accessories

BNC cables, adapters, DP-HDMI converters

Product Tags

TV test equipment, AV test equipment, TV signal tester
