Battery Capacity Voltage Discharge Resistant Tester Energy Efficiency

Battery Capacity Voltage Discharge Resistant Tester Energy Efficiency
Battery Capacity Voltage Discharge Resistant Tester Energy Efficiency

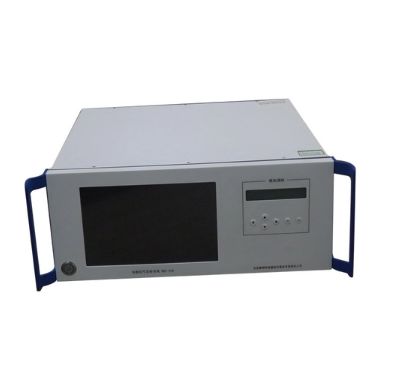

Large Image :  Battery Capacity Voltage Discharge Resistant Tester Energy Efficiency

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: 9006-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 300 Sets per Month
Contact Now

Battery Capacity Voltage Discharge Resistant Tester Energy Efficiency

Description
Application: Battery Testing Wiring Method: AC Three-phase Four-wire
Display: LCD Current Range: 0-10A
Resolution: 0.001V/0.001A Wiring Method: AC 220V
Accuracy: ±0.1% Power Supply: AC
Highlight:

Battery Capacity Voltage Discharge Resistant Tester

,

Voltage Discharge Resistant Tester Energy Efficiency

 Signal Tester
Transmission System for Energy Efficiency and Display Performance Testing
Product Overview

Designed for digital TV testing, this product generates test signals for CVBS, YPbPr, SDI, HDMI, and RF antenna interfaces to meet the testing requirements of major TV interfaces.

Applications

  • TV energy efficiency testing

  • TV display performance testing

  • Other TV-related testing items

Key Features
  1. Video Baseband Signal

    • Supports four interface types: CVBS, YPbPr, SDI, and HDMI

    • Compatible with PAL and NTSC standard-definition video formats

    • Supports HD formats: 1920×1080 50i/50p/60i/60p

    • Supports 4K UHD formats: 3840×2160 25p/30p/50p/60p

  2. Analog TV Modulation Signal

    • TV standard: PAL-DK

    • Output impedance: 75 ohms

    • Frequency range: 47–862 MHz

    • Level range: Main output: 100–120 dBμV; Sub output: 70–90 dBμV

  3. Digital TV Modulation Signal

    • TV standards: DTMB, DVB-C, DVB-T, etc.

    • Output impedance: 50 ohms

    • Frequency range: 32–2196 MHz

    • Level range: -60–0 dBm

    • Modulation error ratio: >36 dB

Front Panel

  1. Analog TV modulation module display

  2. Control buttons (up/down/left/right/ENTER/EXIT)

  3. Touchscreen system display

  4. Thin-film keypad

  5. Brand logo

  6. USB interface

  7. Power key

Rear Panel Interfaces

  1. Video in and Audio in

  2. RF-ATV output (with 30 dB attenuation)

  3. Y/CVBS, Pb, Pr outputs

  4. L/R analog audio and AES/EBU digital audio outputs

  5. SDI and HDMI digital video outputs

  6. RF-DTV digital RF output

  7. System peripheral interface

  8. Power interface and switch

Battery Capacity Voltage Discharge Resistant Tester Energy Efficiency 0
Technical Specifications
Interface Parameter Range Tolerance
CVBS Brightness level 0–700 mV ±(2%X + 6 mV)
  Chromaticity level 0–885.1 mV ±3%
  Chroma phase 0–360° ±1°
YPbPr Luminance (Y) 0–700 mV ±(2%X + 6 mV)
  Color difference (Pb/Pr) -350–350 mV ±(2%X + 6 mV)
RF-ATV Level 70–120 dBμV ±3 dB
  Frequency 47–862 MHz 0.001%
RF-DTV Level -60–0 dBm ±2 dB
  Frequency 32–2196 MHz 0.0001%
  Modulation error ratio — >36 dB
Testing Applications

  • TV energy efficiency testing

  • Set-top box testing

  • Monitor testing

Included Accessories

BNC cables, adapters, DP-HDMI converters

Product Tags

TV test equipment, AV test equipment, TV signal tester

Tag:

battery testing machine,

battery tester,

ev battery testing equipment
