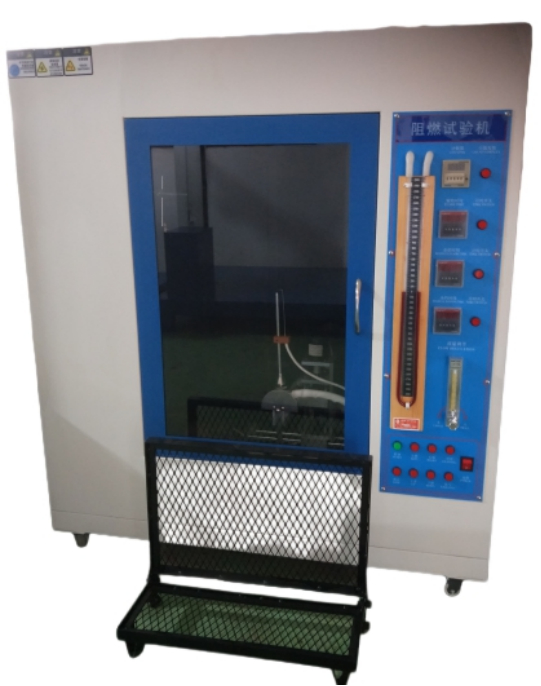

5125-HD Burning Test Machine with Adjustable Armrests

Large Image : 5125-HD Burning Test Machine with Adjustable Armrests

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5125-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5125-HD Burning Test Machine with Adjustable Armrests

Description

Material:	Steel	Optional Features:	Customizable Load Capacity And Dimensions
Keyword:	Furniture Testing Machine	Power:	Electronic
Testing Method:	Dynamic And Static Load Testing	Power Supply:	AC/DC
Use:	Chair	Type:	Test Equipment
Unit Switch:	Gf，kgf, N, LBf, W, KN, T	Driving Mode:	Variable Frequency Motor And Timing Belt
Power Source:	Electricity	Lcd Display:	Yes
Adjustable Armrests:	Yes
Highlight:	5125-HD Burning Test Machine , Burning Test Machine with Adjustable Armrests

5125-HD Burning Test Machine

EQUIPMENT DETAILS

APPLICATIONS & TEST PURPOSE:

This device is suitable for determining the non-flammability performance of samples under direct burning by specified fire sources.

The device consists of a control panel, air box, combustion nozzle, solenoid valve, high-voltage igniter, sample holder, gas pipe, gas source, flow meter, U-shaped manometer, and signal control lines (as shown in Figure 1). The entire combustion test process of this machine is fully automated, such as electronic ignition, flameout time, combustion time, and number of combustions can all be automatically completed.

STANDARD: ISO 7176-10.8;GB/T 18029.10-2009

STANDARD FEATURES

Item	Specification
Nozzle inner diameter	6.5mm
Length	200+10mm
Test inclination angle	20,45,90 degrees with manual switching
Flame height	adjustable from 20mm to 175mm
Flame application time	adjustable from 0-999.9s+0.1s
Afterflame time	0-999.9s+0.1s,automatically recorded, manually paused
Afterbum time	0-999.9s+0.1s,automatically recorded, manually paused
Combustion gas	98% methane gas or 989 propane gas (usually liquefied petroleum gas can be used as a substitute)
Flow and pressure	flow meter and U-shaped pressure gauge
Test background	black background
Test process	manual control of the test program, independent ventilation Chamber volume: 0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)
Chamber volume	0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)
Cabinet material	mirror stainless steel
Equipment dimensions	1000mm x 650mm x 1300mm(LWH)

5125-HD Burning Test Machine with Adjustable Armrests 1
