5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment

Large Image : 5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5123-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment

Description

Material:	Steel	Optional Features:	Customizable Load Capacity And Dimensions
Keyword:	Furniture Testing Machine	Power:	Electronic
Testing Method:	Dynamic And Static Load Testing	Power Supply:	AC/DC
Use:	Chair	Type:	Test Equipment
Unit Switch:	Gf，kgf, N, LBf, W, KN, T	Driving Mode:	Variable Frequency Motor And Timing Belt
Power Source:	Electricity	Lcd Display:	Yes
Adjustable Armrests:	Yes
Highlight:	5123-HD Wheelchair Rain Test Machine , Steel Wheelchair Rain Test Machine

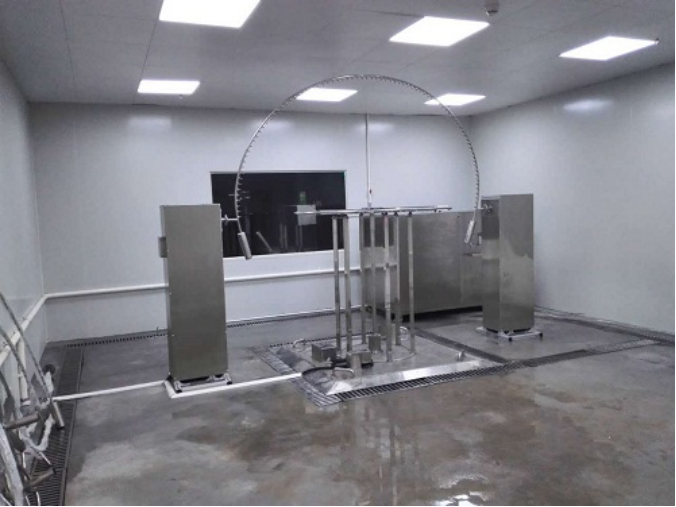

5123-HD Wheelchair Rain Test Machine

EQUIPMENT DETAILS

Image For Reference Only

5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment 0

GENERL SPECIFICATIONS

Power supply source: Three-phase,380V±10%,50/60Hz (canbeappointed)

HS Code: 8424899909

STANDARD FEATURES

Item	Specification
Dimension of waterproof test room (WDH)	550045004500mm (Waterproof test room provided by buyer)
Spray system	Consists of pumps, hydraulic pressure gauge, stationary nozzle stents
Oscillating tube	Radius 800mm
Oscillating angle	IPX3: spray ±60° from vertical line to each side, total 120° IPX4: spray ±180° from vertical line to each side, total 360°
Oscillating speed	IPX3: 2120° for 4s IPX4: 2360° for 12s
Spray nozzle	Diameter: 0.4mm, removable Ensure the water sprays in a line and without tolerance
Distance between two nozzles	50mm
Turntable diameter	1100mm
Turntable rotation speed	1-3 cycles/min
Water flow of each nozzle	0.07 L/min +5%
Test duration	1~999h999min, adjustable
Pressure gauge	80-150Kpa
Distance from nozzle to specimen surface	200mm
Material	Oscillating tube / spray nozzle / sample turntable - Stainless steel
Chamber material	Stainless steel, with observation window
Safety protection device	Short circuit protection, grounding protection, water shortage protection, audible and visual alarm
