5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply

Large Image : 5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5121-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply

Description

Material:	Steel	Optional Features:	Customizable Load Capacity And Dimensions
Keyword:	Furniture Testing Machine	Power:	Electronic
Testing Method:	Dynamic And Static Load Testing	Power Supply:	AC/DC
Use:	Chair	Type:	Test Equipment
Unit Switch:	Gf，kgf, N, LBf, W, KN, T	Max Load Capacity:	500 Lbs
Driving Mode:	Variable Frequency Motor And Timing Belt	Power Source:	Electricity
Stroke:	762mm (+ 50mm)	Test Speed:	0～30 Times/min
Tester Weight:	240KG	Lcd Display:	Yes
Dimension:	Wdh (188103230cm)	Compressed Air Supply:	6 Bar
Dimensions:	50 X 30 X 40 Inches	Adjustable Armrests:	Yes
Impact Sandbags Diameter:	16 Inch 125 Pounds Standard Sandbags	Tester Stand:	1800x1000mm
Highlight:	5121-HD Stability Test Platform , Weelchair Dynamic Stability Test Platform

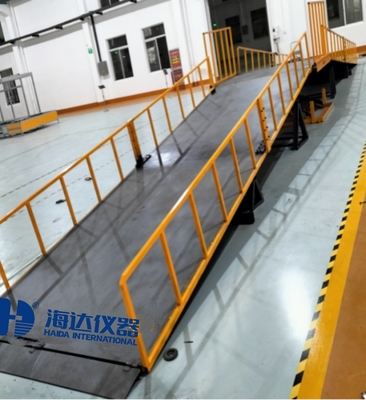

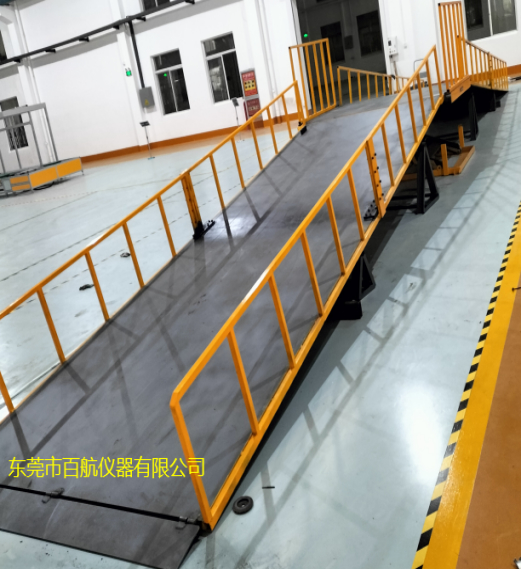

5121-HD Weelchair Dynamic Stability Test Platform

EQUIPMENT DETAILS

5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply 0

APPLICATIONS & TEST PURPOSE:

The test dummy is used for dynamic stability testing and climbing performance of wheelchairs. The entire machine is made of rigid materials welded and processed to ensure the strength and stability of the machine. The platform uses electric hydraulic lifting.

TEST STANDARD:

ISO 7176-2

STANDARD FEATURES:

Dynamic testing requires the wheelchair to run on the platform, with the adjustable tilt table at 3-6-9-10 degrees;
Ramp dimensions: width x length 2.5m x 10m, platform 2 meters. Customizable (if both sides of the ramp are required, please specify as the price will differ)
Made of rigid materials welded together; ensuring the strength and stability of the machine.
Secured with screws for easy adjustment of angles.
Angle measuring device: used to measure the angle between the test platform and the horizontal plane, with a digital display showing the angle, measurement accuracy ±0.2.
Platform uses electric hydraulic platform lifting.
There is a movable support under the ramp for safety and stability assurance.
Surface friction coefficient 0.7-1. Anti-slip treatment applied.
