5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine

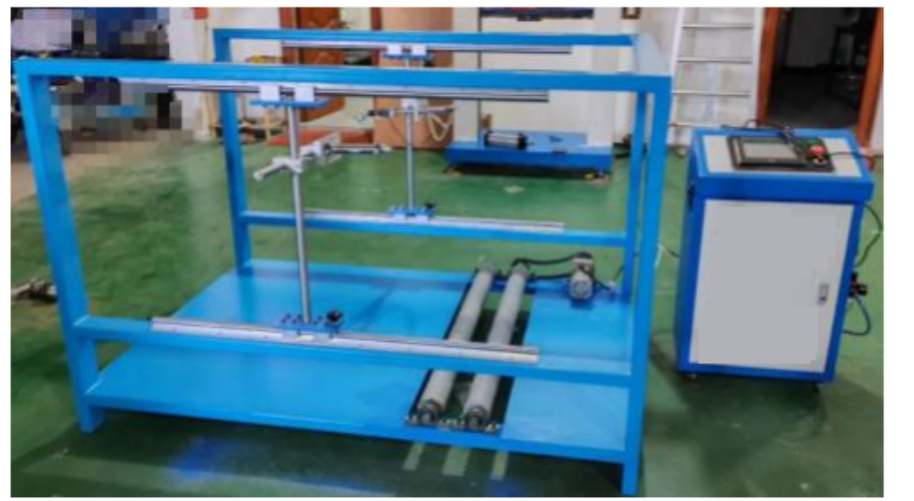

Large Image : 5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5119-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine

Description

Material:	Steel	Maximum Load Capacity:	500kg
Driving Mode:	Variable Frequency Motor And Timing Belt	Rate:	8 ~ 12 Times / Min
Capacity:	2000kg (Transcell Senor )	Dimensions:	120cm X 80cm X 150cm
Certifications:	CE, ISO	Optional Features:	Customizable Load Capacity And Dimensions
Impact Speed:	10-30 Times/minute Or Specified	Keyword:	Furniture Testing Machine
Power:	Electronic	Testing Method:	Dynamic And Static Load Testing
Maximum Capacity:	150KG	Adjustable Drop Height:	10mm To 180mm
Counter:	0-999
Highlight:	5119-HD Wheelchair Brake Fatigue Tester , Brake Fatigue Tester , Durable Steel Wheelchair Brake Fatigue Tester

5119-HD Wheelchair Brake Fatigue Tester

EQUIPMENT DETAILS

APPLICATIONS & TEST PURPOSE:

The test machine is used for the fatigue strength test of electric wheelchair brakes, simulating the repeated operation of humans. It adopts a touch screen program control, which is simple to operate, and can display the number of tests, test frequency, etc. It automatically shuts down when the set number of times is reached, and can display the number of tests and the force value of the test.

STANDARD:

ISO 7176-3.8; GB/T 18029

STANDARD FEATURES:

Feature	Specification
Adjustable travel range	0-150mm
Control ways	PLC + touch screen program control
Test frequency	1-20 times per minute
Test count	0-9,999,999
Movement	Adjustable loading position for front/back and up/down movement
Force range	20KG
Force accuracy	0.5%FS
Voltage	220V, 50Hz
