5032-HD Non-Woven Air Permeability Tester for Packaging Materials

5032-HD Non-Woven Air Permeability Tester for Packaging Materials
5032-HD Non-Woven Air Permeability Tester for Packaging Materials 5032-HD Non-Woven Air Permeability Tester for Packaging Materials 5032-HD Non-Woven Air Permeability Tester for Packaging Materials

Large Image :  5032-HD Non-Woven Air Permeability Tester for Packaging Materials

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE、ISO
Model Number: 5032-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month
Contact Now

5032-HD Non-Woven Air Permeability Tester for Packaging Materials

Description
Design Standards: ASTM D646, JIS P8124, QB / T 1671 Operating Method: Microcomputer Control
Testing Standards: ISO, ASTM, TAPPI Drop Test: Corners, Edges , Faces Of Sample
Usage: Packaging Testing Plywood Size: H48in * D48in
Compressed Air: 6 Kg/cm2 Capacity: 10, 20, 50, 100, 200 Kg
Pressure Range: 600~1200kpa Function: Testing The Quality And Performance Of Paper Packaging Materials
Angle Display: LCD Digital Display Data Display: Load, Displacement, Speed
Return Speed: 30mm/min Scan Mode: Single Line
Highlight:

5032-HD Permeability Tester

,

Packaging Materials Permeability Tester

,

Non-Woven Air Permeability Tester

5032-HD Non-Woven Air Permeability Tester for Packaging Materials
Product Specifications
Attribute Value
Design Standards ASTM D646, JIS P8124, QB / T 1671
Operating Method Microcomputer Control
Testing Standards ISO, ASTM, TAPPI
Usage Packaging Testing
Plywood Size H48in * D48in
Compressed Air 6 kg/cm2
Capacity 10, 20, 50, 100, 200 kg
Pressure Range 600~1200kpa
Function Testing the quality and performance of paper packaging materials
Data Display Load, displacement, speed
Return Speed 30mm/min
Equipment Overview

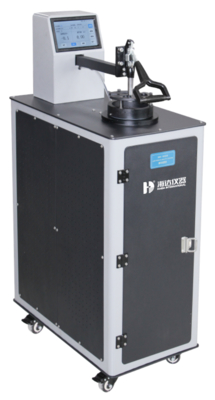

5032-HD Non-Woven Air Permeability Tester for Packaging Materials 0

The 5032-HD Non-Woven Air Permeability Tester directly measures air permeability (the speed of air flow passing vertically through a sample under specific conditions) of various materials including woven and knitted fabrics, industrial textiles, non-wovens, artificial leather, felts, and paper.

Compliance Standards

GB/T5453, GB/T13764, ISO 9237, EN ISO 7231, AFNOR G07, ASTM D737, BS5636, DIN 53887, EDANA 140.1, JIS L1096, TAPPIT251

General Specifications
  • Packaging Dimensions: 1170×780×1,230mm (W×D×H)
  • Power supply: Single-phase, 220V±10%, 50/60Hz (configurable)
  • Gross Weight: 120kg
Key Features
  • High-precision micro-pressure differential sensor for accurate, repeatable measurements
  • Large color touch screen with Chinese/English interface
  • Custom-designed muffler reduces operational noise
  • Includes standard calibration orifice plate for quick calibration
  • Two test modes: Quick test (results in <30 seconds) and Stability test (for high-precision measurements)
  • Manual test orifice plate replacement with test prompts
  • Manual sample clamping device
Technical Specifications
Technical Index 5032-HD
Air permeability measuring range 0.5~14000mm/s(20cm2),0.1mm/s
Units mm/s, cm3/cm2/s, L/dm2/min, m3/m2/min, m3/m2/h, d m3/s, cfm
Sample pressure range 0~2,400 Pa
Accuracy ≤±1%
Test areas 20 cm²
Sample thickness ≤10mm
Accessories Test Heads: 01 Nos. 20cm²; Calibration Check Plate: 01 Nos. ΦO=7.8
Dimensions 360×620×1070mm (L×W×H)
Power supply AC220V,50Hz, 1500W
Weight 65kg

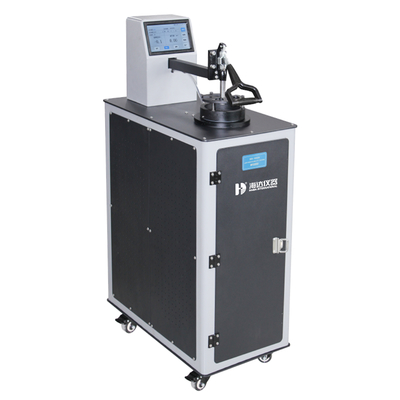

5032-HD Non-Woven Air Permeability Tester for Packaging Materials 1
Haida Bottle Compression Test Machine

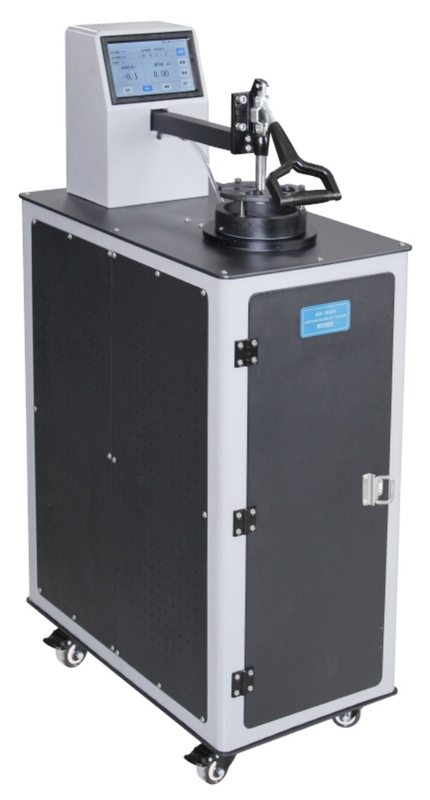

5032-HD Non-Woven Air Permeability Tester for Packaging Materials 2
Haida Testing Equipment
5032-HD Non-Woven Air Permeability Tester for Packaging Materials 3
Haida Laboratory Testing Machine
