5031-HD Nonwoven Hydrostatic Head Tester for Packaging Testing

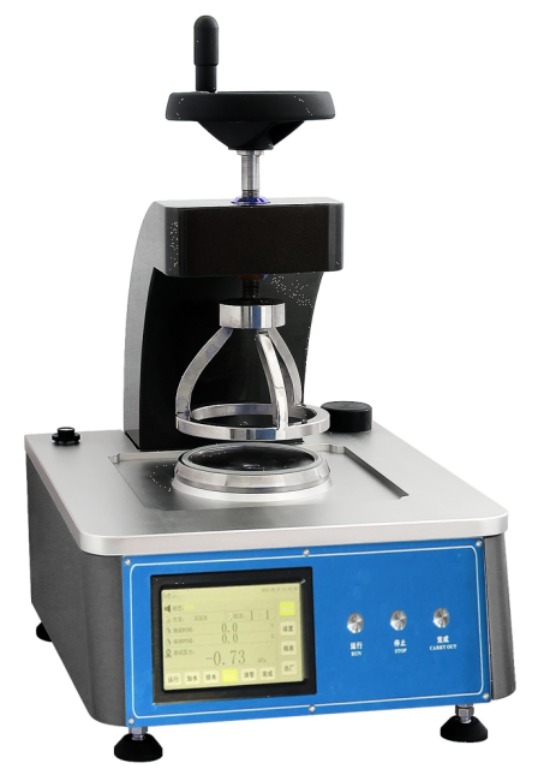

Large Image : 5031-HD Nonwoven Hydrostatic Head Tester for Packaging Testing

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5031-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5031-HD Nonwoven Hydrostatic Head Tester for Packaging Testing

Description

Design Standards:	ASTM D646, JIS P8124, QB / T 1671	Operating Method:	Microcomputer Control
Testing Standards:	ISO, ASTM, TAPPI	Drop Test:	Corners, Edges , Faces Of Sample
Usage:	Packaging Testing	Plywood Size:	H48in * D48in
Compressed Air:	6 Kg/cm2	Capacity:	10, 20, 50, 100, 200 Kg
Pressure Range:	600~1200kpa	Packaging Dimensions:	(W X D X H) 680500680mm
Guarantee:	1 Year	Burette Volume:	50 Ml
Function:	Testing The Quality And Performance Of Paper Packaging Materials	Angle Display:	LCD Digital Display
Data Display:	Load, Displacement, Speed	Specimen Size:	Minimum Size: 230×50 Mm
Return Speed:	30mm/min	Scan Mode:	Single Line
Load Precision:	Within ±0.25%	Accuracy:	±1%
Voltage:	110/220V AC, 250W
Highlight:	Nonwoven Hydrostatic Head Tester , Packaging Hydrostatic Head Tester , 5031-HD Nonwoven Tester

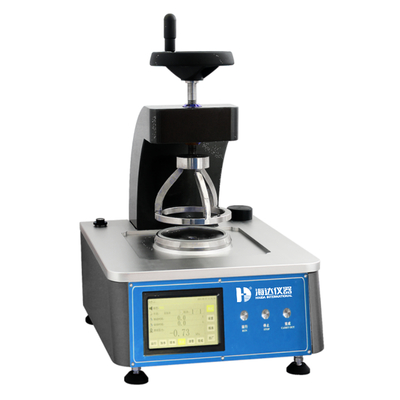

5031-HD Nonwoven Hydrostatic Head Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Testing Standards	ISO, ASTM, TAPPI
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm2
Capacity	10, 20, 50, 100, 200 kg
Pressure Range	600~1200kpa
Packaging Dimensions	(W x D x H) 680500680mm
Guarantee	1 Year
Burette Volume	50 ml
Function	Testing the quality and performance of paper packaging materials
Data Display	Load, displacement, speed
Specimen Size	Minimum Size: 230×50 mm
Load Precision	Within ±0.25%
Accuracy	±1%
Voltage	110/220V AC, 250W

Product Overview

The 5031-HD Nonwoven Hydrostatic Head Tester is designed for testing water permeability resistance in various materials including canvas, linoleum, tenting, tarpaulin, non-woven fabrics, rain-resistant dress fabrics, and coating fabrics.

Testing Standards

NWSP 80.6, ISO 9073-16

Technical Specifications

Measuring range	0~500kPa (50mH2O)
Accuracy	≤±0.5% F•S
Unit	Pa, Kpa, mmHg, cmH2O
Water column pressure increasing rate	0.5~50kPa/min(50~5000mmH2O/min)
Sample chuck area	100cm2
Display unit	Pa
Water tank capacity	3.7Ld
Dimensions & Weight	380 x 480 x 460 mm (L x W x H)/ 30kg
Power source	AC220V, 50Hz, 250W
