5030-HD Martindale Abrasion Tester for Packaging Testing

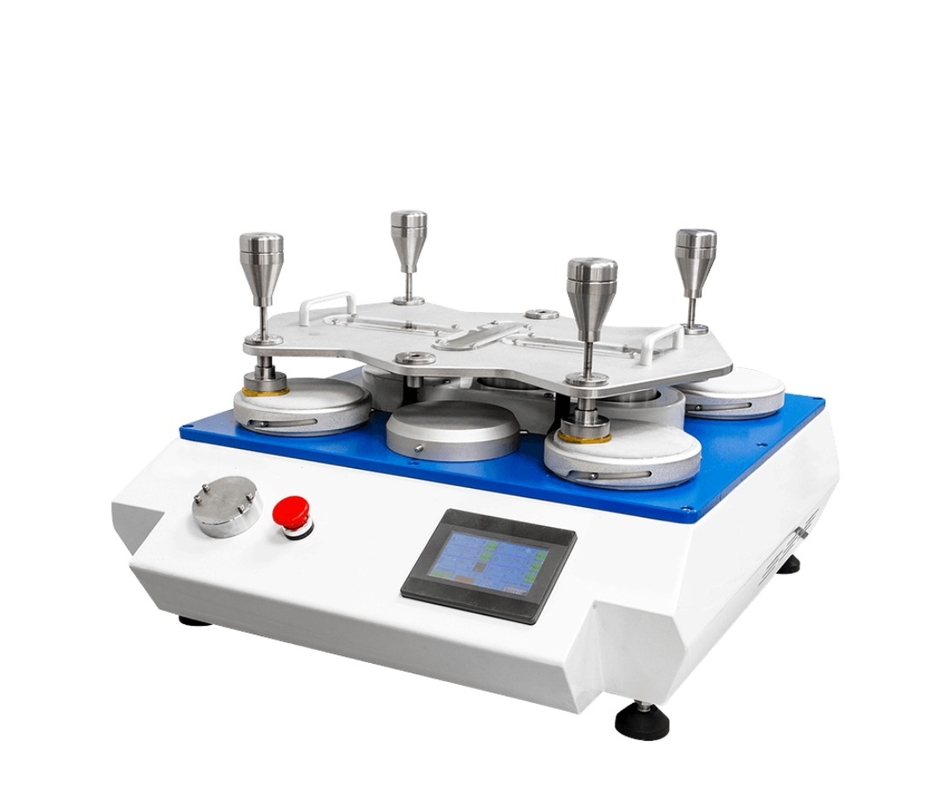

Large Image : 5030-HD Martindale Abrasion Tester for Packaging Testing

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5030-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5030-HD Martindale Abrasion Tester for Packaging Testing

Description

Design Standards:	ASTM D646, JIS P8124, QB / T 1671	Operating Method:	Microcomputer Control
Testing Standards:	ISO, ASTM, TAPPI	Drop Test:	Corners, Edges , Faces Of Sample
Usage:	Packaging Testing	Plywood Size:	H48in * D48in
Compressed Air:	6 Kg/cm2	Capacity:	10, 20, 50, 100, 200 Kg
Pressure Range:	600~1200kpa	Packaging Dimensions:	(W X D X H) 680500680mm
Guarantee:	1 Year	Burette Volume:	50 Ml
Function:	Testing The Quality And Performance Of Paper Packaging Materials	Angle Display:	LCD Digital Display
Data Display:	Load, Displacement, Speed	Specimen Size:	Minimum Size: 230×50 Mm
Return Speed:	30mm/min	Scan Mode:	Single Line
Load Precision:	Within ±0.25%	Accuracy:	±1%
Voltage:	110/220V AC, 250W
Highlight:	Packaging Testing Martindale Abrasion Tester , 5030-HD Martindale Abrasion Tester

5030-HD Martindale Abrasion Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm2
Capacity	10, 20, 50, 100, 200 kg
Pressure Range	600~1200kpa
Packaging Dimensions	(W x D x H) 680500680mm
Guarantee	1 Year
Burette Volume	50 ml
Function	Testing the quality and performance of paper packaging materials
Angle Display	LCD digital display
Data Display	Load, displacement, speed
Specimen Size	Minimum Size: 230×50 mm
Return Speed	30mm/min
Scan Mode	single line
Load Precision	Within ±0.25%
Accuracy	±1%
Voltage	110/220V AC, 250W

General Specifications

Packaging Dimensions: (W x D x H)70cmx75cmx47cm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 110KG

Introduction

The 5030-HD Martindale Abrasion Tester is primarily used for resistance testing of textiles, outer layers, linings, or under layers of footwear and similar fabrics. Tests can be conducted as dry or wet tests according to standards. Samples are tested Lissajous-oriented for regulated times, after which the difference between tested and original samples is observed to determine the grade of scrubbing resistance.

Standards Compliance

ASTM D4970, ISO12945-2 and other pilling degree tests
ASTM D4966, ISO12947 and other fabric abrasion tests

Key Features

LCD touch screen interface for clear operation
Supports both pill and abrasion testing processes to meet various international standards
Reduces and increases counting testing method for simplified operation
Features imported PLC for reliable, long-term testing

Standard Features

Model: 5030-HD

Stations: 6 Stations

Interface: LCD display

Count display: Projected Count: 0 ~ 999,999 times; Cumulative count: 0 ~ 999,999 times

Maximum stroke: 24 ± 0.5mm, 60.5 ± 0.5mm

Loading:

Holder: 200±1g
Dress material counter weight: 395±2g
Furnishings/Leather material counter weight: 594±2g
Stainless steel butterfly slice: 260±1g

Abrasion chunk effective rub diameter:

A model: 200g(1.96N,9KPa), abrasion head￠28.8 -0.084mm
B model: 155g(1.52N,12KPa), abrasion head￠90 -0.10mm

Pace speed of the holder: 50-2r/min

Sample loading pressure hammer: 2385±10g

Consumables: Baize 6, Testing Cotton 6

Diameter of abrasion fabric: 140mm

Diameter of Specimen: 38mm

Power: AC 220V/50Hz

Overall dimension: 50cmx60cmx32cm(L*W*H)

Weight: 76 KG
