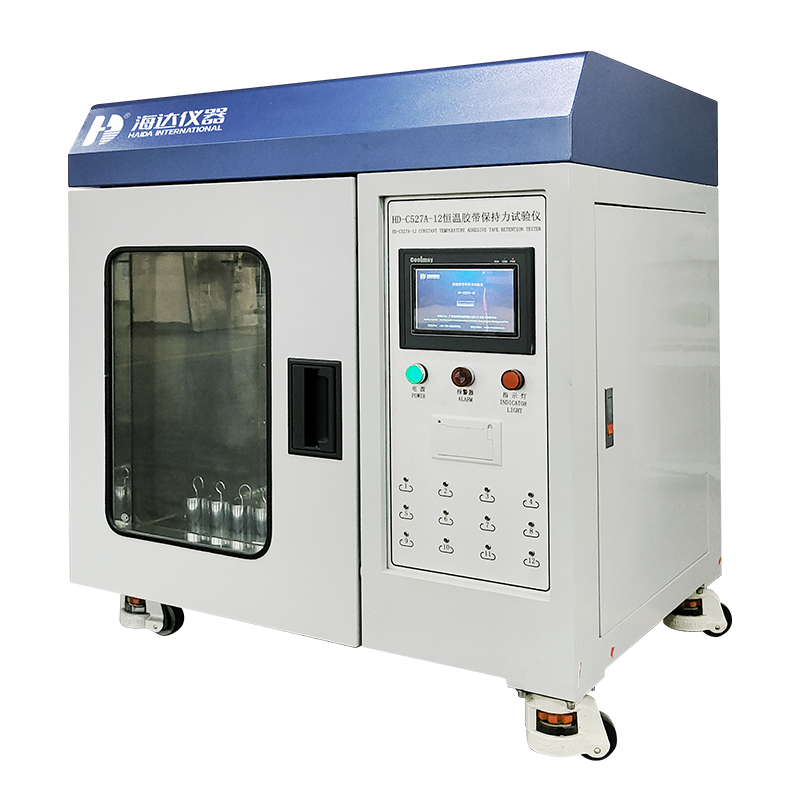

5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing

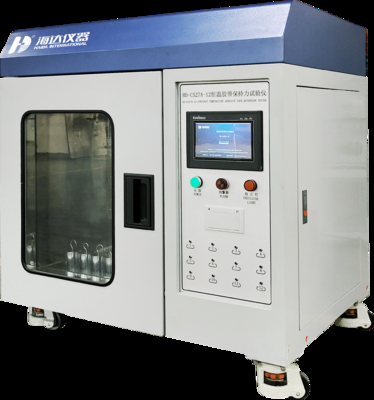

Large Image : 5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5028-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5028-HD Constant Temperature Stick Viscosity Tester for Packaging Testing

Description

Design Standards:	ASTM D646, JIS P8124, QB / T 1671	Operating Method:	Microcomputer Control
Minimum Readout:	0.1	Dropping Deviation:	±10mm
Load Resolution:	1/250,000	Testing Standards:	ISO, ASTM, TAPPI
Drop Test:	Corners, Edges , Faces Of Sample	Rated Bending Angle:	± 7.5 ° And ± 15 °
Usage:	Packaging Testing	Plywood Size:	H48in * D48in
Compressed Air:	6 Kg/cm2	Test Load Options:	55g, 175g, 275g
Drive Mode:	Power-driven	Load Cell Resolution:	1/250,000
Highlight:	Stick Viscosity Tester 5028-HD , Packaging Stick Viscosity Tester , Constant Temperature Stick Viscosity Tester

5028-HD Constant Temperature Stick Viscosity Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB/T 1671
Operating Method	Microcomputer Control
Minimum Readout	0.1
Dropping Deviation	±10mm
Load Resolution	1/250,000
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Rated Bending Angle	±7.5° and ±15°
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm²
Test Load Options	55g, 175g, 275g
Drive Mode	Power-driven

Machine Production

Designed and manufactured in accordance with GB 4851 (pressure-sensitive adhesive tape stickiness test method) and plaster adhesion test method standards. Suitable for testing pressure-sensitive adhesive tapes, self-adhesives, plaster, hot sol, and similar products.

Test Standards

GB 4851: Test Method for Holding Tack of Pressure Sensitive Adhesive Tapes
JIS Z 0237: Test methods for pressure-sensitive adhesive tapes and pressure-sensitive adhesive sheets
ASTM D 3654: Test Method for Shear Tack of Pressure Sensitive Tapes

Standard Features

Feature	Specification
Number of test groups	12 groups
Timing mode	PLC system setting program record
Test Indicator	Separate metal indicator light
Inner box lighting	24W high temperature resistant lamp (can withstand 500°C)
Test temperature	Normal temperature~200°C
Temperature control mode	PLC system sets program to adjust temperature and constant temperature time
Temperature display	0.1°C
Temperature control accuracy	±1°C
Standard weight	1000g±5g (including loading plate weight)
Heating method	Hot air circulation
Test steel plate	150(L)50(B)2(D)mm
Test steel plate materials	SUS304 mirrored stainless steel sheet
Standard test plate roughness	Mirror 50nm±25nm
Safety device	Power-off protection for over-temperature and electric overload
Machine material	Internal SUS304# stainless steel plate, external high-grade steel plate with baked paint
Inner box size	448350540mm (LWH)
Dimensions	960660960mm (LWH)
Weight	Approximately 320kg
Power supply	AC220V 2100W
