5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646

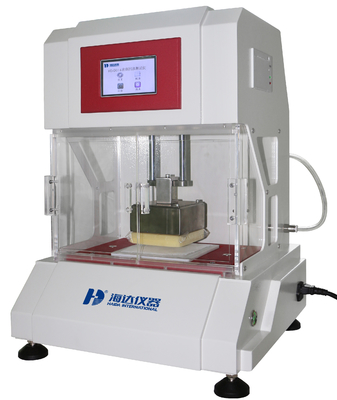

Large Image : 5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5025-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646

Description

Design Standards:	ASTM D646, JIS P8124, QB / T 1671	Operating Method:	Microcomputer Control
Minimum Readout:	0.1	Dropping Deviation:	±10mm
Load Resolution:	1/250,000	Testing Standards:	ISO, ASTM, TAPPI
Drop Test:	Corners, Edges , Faces Of Sample	Rated Bending Angle:	± 7.5 ° And ± 15 °
Usage:	Packaging Testing	Plywood Size:	H48in * D48in
Compressed Air:	6 Kg/cm2	Test Load Options:	55g, 175g, 275g
Drive Mode:	Power-driven	Load Cell Resolution:	1/250,000
Highlight:	ASTM D646 Impermeability Tester , Impermeability Tester , 5025-HD Automatic Impermeability Tester

5025-HD Automatic Diaper Liquid Impermeable Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Minimum Readout	0.1
Dropping Deviation	±10mm
Load Resolution	1/250,000
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Rated Bending Angle	± 7.5 ° and ± 15 °
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm2
Test Load Options	55g, 175g, 275g
Drive Mode	power-driven
Load Cell Resolution	1/250,000

Product Description

This tester is designed to determine the amount of diaper covering material that resists the rewetting of the liquid that has penetrated.

Compliance Standards

GB/T 24218.14 ISO 9073-14 WETBACK151.3-02

Key Features

Touch screen control with Chinese and English menu options
Built-in thermal printer for immediate test result documentation
High-precision sensor with windshield for accurate measurements (0.001g precision)
Pneumatic components for automatic test completion when placing simulated baby load
Stepping motor and driver control for precise speed regulation
Integrated calibration function for maintenance of accuracy

Technical Specifications

Simulated baby load weight and size	4000g±20g (10x10cm)
Test range and accuracy	300g/0.001g
Testing speed	5cm/(5±1)s
Placement and dwell time setting	1~999s
Tray size	170x170mm
Dimensions	Approx: 430 x 410 x 540 mm (LxWxH)
Weight	51kg
Power source	220V, 50Hz, 100W
