5024-HD Flexible Material Softness Tester for Packaging Testing

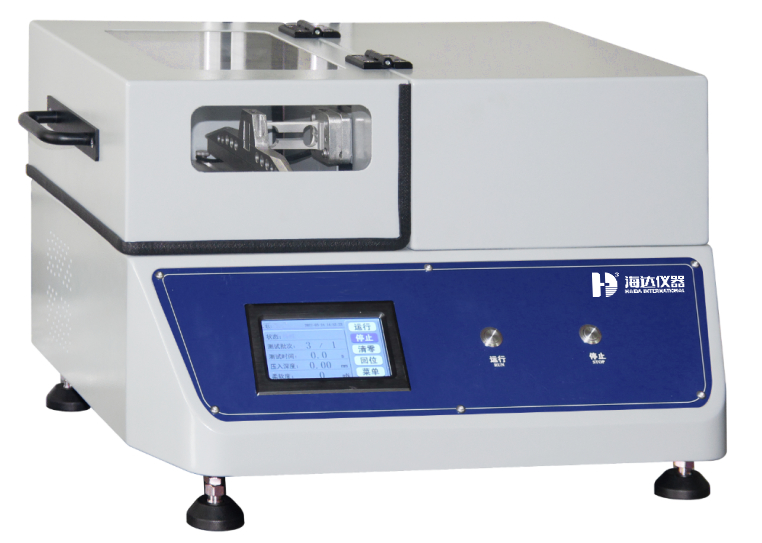

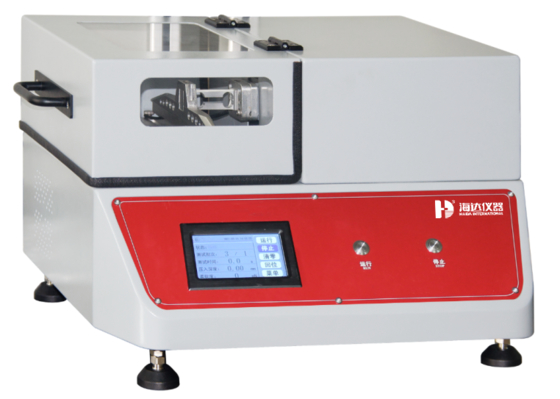

Large Image : 5024-HD Flexible Material Softness Tester for Packaging Testing

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5024-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5024-HD Flexible Material Softness Tester for Packaging Testing

Description

Design Standards:	ASTM D646, JIS P8124, QB / T 1671	Operating Method:	Microcomputer Control
Minimum Readout:	0.1	Dropping Deviation:	±10mm
Load Resolution:	1/250,000	Testing Standards:	ISO, ASTM, TAPPI
Drop Test:	Corners, Edges , Faces Of Sample	Rated Bending Angle:	± 7.5 ° And ± 15 °
Usage:	Packaging Testing	Plywood Size:	H48in * D48in
Compressed Air:	6 Kg/cm2	Test Load Options:	55g, 175g, 275g
Drive Mode:	Power-driven	Load Cell Resolution:	1/250,000
Highlight:	Flexible Material Softness Tester , 5024-HD Flexible Material Softness Tester , Softness Tester Packaging Testing

5024-HD Flexible Material Softness Tester

Product Attributes

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Minimum Readout	0.1
Dropping Deviation	±10mm
Load Resolution	1/250,000
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Rated Bending Angle	± 7.5 ° and ± 15 °
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm2
Test Load Options	55g, 175g, 275g
Drive Mode	power-driven
Load Cell Resolution	1/250,000

Product Description

The 5024-HD Flexible Material Softness Tester simulates hand softness perception, designed for testing various grades of toilet papers, fiber fabrics, and other sheet-like flexible materials.

Test Standards

GB/T8942, QB/T1060, ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, EDANA WSP 90.3...

Product Features

Advanced micro-sensor measurement and control system with digital circuit technology
Comprehensive functionality including measurement, adjustment, display, printing, and data processing
Color touch screen interface with Chinese/English language options and menu-driven operation
Built-in thermal printer for immediate test data output

Technical Parameters

Measuring range	0mN～1000mN
Accuracy	±1%
LCD display	4-digit direct reading
Print result	4 significant digits
Resolution	1mN
Travel speed	(0.5-3)±0.24mm/s
Total stroke	12±0.5mm
Insert depth	8±0.5mm
Displacement accuracy	0.1mm
Power supply voltage	220V±10%
Weight	20kg
Dimensions	500 x 300 x 300mm (LxWxH)
