5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics

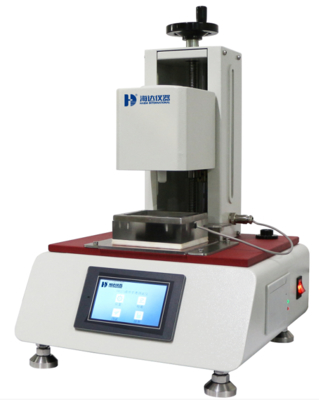

Large Image : 5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5023-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics

Description

Design Standards:	ASTM D646, JIS P8124, QB / T 1671	Operating Method:	Microcomputer Control
Minimum Readout:	0.1	Dropping Deviation:	±10mm
Load Resolution:	1/250,000	Testing Standards:	ISO, ASTM, TAPPI
Drop Test:	Corners, Edges , Faces Of Sample	Rated Bending Angle:	± 7.5 ° And ± 15 °
Usage:	Packaging Testing	Plywood Size:	H48in * D48in
Compressed Air:	6 Kg/cm2	Test Load Options:	55g, 175g, 275g
Drive Mode:	Power-driven	Load Cell Resolution:	1/250,000
Highlight:	5023-HD Diaper Liquid Penetration Tester , Liquid Penetration Tester , Nonwoven Fabrics Liquid Penetration Tester

5023-HD Diaper Liquid Penetration Tester

Product Specifications

Attribute	Value
Design Standards	ASTM D646, JIS P8124, QB / T 1671
Operating Method	Microcomputer Control
Minimum Readout	0.1
Dropping Deviation	±10mm
Load Resolution	1/250,000
Testing Standards	ISO, ASTM, TAPPI
Drop Test	Corners, edges, faces of sample
Rated Bending Angle	± 7.5 ° and ± 15 °
Usage	Packaging Testing
Plywood Size	H48in * D48in
Compressed Air	6 kg/cm2
Test Load Options	55g, 175g, 275g
Drive Mode	Power-driven
Load Cell Resolution	1/250,000

Product Description

Designed for liquid penetration testing of thin nonwoven fabrics used in sanitary products including sanitary napkins, diapers, and other covering materials.

Test Standards

FZ/T60017; GB/T24218.8; GB/T24218.13; GB/T24218.14

Key Features

Stainless steel construction for durability
Acid and alkali resistant induction electrode material
Automatic time recording and test result display
Color touch screen with Chinese/English interface
Test report generation for results analysis
Platinum electrodes for high sensitivity and corrosion resistance

Technical Parameters

Item	Description
Burette capacity	50ml
Control liquid flow rate	25ml flows in (3.5±0.25)s
Distance between funnel tip and sample	Adjustable
Substrate material	Plexiglass
Penetrating disc size	100 x 100 x 25mm
Sample size	125 x 125mm
Timer	0～9999.99s, accuracy: 0.01s
Total weight of penetrating disc	500g
Power supply	AC220V±10％ 50HZ
Power	50W
Weight	5Kg
Size	240 x 400 x 320mm
