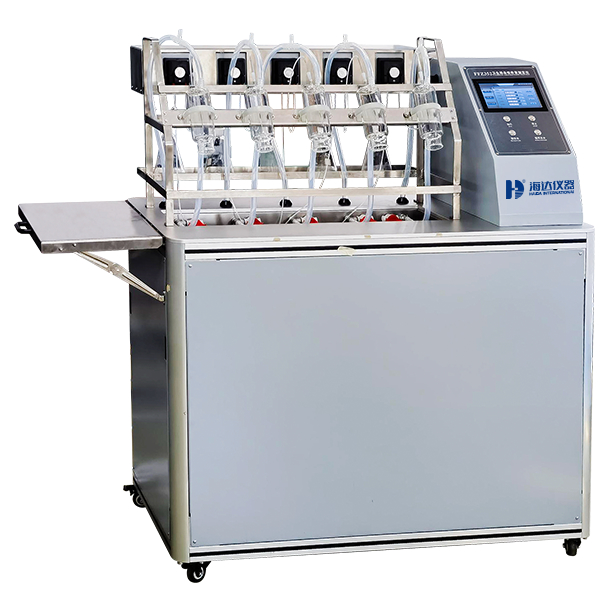

5014-HD Sanitary Tampon Absorption Tester with PLC Control

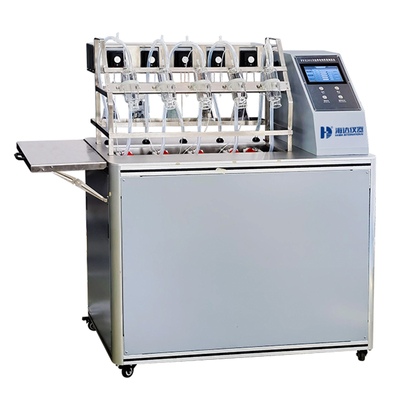

Large Image : 5014-HD Sanitary Tampon Absorption Tester with PLC Control

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5014-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5014-HD Sanitary Tampon Absorption Tester with PLC Control

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Feature:	Easy To Operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction Type Protection Device	Control:	PLC Control
Sensing Method:	Pressure Transmitter	Stop:	Stop Test
Force Resolution:	1/500000 Of The Maximum Test Force Fs	Vibration Mode:	Reciprocating
Highlight:	Absorption Sanitary Tampon Tester , High Precision Sanitary Tampon Tester , PLC Control Sanitary Tampon Tester

5014-HD Sanitary Tampon Absorption Tester

Product Overview

The Sanitary Tampon Absorption Tester simulates real-world tampon usage by dropping test solution into the absorption body at a controlled flow rate, measuring absorption capacity through pre- and post-test mass difference calculations.

Key Features

Color touch screen display with Chinese/English interface and menu operation
Real-time test time display with adjustable settings
32-bit STMicroelectronics multifunctional motherboard for core control
Peristaltic pump ensures uniform and stable liquid delivery
PLC control system with pressure transmitter sensing
Induction-type protection device for safety

Technical Specifications

Feature	Specification
Water Bath Capacity	6 L
Testing Stations	5 stations
Water Bath Temperature Range	-5°C to 100°C (±0.5°C accuracy)
Internal Circulation Pump Flow Rate	50 ± 2ml/h
External Circulation Pump Flow Rate	0-24000ml/h (adjustable)
Pumping Pipe Dimensions	6.4mm ID × 9.6mm OD
Needle Size	100mm length, 1.5mm ID, 1.8mm OD
Triangular Beakers	5 pieces included
Power Requirements	220V, 50Hz, 1kW
Dimensions (L×W×H)	800 × 500 × 1200mm
Weight	60kg

Compliance Standards

Complies with T/CNITA 09102-2018 Appendix E testing standards

Additional Images

Product Attributes

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display
Operation Method	Automatic
Product Type	Testing Instruments
Control System	PLC control
Sensing Method	Pressure Transmitter
Force Resolution	1/500000 of the maximum test force FS
Vibration Mode	Reciprocating
